Eurotech EUROLAM User Manual

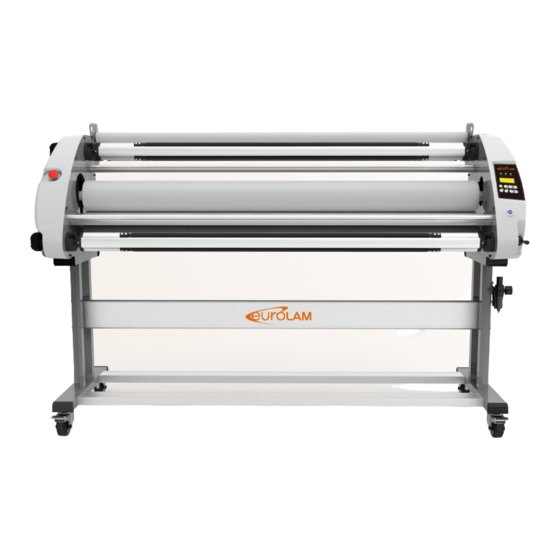

Roll to roll laminator
Hide thumbs

Advertisement

Quick Links

Download this manual
Roll to Roll laminator
User Manual
Free Call 1800 30 6161 | info@eurotech.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the EUROLAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eurotech EUROLAM

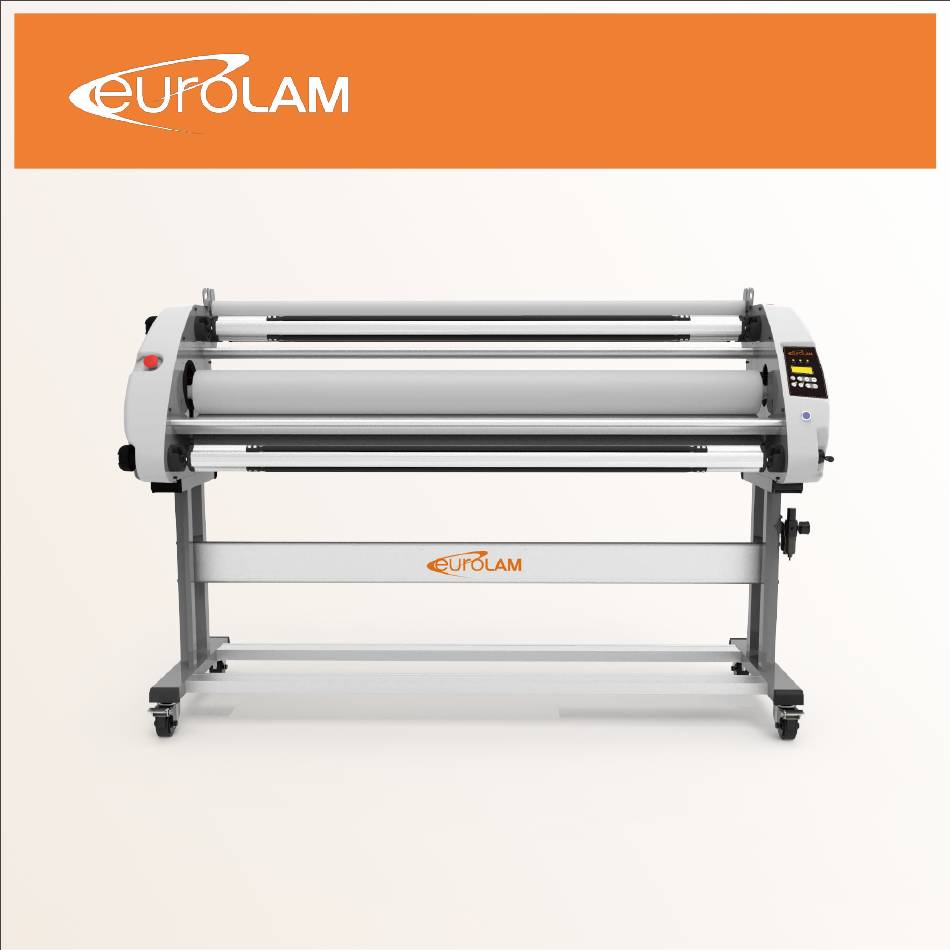

  • Page 1 Roll to Roll laminator User Manual Free Call 1800 30 6161 | info@eurotech.com.au...

  • Page 2: Packing Instruction

    PACKING INSTRUCTION 81cm The Package is made of Steel buckle box and Plywood board, free of Fumigation. The package dimensions: 225cm!76cm!81cm The box shall be disassembled by loosening the buckles around the edges. ! 225cm Tools Needed: Hammer Flat"Tip"Screwdrivers! 76cm Stand connection Beams Air compressor Fixed on the package bottom, bind by the fasten belt.
  • Page 3 ACCESSORY BOX CONTAINS: HEXAGON SOCKET BOLTS M-8×16 mm 12 pieces Round Shim !8×1.5mm 4 pieces Open end wrench 8mm 2 pieces Nuts M8 4 pieces Inner hexagon wrench No.3/4/5/6 1 piece/each Bolts Gasket 3.5cm×6cm 4pieces Fuse/15A 1 piece Fuse/1A 1 piece Oil-water Separator with fixing screws 1 piece Feet Pedal...
  • Page 4 INSTALL THE MAIN MACHINE We need four person to raise the main machine up from the package bottom. Take care for the holding position, better on the main frame/table. Just like the yellow points showed: Note to align the four fitting holes on top of stands when dropping.
  • Page 5 DIAGRAM OF WHOLE MACHINE • Take-up Rod • Liner Collecting Shaft • Upper Roller • Prints Loading Shaft • Control Panel • Handle Valve • Water-Oil Separator • Film Loading Shaft • Lower Roller • Tension Knobs • Finishes Collecting Shaft •...
  • Page 6 INSTRUCTION OF CONTROL PANEL/BACK PANEL ! Hot light: " lighting means the machine roller working under hot state ! Cold light: " lighting means the machine roller working under cold state ! Ready light: " lighting means the roller surface temperature has reached the set value ! Hot/cold switch: "...
  • Page 7 Further advises for installation: ,-$%.)//$.01)/%#).2$0#%-34$%0)%($%.5)#$%0)%0-$%63.-1/$7%% 8 '9%4)503:$%;<<%=%>%;?<%=%% 8 @A$B"$/.CD%+<%E%F<%GH%% 8 #0A$/:0-%)@%$5$.0A1.%."AA$/0D%I'%% ,-$%5).301)/%0)%J53.$%0-$%63.-1/$%6"#0%JA)41K$%$/)":-%#J3.$%0)%L)A27%M)/N0%@)A:$0%0-30%#J3.$%1#%35#)%/$$K$K%0)% 1/#$A0%3/K%A$6)4$%0-$%630$A1357%O5$3#$%.)/#1K$A%0-$%K16$/#1)/#%)@%0-$%J1.0"A$#%3/K%#-$$0#%"#$K7%% OA$J3A$%3%P30%5).301)/%#"10$K%0)%0-$%#1H$%)@%0-$%63.-1/$%3/K%35#)%.)/#1K$A%10#%3..$##)A1$#7%% Q))K%51:-01/:%R?<<%E%F<<%5"*S%1#%1/K1#J$/#3(5$%0)%)J$A301/:%3/K%631/031/1/:%0-$%63.-1/$%#3@$5C7%% ,-$%5361/30)A%-3#%0)%($%J53.$K%1/%3%.5)#$K%A))6%3/K%-3#%0)%($%JA)0$.0$K%3:31/#0%L$30-$A%$T$.07%% 8 O$A61##1(5$%A))6%0$6J$A30"A$D%&IU9%0)%?+U97%% 8 G"61K10C%A3/:$%J$A6100$KD%?<V%0)%I<V%% 9-$.2%0-30%0-$%$5$.0A1.35%#"JJ5C%.)AA$#J)/K#%L10-%0-$%63.-1/$%J$A@)A63/.$7%% W10-%.)//$.01/:%0)%0-$%$5$.0A1.10C%#"JJ5CX%0-$%5361/30)A%6"#0%($%$3A0-$K7%% ,)%.)//$.0%0-$%5361/30)A%L10-%$5$.0A1.%#"JJ5C%#C#0$6D% 8 Y/0$AA"J0%0-$%."AA$/0%#"JJ5C7%% 8 9)//$.0%0-$%.)//$.01)/%.3(5$%0)%3%#"103(5$%J5":%)A%K1A$.05C%0)%0-$%631/%R.3J#"5$%A315X%Z"/.01)/()*X%$0.7S7%%...
  • Page 8 CONNECT THE AIR COMPRESSOR Take out the air compressor from the package, install four units of • rubber feet. Take off the white PVC plug on the cooling fin block, twist the black • filter into the hole, then plug the blue tube into the hole at the bottom of the filter.
  • Page 9 Air compressor to compress the air. - 1~2 minutes later, the air compressor will stop automatically once the pressure reach around 0.8Mpa. - Twist the Red handle valve to the position shown, and the air pressure will be directed to to the Eurolam.
  • Page 10 Heating Elements installation Heating Elements The Eurolam can work normally without the heating element, it will just lack the heating function. The heating element is extremely fragile. We recommend two people during the installation, in order to assure proper handling.
  • Page 11 Step 5 Use the open-ended wrench to unscrew the outer cover of the heating tube and remove its flat gasket. Connect the end of the red heating wire with the screw of the heating element (marked 'hot A'), as shown in the picture.Put the flat gasket back in place, then press the wire terminal to the gasket and twist the outer screw back in place.
  • Page 12 Start Using the EuroLam Power on the laminator Push the rocker switch on the back of the machine case, from ‘0’ to ‘I’. The control panel screen will light up, showing the greeting words: Welcome. If the screen fails to light up, please check if any emergency stop is activated.
  • Page 13 Closed Opened Attention: Ensure the peg of the media shaft connects parallel to the opening of the EuroLam. After putting the media rod back in the bracket, please turn the bracket shell back to lock the shaft. This step is...
  • Page 14 Working schematic diagram There are two ways to roll film in the market: film outside rolls film inside rolls film back paper back paper film film rolling outside film rolling inside Accordingly, there are two types of film installing as below, please take more attention on the running direction:...

  • Page 15: Working Diagram

    Working Diagram Film Loading Position Film-liner Collecting Position Film Prints Loading Position Film Liner Film Liner Slitting Supporting Upper Upper Roller Roller Lower Lower Finish Finish Roller Roller Prints Prints Working Diagram without Slitting Working Diagram with Slitting...
  • Page 16 How to adjust the general pressure? The default air pressure value is 0.4 Mpa; You can adjust the pressure value according to your needs. Increasing the air pressure Pull the black knob, which will cause a slight unlocking sound. Then rotate the knob clockwise, and you'll start to set an increase of the air pressure gauge.
  • Page 17 Regularly adding lubrication oil could improve the stability of the air cylinder and lengthen its life. After using the EuroLam for some time, the water collection bottle will be full. Please push the outlet at the bottom of the bottle to drain the water out, which will cause a loud airflow sound.

  • Page 18: Troubleshooting

    If you have turned the valve up but the rolled hasn't moved: Please recheck if the air compressor's installation and connection was done properly. The EuroLam stop working, while the Auto function is on: Please check if any object or media is blocking the infrared safety device...

  • Page 19: Warranty

    All our products are manufactured to the highest quality standards. Our warranties are far from being complicated or difficult to handle - they provide you with complete peace of mind with that in mind, the EuroLam is covered for a full 3 years.
