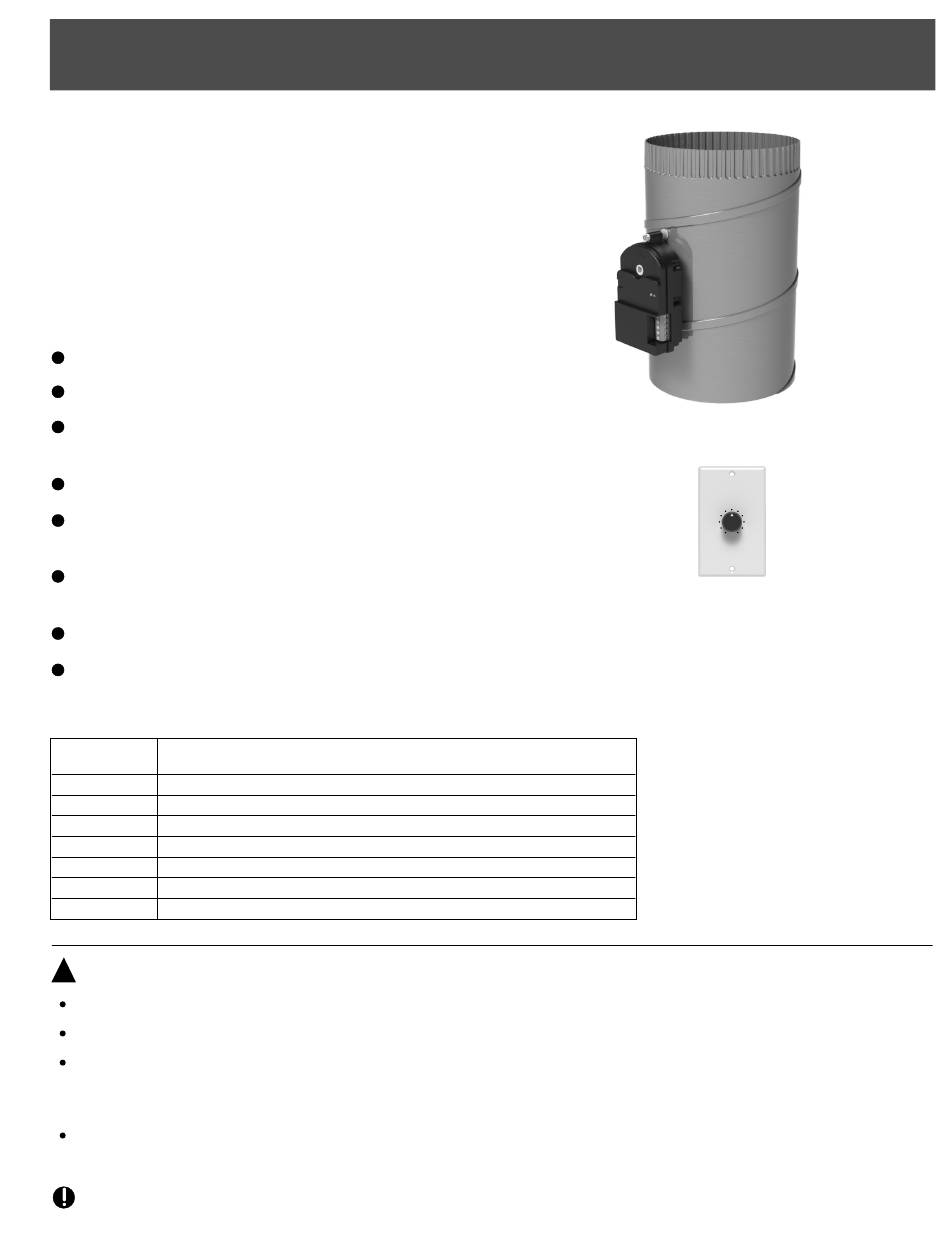

eControls R80DV Installer Manual

Direct Damper Controls

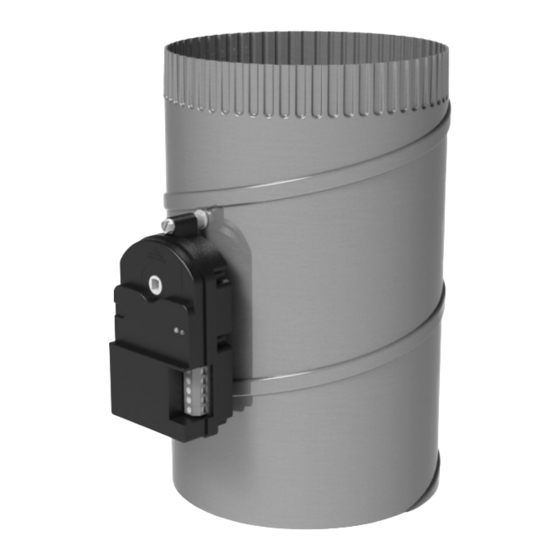

The R80DV damper is a variable position damper
controlled by a manual wall control, MWC. The
damper is used to control airflow from a ceiling
diffuser, register or grill.
The A80VP actuator has been tested to over 9
million cycles and will provide years of quiet and
reliable operation.
Features
Modulating
80 in-oz of torque
Green LED indicates fully open. Red LED
indicates fully closed.
24VAC, 2.6VA operating. 1VA holding.
Keyed shaft makes attaching actuator to damper
error free.
5/16-inch diameter, die cast shafts with nylon
bushings for quiet and reliable operation.
No internal gasket to restrict airflow.
5-Year Warranty.
Ordering Information
Damper
Model #
Description
R80DV-06 6" Round, Direct Airflow Control Damper, Variable Position
R80DV-07 7" Round, Direct Airflow Control Damper, Variable Position
R80DV-08 8" Round, Direct Airflow Control Damper, Variable Position
R80DV-09 9" Round, Direct Airflow Control Damper, Variable Position
R80DV-10 10" Round, Direct Airflow Control Damper, Variable Position
R80DV-12 12" Round, Direct Airflow Control Damper, Variable Position
R80DV-14 14" Round, Direct Airflow Control Damper, Variable Position
!
CAUTIONS
Read and follow all instructions carefully.
Read entire manual before installing products.
Follow all local electrical codes during installation. All
wiring must conform to local and national electrical
codes.
Use cautions when mounting components to surfaces
that may have concealed wiring beneath the surface.
Ensure that the installation process does not alter the
damper in a way that will cause interference to the blade
moving freely.
Installer Manual
Compatible Controls
Caution! Direct Damper Controls are not an
alternative to zoning. Installing too many controls on
a single HVAC system could cause airflow and
pressure problems.
Model R80DV
Rev A Jan 2018
Model R80DV
AIRFLOW
MIN MAX
Model MWC
