Summary of Contents for DYS DWA-2000A-SS

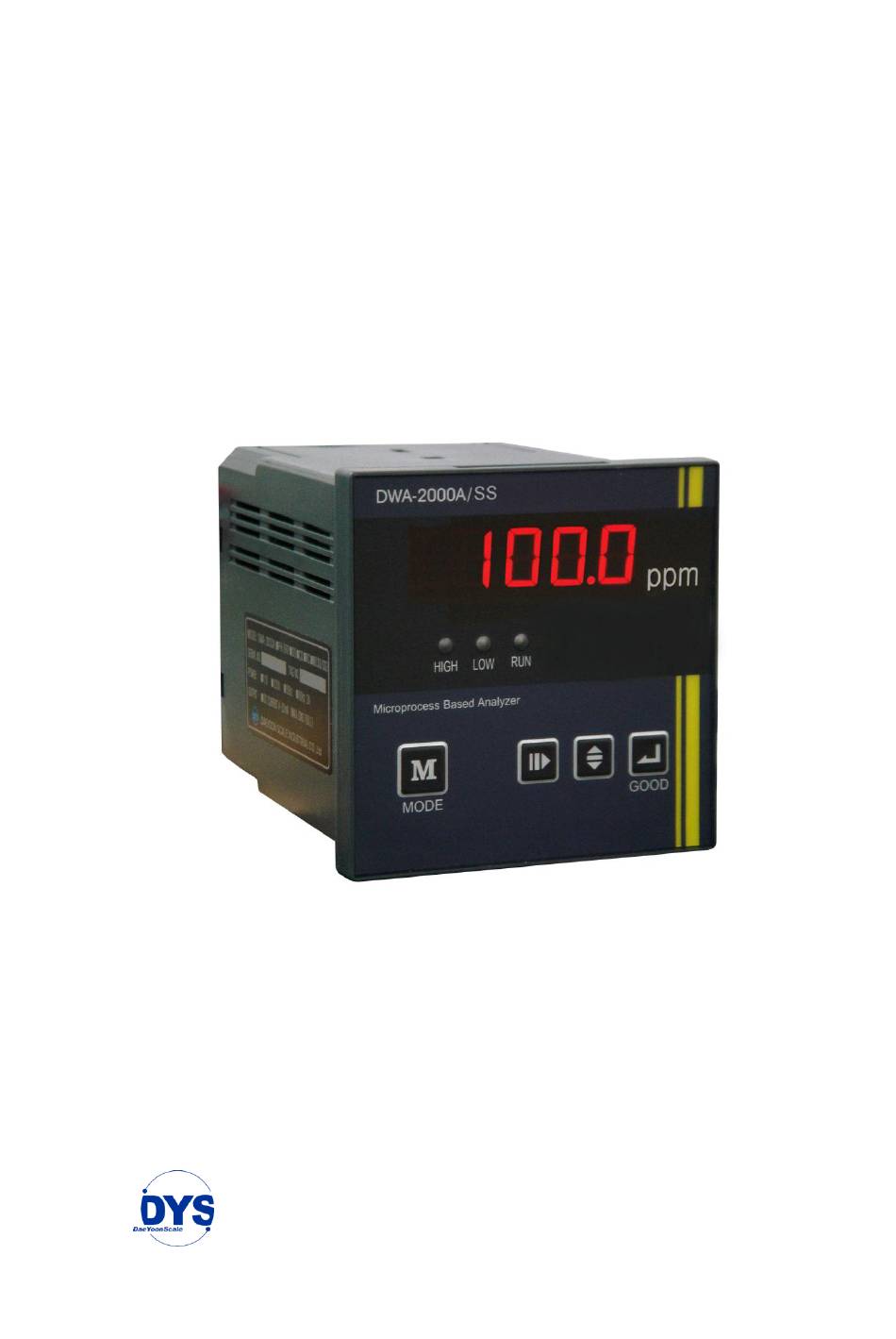

- Page 1 Operating & Instruction Manual On-line Suspended Solids Controller MODEL:DWA-2000A-SS Daeyoon Scale Industrial Co., Ltd.
-
Page 2: Table Of Contents
DWA-2000A-SS Suspended Solids Controller Contents 1. Introduction 2. Overview 3. Warnings and Cautions 1) Warnings 2) Cautions 4. Applicable processes 5. Characteristic Features 6. Specification 7. Guide to Functions of Keys 8. Function Setting of Mode 9. Function Diagram of Mode 10. -
Page 3: Introduction
Suspended Solids Controller 1. Introduction Our DWA-2000A-SS, designed to serve the purpose of an efficient operation of a wide-area water supply system as well as of the elimination of its repair and maintenance works, is an instrument to measure SS density at processes in a water supply system, sewage and waste water system, production line, and so on. -
Page 4: Applicable Processes
DWA-2000A-SS Suspended Solids Controller Warning C ￭ Be noted that the accuracy and reliability of measured figures are not guaranteed if the procedures and methods stated in this instruction manual are not duly observed, in which case there could result in user’s safe accident and/or mechanical failure. -
Page 5: Specification
Suspended Solids Controller 6. Specification Controller - Code No. : 413120001SS - Model : DWA-2000A-SS - Channel : Single channel - Range : 0 ~ 2,000 mg/L or user spec’. - Meas. Method : IR LED 880nm Scattering - Power : AC 110/220V, 50/60Hz, 3VA - Accuracy : ±... -
Page 6: Guide To Functions Of Keys
DWA-2000A-SS Suspended Solids Controller 7. Guide to Functions of Keys : Entry into Calibration Mode and Change of settings : Entry into Set Mode, Change of data digits, and/or Manual cleaning : Change of pre-established data : Confirmation of input after correcting data 8. -
Page 7: Function Diagram Of Mode
DWA-2000A-SS Suspended Solids Controller 9. Function Diagram of Mode Delay time after cleaning (sec) ZERO calibration Cleaning duration (sec) (Save) calibration of SS SPAN Cleaning period (min) Setting of HIGH reference value ATC temperature (correction) for analog output Setting of LOW reference value... -
Page 8: Calibration
DWA-2000A-SS Suspended Solids Controller 10. Calibration 1) ZERO Calibration Caution • Make sure whether any flaw or defect is present on the surface of the sensor after the product is unpacked; if any, feel free to notify us immediately. • Be sure to execute calibration before operation to adjust the electric characteristics of the sensor and the instrument. -
Page 9: Measurement Of Ss
DWA-2000A-SS Suspended Solids Controller 11. Measurement of SS Caution ￭ Be sure to perform calibration before installation When power is initially supplied, SS density values will appear real time on the FND. When the RUN lamp blinks, it indicates that analog output (4~20mA) is generating When it does not blink, the analog signal is not being produced. -
Page 10: Setting Of Miscellaneous Functions
DWA-2000A-SS Suspended Solids Controller 3) Adjustment of magnitude of electrode temperature compensation This function should be carried out when a correction is needed according to the temperature specification of the electrode. The C-3 Mode will be available when the key is pressed five times The value will blink when the key is pressed. - Page 11 DWA-2000A-SS Suspended Solids Controller 1) ZERO compensation. This function carries out % compensation to a measured result. The S-1 mode will appear when the key is pressed six times. The value will blink when the is pressed. Input a value using keys.
- Page 12 DWA-2000A-SS Suspended Solids Controller You can choose the r-H (upper limit) by pressing the key nine times or the r-L (lower limit) by pressing it ten times The value will blink when the is pressed. Input a value using keys.
-
Page 13: Installation
DWA-2000A-SS Suspended Solids Controller You can choose CL1 (cleaning period) by pressing the key thirteen times, CL2 (cleaning duration/ time) by pressing it fourteen times, or CL3 (delay time after cleaning) by pressing it fifteen times. The value will blink when the is pressed. -
Page 14: External Appearance
DWA-2000A-SS Suspended Solids Controller After completing the wiring as instructed, check each connection again before supplying power. 16. External Appearance 17. Type of problems and troubleshooting Symptoms Causes Actions • accumulation of foreign materials on the •Cleaning of the sensor... -
Page 15: Maintenance Of The Sensor And Precautions
DWA-2000A-SS Suspended Solids Controller • Change in flow rates •Change in the sensor installation location • Use of a relay box •Contact with the maker of the Instrument • Re-calibration according Displayed values are either too • Poor calibration instruction high or too low •... -
Page 16: Quality Assurance And After-Services
DWA-2000A-SS Suspended Solids Controller keeping the instrument. In case a relay box is used to extend the cable, make sure of insulation, wiring, contamination, humidity and so on. Since this instrument is likely to be affected characteristically by static induction current from outside, the grounding is very important for the prevention of factors that hinder the measurement with the instrument. - Page 17 DWA-2000A-SS Suspended Solids Controller user or damage or failures through act of God, even during the guaranty period, should be borne by the user (2) Costs and expenses for after-services resulting from mechanical failures after the expiry of the guaranty period are at user’s account, based on types of services provided, as specified in the company regulation...
