LXI 60-850 Manual

LXI Fiber Optic Multiplexer
• 8 Channel, Dual 4 Channel,
Dual 8 Channel, 16 Channel or 32 Channel Optical MUX
• MEMS Based Actuation For Long Life and Fast Operation
• Single-Mode or Multi-Mode Fiber Support
• Loop-Thru Option For Easy MUX Expansion
• Compact 1U Form Factor
• LXI Standard 1.4 Compliant
• 3 Year Warranty
The 60-850 and 60-851 are LXI conformant fiber optic multiplexers that use MEMS
switching technology to ensure fast and reliable switching of single-mode (60-850)
or multi-mode (60-851) optical signals being carried on fiber connections. The
60-850/851 is available with a variety of connector options and in a variety of
multiplexer arrangements.
Multiplexer configurations offered are single 8 channel, dual 8 channel, single
16 channel and single 32 channel. Each configuration can be supplied with FC/APC,
SC/PC, LC or SC connector types – allowing users to select exactly the model that fits
their connection standard. A dual 4 channel version is also available, supporting only
multi-mode fiber and with LC connectors. Multiplexer versions are also available with
a Loop-Thru connection allowing easy expansion.
All configurations use a MEMS based mirror system that ensures fast switching, long
operating life and repeatable insertion loss and isolation characteristics.
MUX Control
The 60-850/851 is fully LXI conformant
through a 1000Base-T Ethernet
connection and is supplied with IVI
drivers and Direct I/O drivers to allow
programmatic control of the optical
switches. A built in soft front panel
can be accessed through any web
browser to provide manual control of
the multiplexers in a simple and intuitive
way. Controlling the 60-850/851 at long
distances could not be simpler, and
control can even be gained using links
including wireless access points for true
control mobility.
32-Channel
Multiplexer
Com

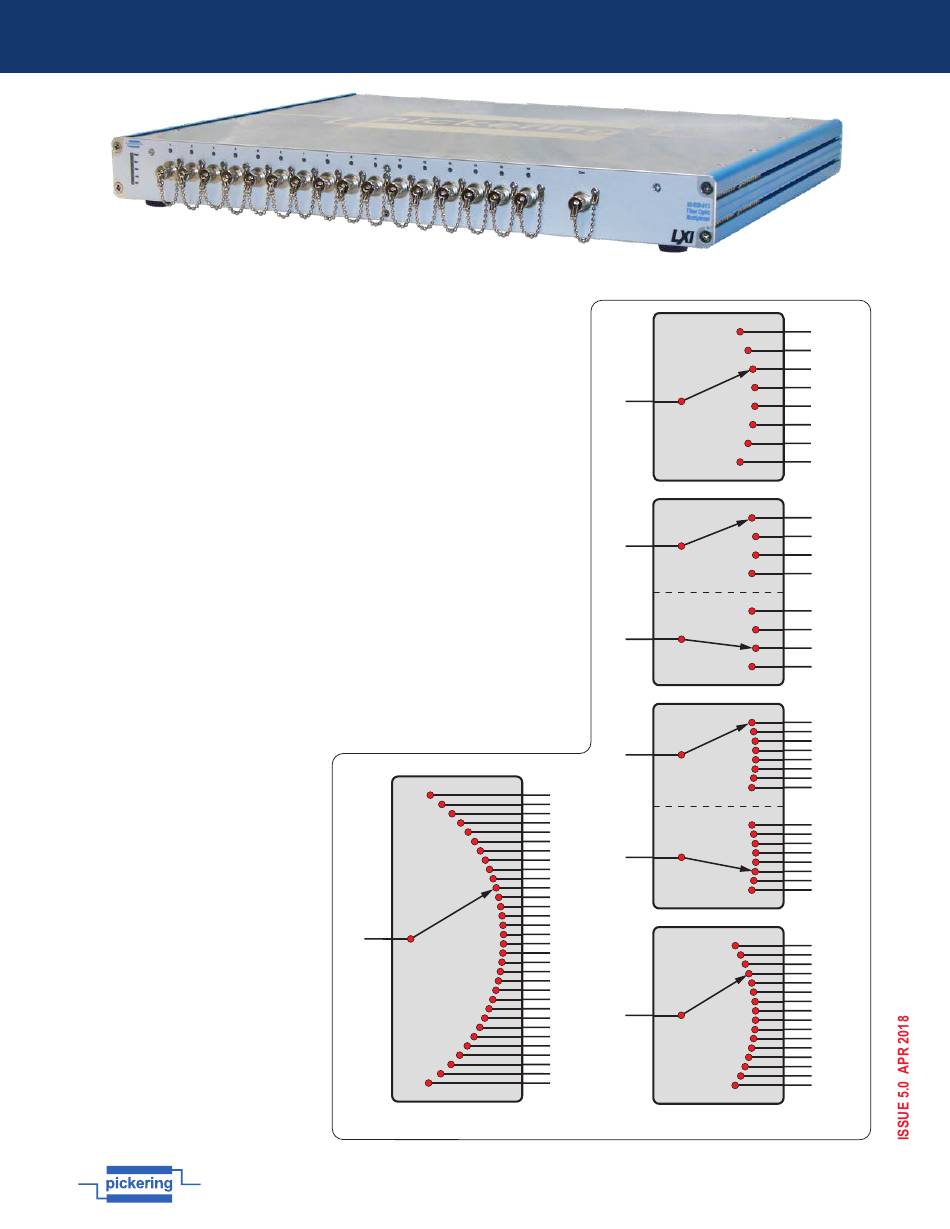

Functional Diagrams of the Optical 4, 8, 16 and 32 Channel MUX Configurations
8-Channel
Multiplexer
Com
4-Channel
Multiplexer
Com 1
4-Channel
Multiplexer
Com 2
8-Channel
Multiplexer
Com 1
Ch 1
Ch 2
Ch 3
8-Channel
Ch 4
Multiplexer
Ch 5
Ch 6
Com 2
Ch 7
Ch 8
Ch 9
Ch 10
Ch 11
Ch 12
Ch 13
Ch 14
Ch 15
Ch 16
16-Channel
Ch 17
Multiplexer
Ch 18
Ch 19
Ch 20
Ch 21
Ch 22
Ch 23
Com
Ch 24
Ch 25
Ch 26
Ch 27
Ch 28
Ch 29
Ch 30
Ch 31
Ch 32
pickeringtest.com
60-850/851
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Ch 6
Ch 7
Ch 8
Ch 1.1
Ch 1.2
Ch 1.3
Ch 1.4
Ch 2.1
Ch 2.2
Ch 2.3
Ch 2.4
Ch 1.1
Ch 1.2
Ch 1.3
Ch 1.4
Ch 1.5
Ch 1.6
Ch 1.7
Ch 1.8
Ch 2.1
Ch 2.2
Ch 2.3
Ch 2.4
Ch 2.5
Ch 2.6
Ch 2.7
Ch 2.8
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Ch 6
Ch 7
Ch 8
Ch 9
Ch 10
Ch 11
Ch 12
Ch 13
Ch 14
Ch 15
Ch 16
