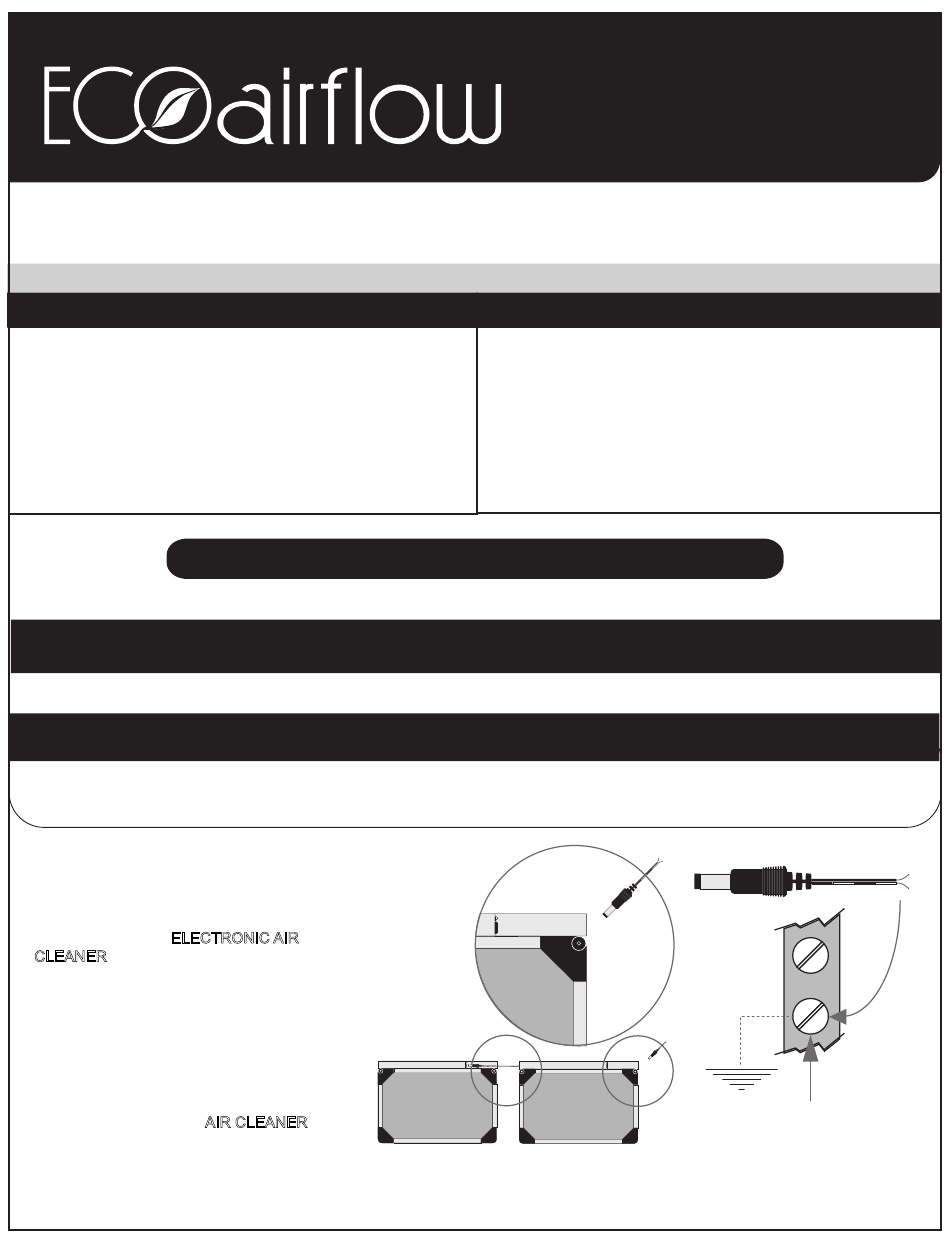

Eco Airflow 2300 Quick Start Manual

Operation, Installation & Maintenance Instruction Guide
Please complete the information below and leave this brochure with your customer after installation is complete.
IMPORTANT WARRANTY AND MAINTENANCE INFORMATION ON THE REVERSE SIDE.
INSTALLED BY:
Contractor Name & Phone No.
Please read carefully BEFORE INSTALLING the Model
This unit is designed to operate from a SUPPLY OF 24 VOLTS AC AT 2VA
DO NOT CONNECT TO 110 VAC POWER!
Connecting the Model 2300 to a higher voltage than specified may cause damage and/or failure of
equipment. 110 TO 24 VOLT adapters or transformers are available through your local wholesaler.
ELECTRICAL HOOKUP
Most forced air heating or cooling systems, or
heat pumps, have an internal 24 V AC power
source to which the ELECTRONIC AIR
CLEANER can be safely connected without
overloading other circuits.
CHECK if the system is protected by a low
voltage fuse and make sure connections are
made on the FUSED SIDE. If no fuse is
present, a low-voltage in line fuse should be
installed.
BEFORE connecting the AIR CLEANER to
this power source, POSITIVELY identify that
this is a 24 V (max 30 V) AC source, and not
some other voltage. This is usually best
DEALER INSTALLATION GUIDE
DEALER INSTALLATION INSTRUCTIONS
IMPORTANT!
TANDEM CONNECTION
PRODUCT INFORMATION:
________________________________________
___________________________________
_________________________________________
2300
INDIVIDUAL CONNECTION
( if required)
2300
MODEL
2 " E l e c t r o n i c A i r C l e a n e r
Model 2300
MODEL:
FILTER SIZE:
INSTALLATION DATE:
Electronic Air Cleaner.
24 V AC
POWER
(NOT
SUPPLIED)
NOTE: IF ONE TERMINAL OF POWER
SOURCE IS GROUNDED, HOOK THE
WHITE STRIPED WIRE TO THIS TERMINAL
SOLID BLACK WIRE
WHITE STRIPED WIRE
