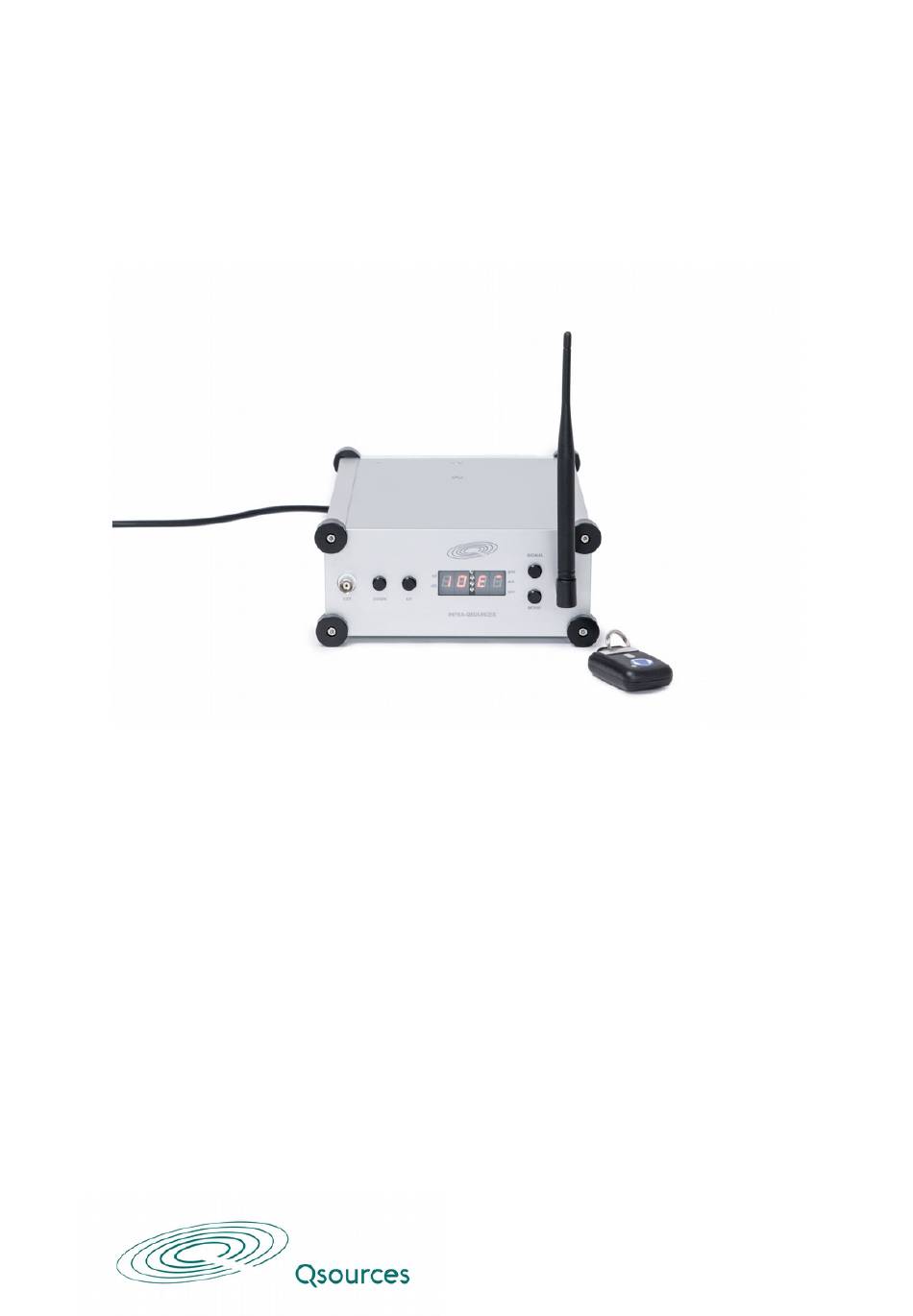

INFRA-QSOURCES User instruction Qam measurement power amplifier Updated: 190305 V4 LMB, PJGL, Qsources BVBA Content: Intended application 2. Positioning, connections and powering Basic operation 4. Low frequency tuning 5. Prevent electrical damage 6. Prevent mechanical damage 7. Safety instruction Specifications 9. -
Page 2: Intended Application
When used in an environment >30degrees - <50 degrees Celsius, the total operating time may be limited. In such cases it is advised to turn the amplifier off when not being used or to add external cooling for a longer operation time. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA... - Page 3 100 meter control distance will not be reached. Or in extremely well shielded cases the re- mote may not work at all as the metal structure will block its signal. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
- Page 4 The second LED down indicates an overheating of the amplifier. This may occur after long periods of stand-by in warm environments or when the amplifier is covered by an other object hampering the normal cooling. The amplifier will restart automatically when www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
-
Page 5: Low Frequency Tuning
“”E”” setting, and take a note on which third octave bands need level ad- aptation. You will notice that the output level in “”E”” is always 6dB lower than the “”L”” and “”A”” settings. This is needed for protection of the sound source. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA... - Page 6 “”L”” after the tuning. But the levels per band are stored and accessible by selecting one of the “E” signals. When the amplifier is turned off, or its mains supply is removed, it will retain the band settings. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
-
Page 7: Prevent Electrical Damage
Amplification setting accuracy: +- 0.5 dB Maximum voltage output: 150 Volt pk-pk Maximum current output: 20 Ampere RMS Maximum continuous power output: up to 1000 Watt RMS** Minimum load impedance: 2 Ohm www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA... -
Page 8: Questions And Answers
Qsources is not liable for any damage directly or indirectly resulting from the use of the amplifier, regardless whether the damage occurs to the customer, to prop- erty of the customer, to a third party or to the property of a third party. - Page 9 Audible distortion on external signals, only in the case when the overload LED is activated, it indicates that the maxiumum level of linear operation on this external signal is exceeded. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
-
Page 10: Declaration Of Conformity
Declaration of conformity Product: Infra Qsources measurement power amplifier Model: Hereby is certified that the above mentioned product complies with the following standards: EN 60065 EN 61010-1 Responsible for this declaration is the producer Qsources BVBA Ketelwinning 38 3290 Diest Belgium Declared by P.
