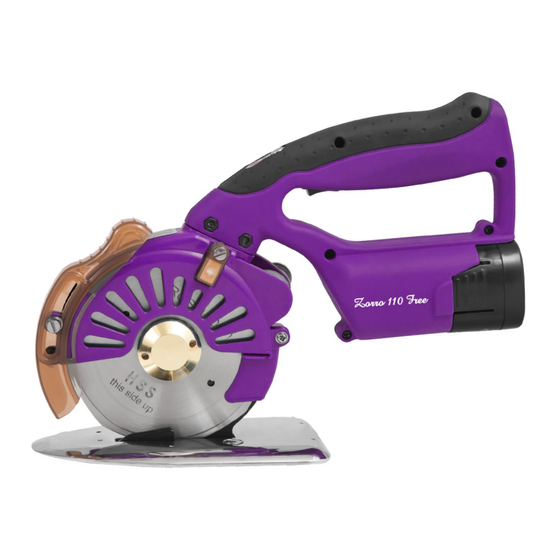

- Page 1 Operation manual & parts list for CORDLESS ROUND KNIFE AC SERVO DIRECT DRIVE Model Zorro 110 Free...
-
Page 2: General Safety Precautions
TEXI Zorro 110 Free operation manual GENERAL SAFETY PRECAUTIONS To minimize the risk of fire, electric shock, or injury, observe the following precautions: - Keep the workplace clean. - Pay attention to the knife’s work environment; do not subject it to atmospheric conditions. - Page 3 TEXI Zorro 110 Free operation manual Technical specification Knife Size Diameter 110 mm Cutting height 32 mm Max Power 150 W Noise <55dB Weight 1,5 kg 4 speed 800, 1000, 1200, 1600 r.p.m. Battery capacity 2500 mAh Voltage 16.8V Set with 2 pcs of 8-curves knife blades, diameter 110 mm.
- Page 4 When power is on, red light (2) on the upper side of the handle will be on as well. Speed adjusting. Cutting machine TEXI Zorro 110 Free can work at 4 different speeds: 800, 1000, 1200, 1600 r.p.m. To choose required speed use multifunctional button (single press) which is located on the top of the handle (2).
- Page 5 TEXI Zorro 110 Free operation manual Cutting Prepare working place properly as well as material which you are going to cut. Adjust height of the front protective blade guard (1) by pushing it up. Be sure that guard is on the height which allows you to cut required layers of material, but still covers the blade on the rest of the surface.
- Page 6 TEXI Zorro 110 Free operation manual Blade replacement CAUTION: Before performing any technical adjustments (e.g. changing the blade, grinding stones etc.), power must be switched off and lithium battery removed from the cutting machine. 1. Remove the three bolts (1) locat- ed on the shields and then remove the shield.
- Page 7 TEXI Zorro 110 Free operation manual Grinding wheel replacement CAUTION: Before performing any technical adjustments (e.g. changing the blade, grinding stones etc.), power must be switched off and lithium battery removed from the cutting machine. Hold the grinding wheel by your hand.
- Page 8 TEXI Zorro 110 Free operation manual Inspection and maintenance Use only well sharpened blade. Any damage of the blade can affect work performance. Greasing Every 40 hours. Open the cup and give the small quantity of grease through the oil pot.
- Page 9 TEXI Zorro 110 Free operation manual Parts drawing...
- Page 10 TEXI Zorro 110 Free operation manual Parts list Handle Oil felt Knife oiler 16.8V rechargeable battery Sharpener frame Pressure spring Screw Pressure spring M3*10 screw Grinding wheel Blade pressure plate Board M3*10 screw Terminal plate Inner hexagonal screw Socket connector...
-
Page 11: Ce Declaration Of Conformity
Swadzim, ul. Poznańska 54 62-080 Tarnowo Podgórne, Poland We declare, that the following product: Round knife ac servo direct drive model Zorro 110 Free (RCS-110B) With this declaration relates, complies with following directives: Machinery Directive 2006/42/EC Low Voltage Directive 2014/35/EU...
