Summary of Contents for FAST CLEAN Fury RSW55

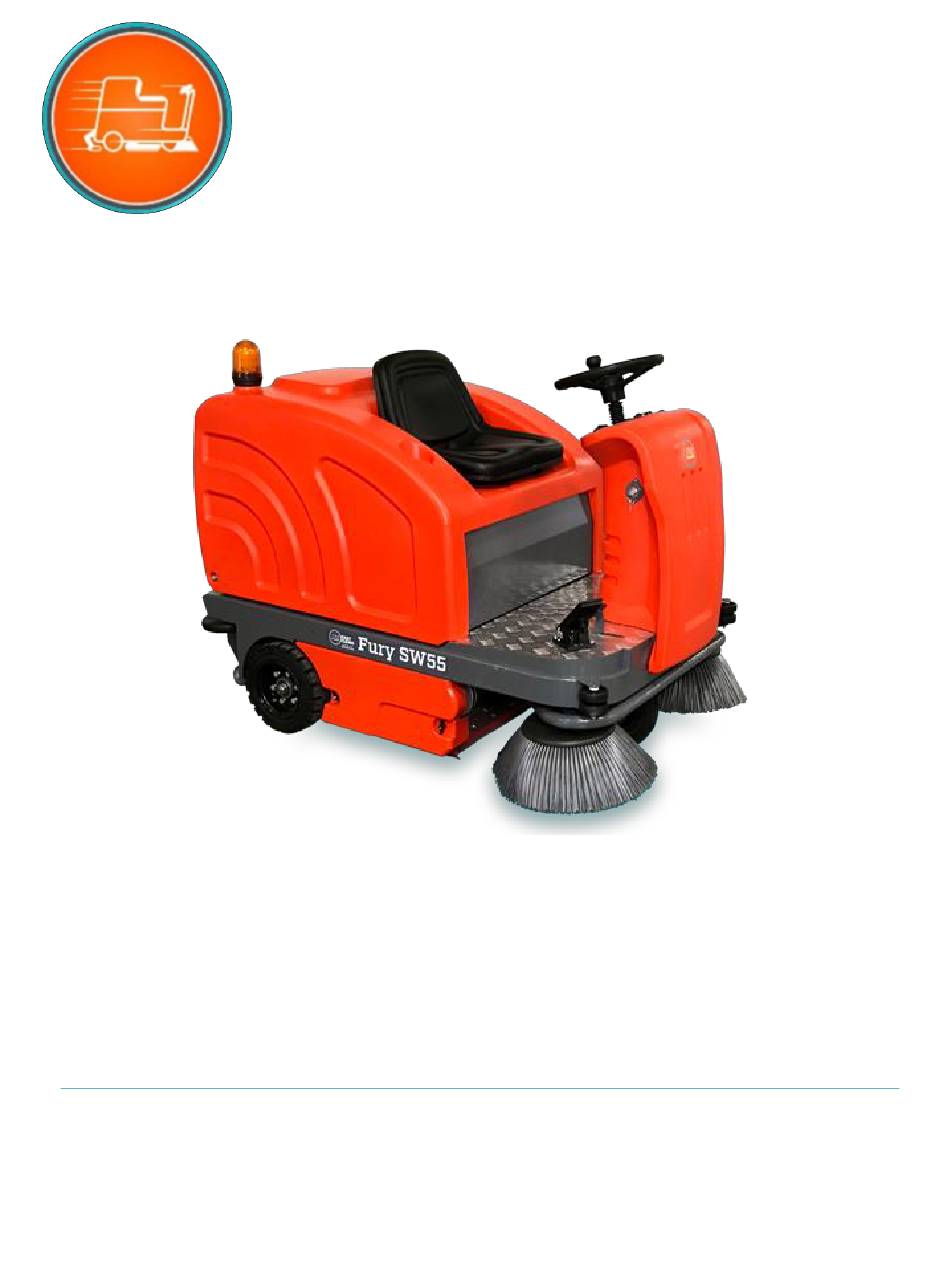

- Page 1 FAST CLEAN OWNER’S MANUAL Fury RSW55 Battery Powered Automatic Indoor/Outdoor Rider Sweeper FAST CLEAN, INC. 210 Southwest Ave. Tallmadge OH 44278 (833) 801-2358 sales@fastclean.com www.fastclean.com...
-
Page 2: Table Of Contents
Fury RSW55 Before operation or use of this machine, please carefully read this manual. Table of Contents When ordering the replacement parts, please refer to the Precautions ............... 3 spare and accessory parts manual attached to the machine. Before matching parts or accessories, please Basic Safety Instructions ........... -
Page 3: Precautions
Your crate should contain: Turn off machine and disconnect battery wiring before performing maintenance. Avoid moving parts. Do not wear Main unit: 1 Fury RSW55 Sweeper loose clothing that may catch in the machine. 8V batteries: 6 wet, maintenance free batteries ... -
Page 4: Battery Installation & Charging
Fury RSW55 4. Carefully remove the machine from the pallet with the If equipped with digital gauge (0-100%). To extend the assistance of others. Warning! Do not directly drive the battery life, it is best to recharge the batteries when the machine off the pallet without using a ramp. -
Page 5: Machine Diagram
Fury RSW55 □ Check the condition of the side brooms and main cable of the charger from the socket first. To avoid electric arc discharge, please unplug the AC power cord first. sweeper brush. Replace if they are worn out or damaged. -
Page 6: Operating The Machine
Fury RSW55 3. Turn on side brooms and main sweeping brush. This will 10. In order to prolong the life of the side brooms, do not cause side brooms and main brush to lower into working run them unless you are sweeping along a wall or other position. -
Page 7: Maintenance - Main Brush
Fury RSW55 Side brooms can be adjusted lower so that the bristles will To adjust the main brush lower, please observe the make contact with the ground. To lower the side brooms, following procedures: please observe the following procedures: 1. Important: Be sure power is off before performing any maintenance on the machine! 2. -
Page 8: Maintenance - Main Brush Drive Belt
(about 7 hours). Maintenance – Internal Drive System (See photo on top right): The main drive system of the Fury RSW55 includes the motor, gap bridge differential gear case, and clockwise/ counter-clockwise change-over switch, which causes the sweeper to run forward or backward. The accelerator pedal controls the speed of the machine (0 - 3.7 mph). -
Page 9: Maintenance - Dust Bin & Dust Filter
Fury RSW55 The dust filter prevents debris from escaping during 1. Park the sweeper on level ground, and turn off the sweeping. To replace a damaged dust filter, remove the power with the switch on the main column. wing nuts (11) and take out the old filter. Install the new filter in the same position (approx. -
Page 10: Specifications
Fury RSW55 Machine Specifications Specification Unit Fury RSW55 Voltage 24 (4 x 6V) Battery Capacity Run Time 7 (approx.) Cleaning Efficiency 53,800 Maximum Floor Grade Sweeping Path Dust Bin Capacity 34.3 Drive Motor 1.61 Main Brush Motor Side Brush Motors .13 (x 2) -
Page 11: Maintenance Schedule
Fury RSW55 Drive motor chain is broken. Replace drive motor chain. The drive motor will not advance or back up when working. The pedal governor is damaged. Replace the pedal. The control switch is damaged. Replace the switch. The controller is damaged. -
Page 12: Warranty Card
Fury RSW55 Warranty Card (please fill out and return to dealer) Name Phone # Address City State Purchase Date Invoice # Model # Serial # Local Dealer Local Dealer City/State Warranty provided with purchase invoice.
