S2W232E-ESP32 Quick reference v. 1.0

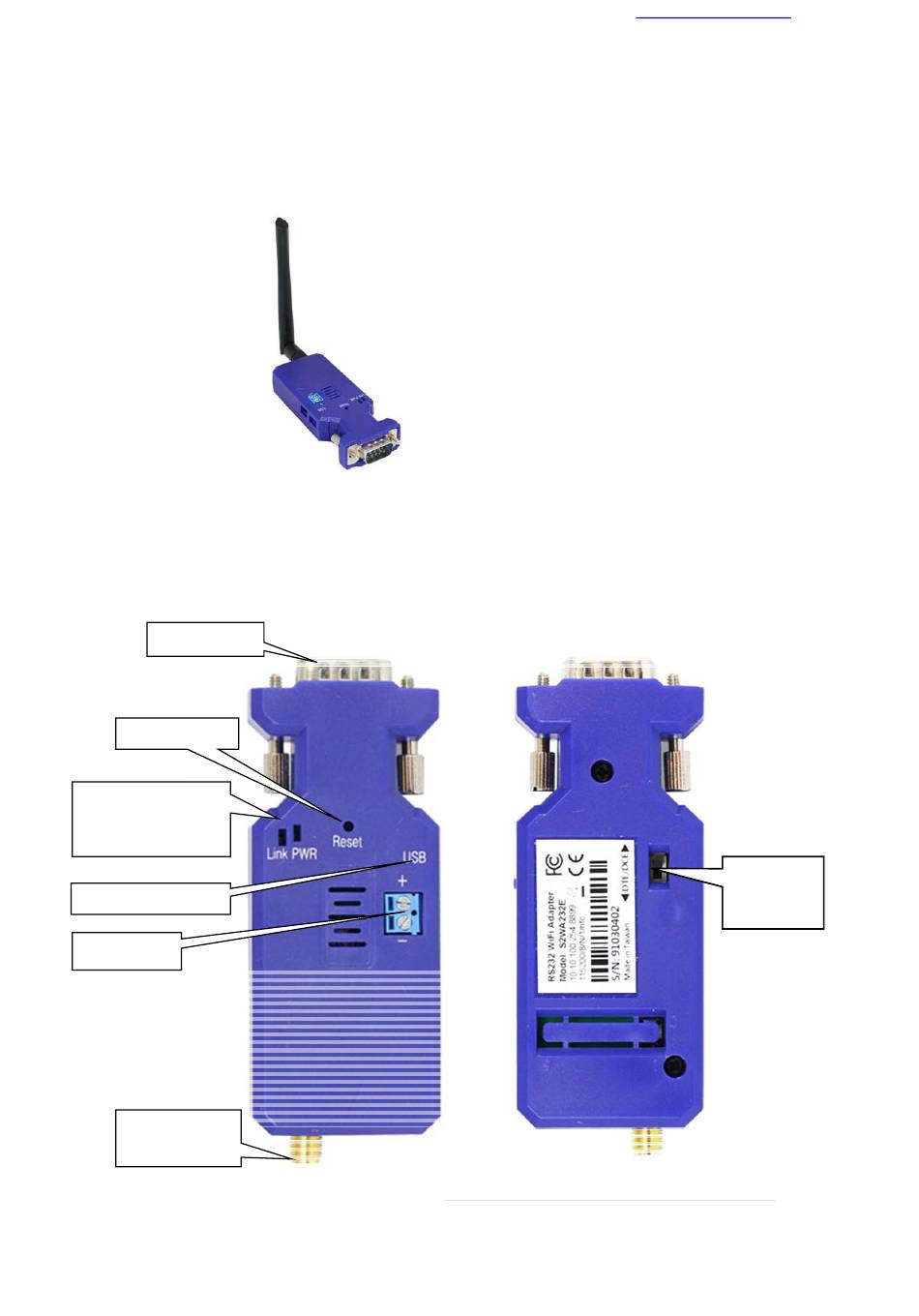

DB9 (Male)
Reset button
Indication LEDs:
Link: Blue
PWR/Data: Red
Mini USB (Power)
5 - 40 VDC
SMA antenna
connector
Quick reference sheet for
WiFi to RS-232 adapter S2W232E-ESP32
www.usconverters.com
Package Contents:
•
Serial WiFi adapter
•
2 dBi dipole antenna
•
Mini USB Cable (for power)
•
Quick reference sheet
▲ DCE
▼ DTE
1
Advertisement
Related Manuals for Usconverters S2W232E-ESP32
Summary of Contents for Usconverters S2W232E-ESP32
- Page 1 S2W232E-ESP32 Quick reference v. 1.0 www.usconverters.com Quick reference sheet for WiFi to RS-232 adapter S2W232E-ESP32 Package Contents: • Serial WiFi adapter • 2 dBi dipole antenna • Mini USB Cable (for power) • Quick reference sheet DB9 (Male) Reset button...
-
Page 2: Specifications
S2W232E-ESP32 Quick reference v. 1.0 www.usconverters.com SPECIFICATIONS Part number S2W232E-ESP32 Processor ESP32-D0WDQ6-V3 by Espressif Xtensa® 32-bit LX6 microprocessor • 448 KB ROM • 520 KB SRAM • 16 KB SRAM in RTC Operating system VCOM software for: Windows 10, Windows 8/8.1, Windows 7 (32/64-bit). - Page 3 S2W232E-ESP32 Quick reference v. 1.0 www.usconverters.com Default COM port settings Baud rate: 9600 bps Data bit: 8 Parity: none Stop bit: 1 Flow control: none Default network settings Adhoc mode (Simple AP), DHCP disabled...
- Page 4 S2W232E-ESP32 Quick reference v. 1.0 www.usconverters.com Reset button To reset the adapter to factory defaults, press and hold the reset button through the small hole on the top of the adapter for more than 5 seconds. male pin configuration Signal...
- Page 5 S2W232E-ESP32 Quick reference v. 1.0 www.usconverters.com Screenshots Federal Communications Commission (FCC) Statement RADIO FREQUENCY INTERFERENCE STATEMENT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
