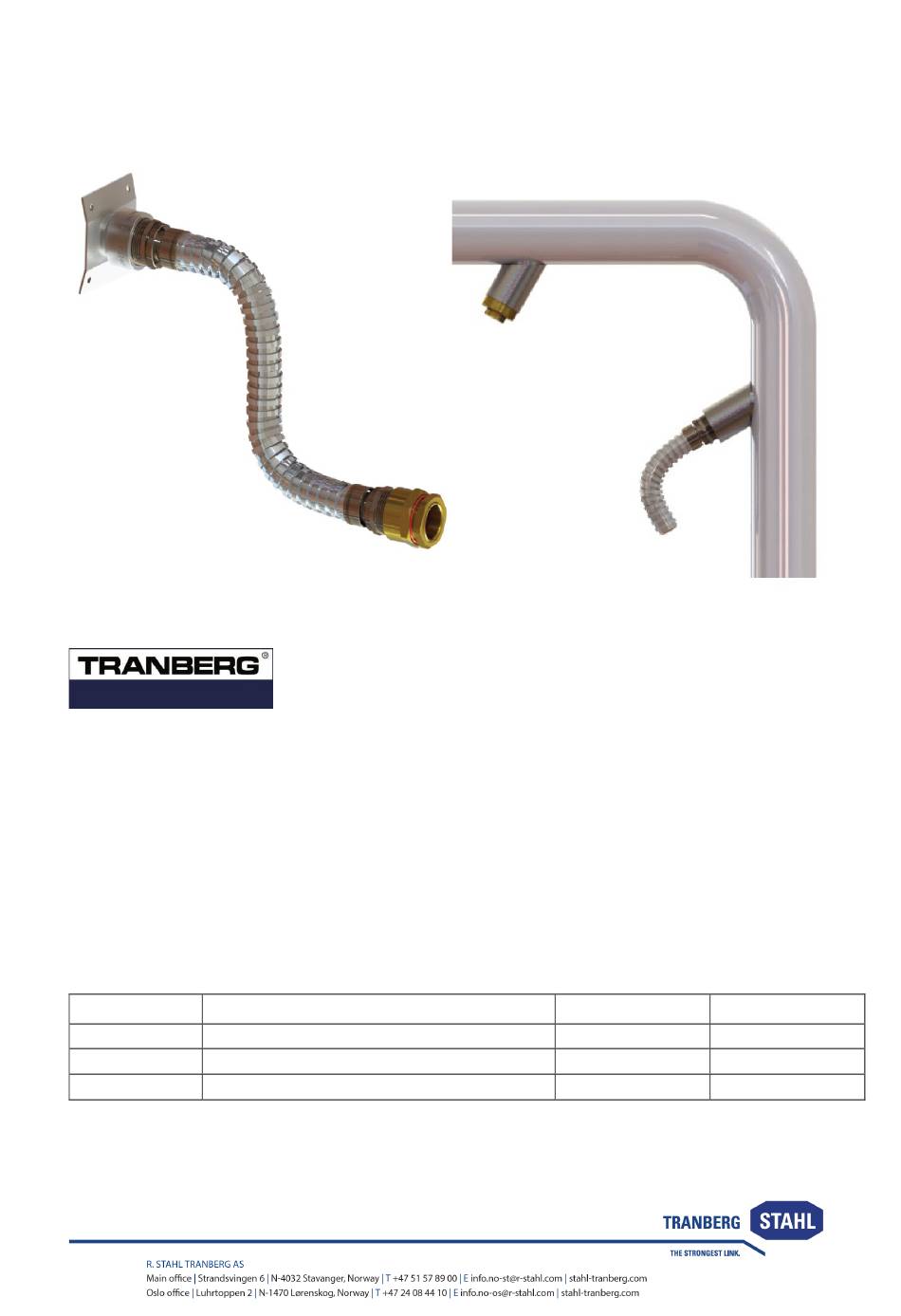

- Page 1 Installation and operating manual - TUM5302 Cladding Penetration & Entry for Hand Rails Installation Manual TEF 9178 190 Cladding Penetration & Entry for Hand Rails Heat Trace Accessories Document properties (TUM5302) Revision Comment Revision date Approved New design 11.03.2022...
- Page 2 Installation and operating manual - TUM5302 Cladding Penetration & Entry for Hand Rails Installation and operating manual Contents Document properties (TUM5302) ..........................1 Warnings and risk levels ............................3 General information ..............................3 Marking and intended use ............................4 Special conditions for safe use ..........................5 Product description ..............................
- Page 3 Installation and operating manual - TUM5302 Cladding Penetration & Entry for Hand Rails Warnings and risk levels DANGER Non-compliance with the instruction results in risk of severe or fatal injuries to persons WARNING Non-compliance with the instruction may result in risk of severe or fatal injuries to persons CAUTION Non-compliance with the instruction may result in risk of injuries or damage to equipment NOTICE...
- Page 4 This is an accessory, and do not hold its own CE mark. This component is covered by the DoC and CE marking of its associated equipment. Intended for use together with Stahl Tranberg Junction boxes and Heat Tracing Equipment.
- Page 5 Stahl Tranberg offers several types of cable entries for use in rough environments designed for such use. This will ensure that there are no sharp edges damaging the heat trace cable. However, if the handrail pipe has sharp objects inside or a weld seam that may damage the heating cable, one should consider additional measures to protect the heating cable.
- Page 6 Installation and operating manual - TUM5302 Cladding Penetration & Entry for Hand Rails Mounting and installation DANGER Incorrect mounting and installation may lead to risk for falling objects, risk for electric shock or fire and risk for equipment malfunction. In turn, this can lead to severe damage and/or injuries. Mounting The two products covered by this instruction are designed to be fastened by several methods: Blind rivets, self-tapping screws or welding.
- Page 7 Installation and operating manual - TUM5302 Cladding Penetration & Entry for Hand Rails...
- Page 8 Installation and operating manual - TUM5302 Cladding Penetration & Entry for Hand Rails Maintenance and cleaning It is recommended to check that the rubber sealings are intact and to check for any water intrusion • regularly. Clean only with a damp cloth, water and mild detergents. Avoid chemicals with high or low pH, •...
