Summary of Contents for SKAARHOJ ETH-SDI
-

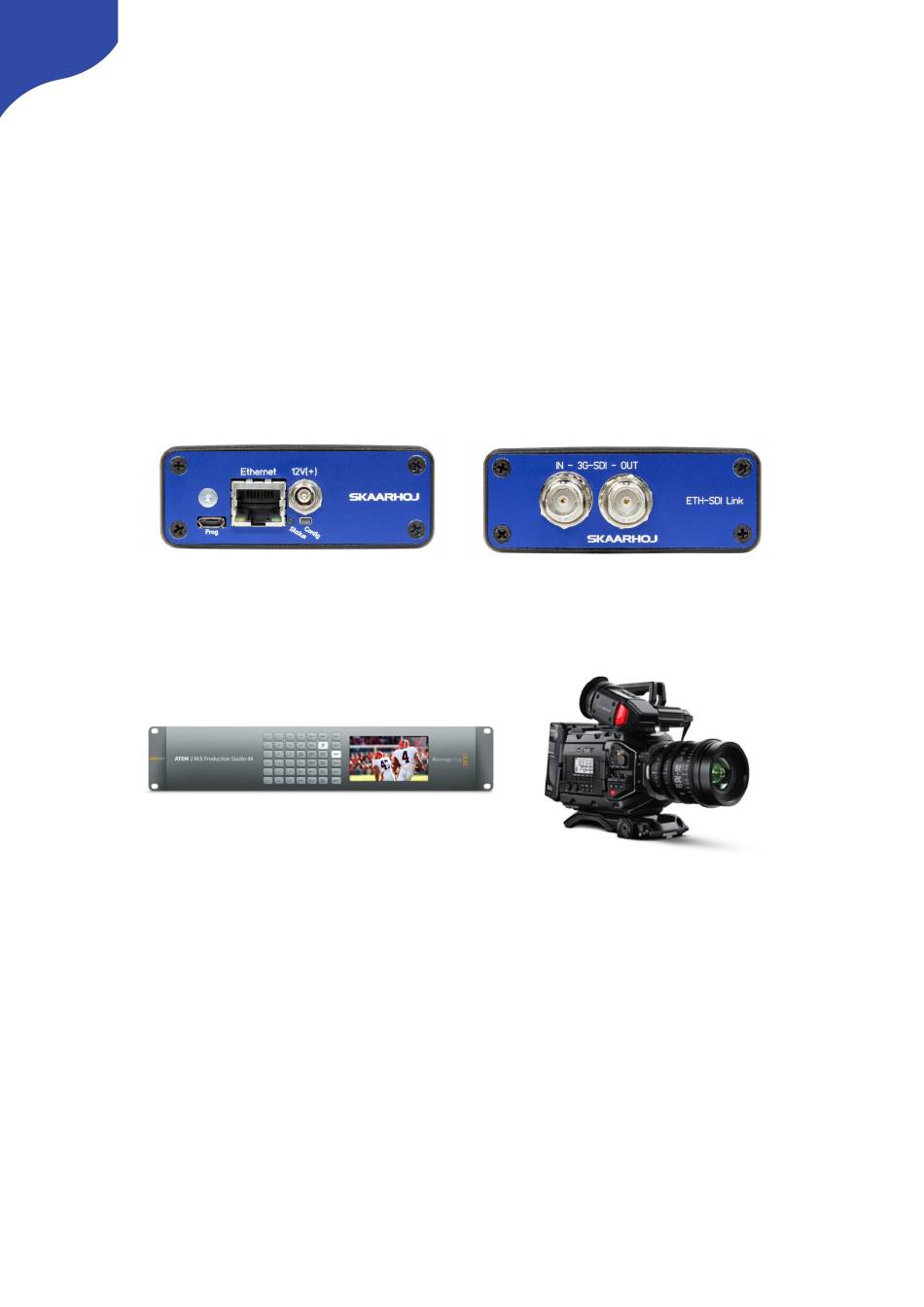

Page 1: Skaarhoj Eth-Sdi Link

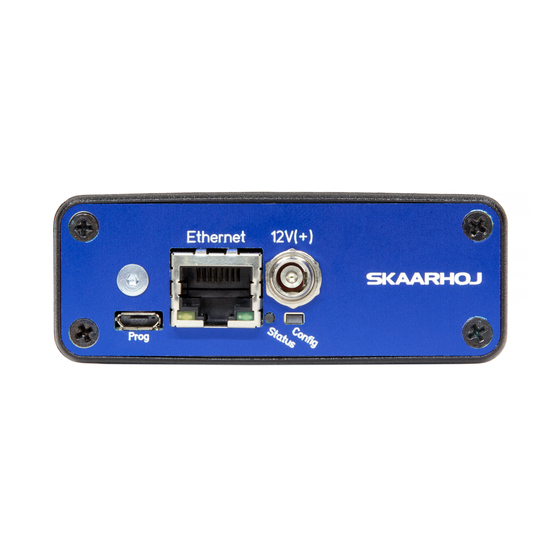

SKAARHOJ Eth-SDI Link SKAARHOJ Eth-SDI Link The ETH-SDI Link is used to translate UDP commands from a SKAARHOJ control panel to BMD Camera Control commands via SDI. An alternate firmware is available for bridging a long connection from an Atem to BMD cameras for sending CCU data. -
Page 2: Table Of Contents
SKAARHOJ Eth-SDI Link SKAARHOJ Eth-SDI Link Introduction Port Information Set Up Principal Networking Setups ETH-SDI Link Configuration Atem2SDI Link Configuration Updating Firmware Finding the Latest Firmware Load Firmware from File Confirm Firmware Type and Version Eth2SDI Firmware Change Log Atem2SDI Firmware Change Log... -
Page 3: Introduction
ATEM and the camera and a VPN can be used to channel the network through. In such a scenario, the ETH-SDI Link would establish a network connection to the ATEM and use it to extract the data otherwise embedded on SDI out of the switcher and embed it “locally”. Requires low latency network. -
Page 4: Set Up
SKAARHOJ Eth-SDI Link Set Up Principal Networking Setups... -
Page 5: Eth-Sdi Link Configuration
Method 1 Set the IP address on the web interface of the ETH-SDI Link. In order to access the web interface press and hold the “config” button on the device, about 10 seconds. The status LED will blink red once and the serial monitor will report “Config mode”. -
Page 6: Atem2Sdi Link Configuration
SKAARHOJ Eth-SDI Link Atem2SDI Link Configuration Configuration for the Atem2SDI Firmware IP Config Set the IP address on the web interface of the Atem-SDI Link. In order to access the web interface press and hold the “config” button on the device, about 10 seconds. The status LED will blink red once and the serial monitor will report “Config mode”. -
Page 7: Updating Firmware
Please use the picture below to determine the microprocessor type in the product. It is important to upload/update with a firmware file that matches the microprocessor type, the two are not compatible. If unsure of which type the Eth-SDI Link uses, please email a picture of the ports with not cables attached to: support@skaarhoj.com Load Firmware from File The function “Load Firmware from File”... -
Page 8: Eth2Sdi Firmware Change Log
SKAARHOJ Eth-SDI Link Eth2SDI Firmware Change Log v1.6 Added serial commands type”help” in the serial monitor for more info. • v1.5 Added TCP mode • v1.4 Prevent firmware-updater from uploading wrong file • v1.3 Increased maximum number of cameras to 20 on DUE •... -
Page 9: Sdi Shield
“Update Firmware” button on the firmware updater. To upload the latest Eth-SDI Link firmware please see the “Updating Firmware” section of this manual. If trying to change the IP address for the Eth-SDI Link please see the “IP Config” section of this manual. -
Page 10: Controller Does Not Show Up Under Port In Firmware Application
SKAARHOJ Eth-SDI Link Controller does not show up under Port in Firmware Application If the controller doesn’t show up under ports, try these things first: • Make sure you have attached your controller with a micro USB cable to your computer. Check the micro USB is fully inserted into the USB plug on the controller •... -
Page 11: Controller Not Confirming Connection
Try power cycling the Eth-SDI Link. It can connect better when powered after the other Skaarhoj controller. Check the IP Settings Make sure the IP for the Device Core in the connected SKAARHOJ controller is set to the same IP address as the Eth-SDI Link. -
Page 12: Power Over Ethernet (Poe) Specifications
SKAARHOJ Eth-SDI Link Power over Ethernet (PoE) Specifications We use the PoE industry standard 48V IEEE 802.3af. If you want to power our controllers using PoE it is important your switch supports this standard. Please notice some manufactures such as Ubiquity have their own non-standard 24V type of PoE which is incompatible with our controllers.
