Summary of Contents for ABRITES TAG
- Page 1 2021 Abrites TAG Key Tool User Manual ABRITES DIAGNOSTICS TAG KEY TOOL User manual version 2.4 www.abrites.com www.abrites.com...
- Page 2 Should you wish to copy this manual or parts of it, you are granted permission only in case it is used with Abrites products, has “Abrites Ltd.” written on all copies, and is used for actions that comply to respective local law and regulations.
- Page 3 All material herein is Copyrighted ©2005-2021 Abrites, Ltd. Abrites software, hardware, and firmware are also copyrighted Users are given permission to copy any part of this manual provided that the copy is used with Abrites products and the “Copyright © Abrites, Ltd.” statement remains on all copies “Abrites”...
-
Page 4: Table Of Contents
2021 Abrites TAG Key Tool User Manual Table of contents 1. Introduction ............6 2. - Page 5 2021 Abrites TAG Key Tool User Manual List of revisions Date Chapter Description Revision 01.10.2015 Total update of the manual. Cloning added 13.09.2017 CAS4 Key Preparation update 23.08.2018 Added cloning of DST+ (G chip), M48 Fixed key and Temic 8C...
-
Page 6: Introduction

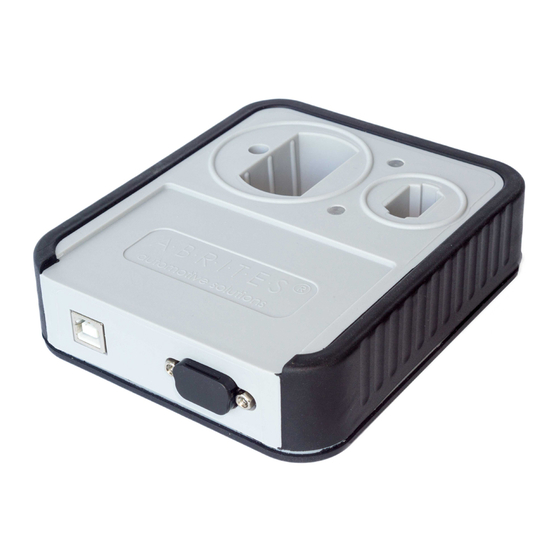

PC as a powerful programmer for transponders and tool for programming of transponder based keys. The PROTAG programmer is a hardware unit produced by Abrites Ltd. intended for programming of tran- sponders via your AVDI interface. PROTAG programmer should be used with ABRITES software pro- duced by Abrites Ltd.ABRITES is a trade mark of Abrites Ltd. -
Page 7: Getting Started
This document describes the software and hardware installation of your transponder programmer named “PROTAG Programmer” and corresponding software named “Abrites Tag KeyTool”. The document is applicable for the transponder programmers from Abrites Ltd. - ZN002. 2.2 Your transponder programmer 2.3 System requirements Minimum system requirements –... -
Page 8: Getting Started
We suppose that your AVDI interface is configured and fully working. You can receive an optional sep- arate installation file of your “Abrites Tag KeyTool” software for your AVDI and PROTAG programmer. The software is a windows executable file named ‘SetupTagKeyTool_VVxxxx.exe’ where VVxxxx is your interface identification number. - Page 9 2021 Abrites TAG Key Tool User Manual Read the license agreement and select “I accept the agreement” if you accepting all. Then press the “next” button. If you not agree press cancel to interrupt installation procedure. Press the “Next” button to proceed with the installation.
- Page 10 2021 Abrites TAG Key Tool User Manual Press the “Next” button to proceed. If you do not want desktop icons uncheck the checkbox about creation of icons. Press “Next” button to proceed. Press “Install” and wait until installation complete. www.abrites.com...
- Page 11 2021 Abrites TAG Key Tool User Manual Be sure that the checkbox about the installation of the interface’s USB drivers is set especially if you are installing for the first time. Press “Finish”. Depending on the setting of your operation system you can be asked to confirm installation of USB drivers.
-
Page 12: Connection Of The Protag Programmer To The Interface
Each of these applications will notify you that the PROTAG programmer is found and will use PROTAG programmer when it is needed. If you are using TAG Key Tool application will appear following screen: From the drop down list you can select some of needed transponders types or utilities which you needed. - Page 13 2021 Abrites TAG Key Tool User Manual You have also the ability to access additional EEPROM memory of the keys, to prepare a key ready for starting of the vehicle using ‘Key Tool’, to prepare transponders ready for programming by diagnostic equipment –...
-
Page 14: Tagkey Tool - Working With Different Transponders
2021 Abrites TAG Key Tool User Manual 4. TagKey tool – working with different transponders Once an option is selected from the drop down list you will find a screen with options which allows you to read and program the fields of the transponder. -
Page 15: Tagkey Tool - Key Tool Andpreparation Of A Key By
2021 Abrites TAG Key Tool User Manual 5. TagKey tool – Key tool andpreparation of a key by dump of immobilizer system “Key tool” is a utility intended for preparation of a key when a dump from immobilizer system of the vehicle is present. - Page 16 2021 Abrites TAG Key Tool User Manual Once you select the “Key tool” option a screen will appear with a drop down list where you can select your model and immobilizer system. www.abrites.com...
- Page 17 2021 Abrites TAG Key Tool User Manual In the list you can see the model, immobilizer module, type of memory where is stored key data and needed transponder/key for programming. When a model is select your next step should be to load the file containing the immobilizer data (dump).
-
Page 18: Tagkey Tool - Production Utility And Preparation Of A Key Ready For Programming By Diagnostic Equipment
2021 Abrites TAG Key Tool User Manual 6. TagKey tool – Production utility and preparation of a key ready for programming by diagnostic equipment “Production” is a utility intended for preparation of transponders ready for programming by diagnostic equipment. From the list of transponders and functions of the main screen you can select this utility. -
Page 19: Tagkey Tool - Cloning Of A Key
If your PC is connected to the Internet, you’ve the ability to clone all kind of TIRIS 4D transponders, not only Toyota/Lexus/Scion Texas 4D (ID67, ID68, ID70). HITAG 2 transponders onto TPX3/ TPX4 cloning. The Abrites PROTAG programmer now offers an easy cloning of HITAG 2 transponders onto TPX3 and TPX4 transponders. This function requires Internet connection www.abrites.com... -
Page 20: Offline
2021 Abrites TAG Key Tool User Manual Cloning of 4D transponders 7. 1. Offline www.abrites.com... -
Page 21: Online
2021 Abrites TAG Key Tool User Manual 7. 2. Online www.abrites.com www.abrites.com... - Page 22 2021 Abrites TAG Key Tool User Manual 4E transponder cloning online: 5E transponder cloning online: www.abrites.com...
- Page 23 2021 Abrites TAG Key Tool User Manual 8C transponder cloning: www.abrites.com...
- Page 24 2021 Abrites TAG Key Tool User Manual Hitag 2 Transponder Cloning www.abrites.com...
- Page 25 2021 Abrites TAG Key Tool User Manual www.abrites.com...
- Page 26 2021 Abrites TAG Key Tool User Manual www.abrites.com...
- Page 27 2021 Abrites TAG Key Tool User Manual www.abrites.com...
- Page 28 2021 Abrites TAG Key Tool User Manual www.abrites.com...
- Page 29 2021 Abrites TAG Key Tool User Manual www.abrites.com...
- Page 30 2021 Abrites TAG Key Tool User Manual www.abrites.com...
-
Page 31: Porsche Panamera Key By Dump
8. Porsche Panamera key by dump Read the 9S12XDP512 or 9S12XEP100 EEPROM using a programmer. Load the EEPROM dump in the Tag software and choose a position where you would like to write the new key. Place a new key in the PROTAG programmer and press the “Prepare key” button. -
Page 32: Cas4 By Dump
In order to prepare a CAS 4 key by dump you need to: Read the XEP100 MCU’s EEPROM and save it to a file. Load the file into the TAG key tool and select the correct key position. Use PCF7939 transponder or a new remote key.
