Summary of Contents for ADDC MDC-C5i

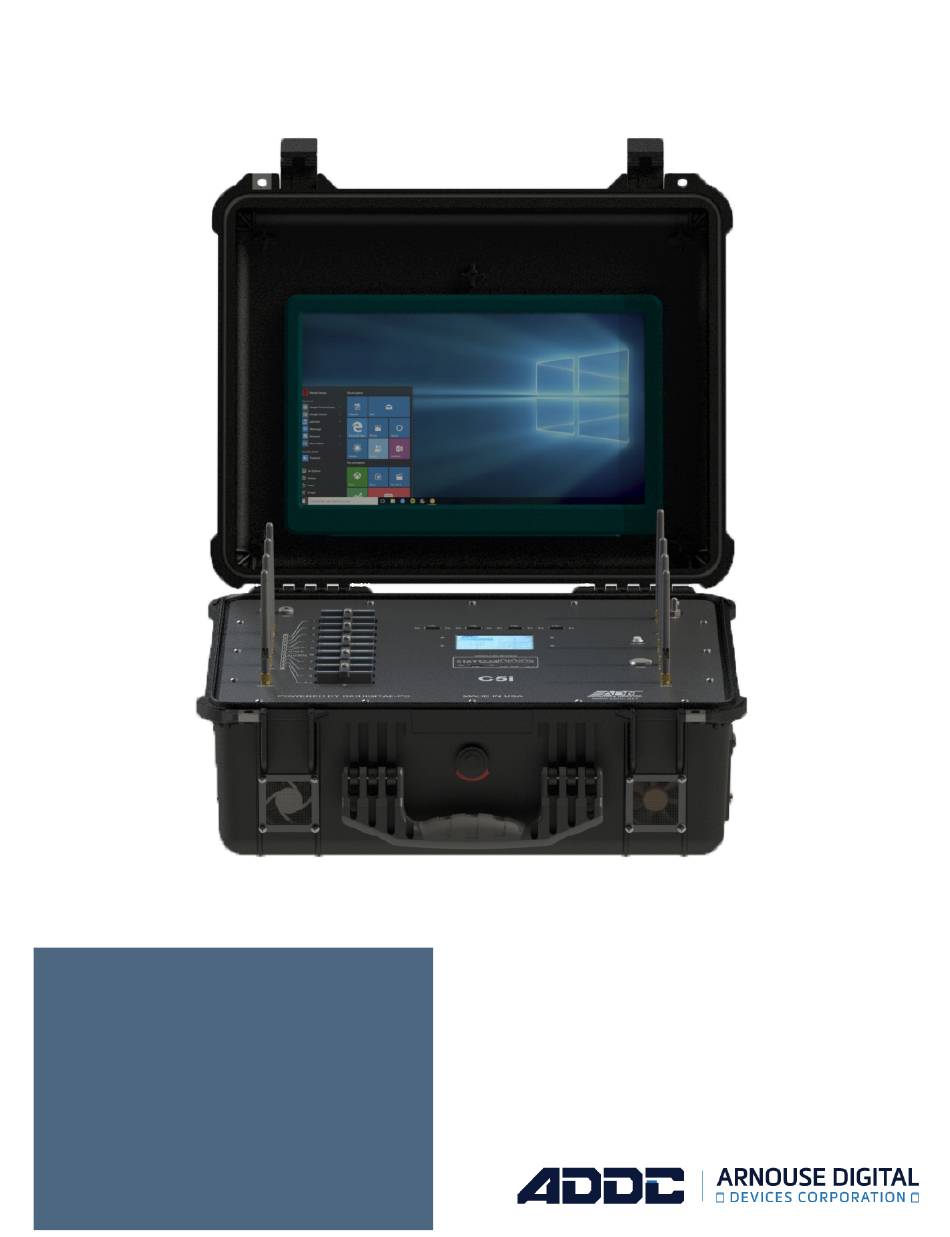

  • Page 1 MDC-C5i USER GUIDE PLUG INTO THE FUTURE OF TECHNOLOGY...
  • Page 2 Revision History Revision Notes Revision 1.0 was published in V1.0 May of 2022. WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 3: Table Of Contents

    Table of Contents Section 1 Receiving Your MDC-C5i Section 1.1 What's in the Box? Section 2 MDC-C5i Preparation Section 2.1 Preparing For Your MDC-C5i Section 2.2 Installing Your BioDigitalPC ® Section 2.3 Connect Antennas and Power On Your MDC-C5i Section 3 MDC-C5i Overview Section 3.1 SR-10 Module...
  • Page 4 This manual details installation of the mobile data center, the components inside of the mobile data center, and notable features of the MDC-C5i mobile server solution. Installations will be supported by ADDC. Unless otherwise specified, all instructions provided in this manual will assume that a user is a trained technician.
  • Page 5: Section 1.1 What's In The Box

    Section 1.0 - Receiving Your MDC-C5i Section 1.1 - What's in the Box? Equipment (Included) • MDC-C5i Case • Magnetized Screen Cover • BioDigitalPC Server Cards [Check ® Invoice for Quantity] • (1) AC Power Cord • (2) 4G antennas •...
  • Page 6: Section 2.1 Preparing For Your Mdc-C5I

    Section 2.1 - Preparing For Your MDC-C5i Temperature Considerations Your MDC-C5i is designed to operate at room temperature with its self-contained cooling. Power Considerations When properly configured and installed the can draw up to 400 Watts depending on the number, load, and version of the BioDigitalPC s used.
  • Page 7: Section 2.2 Installing Your Biodigitalpc

    ® removing them. Only trained technicians are authorized to work beneath the MDC-C5i System Cover and access any of the components inside the system. Section 2.2.1 - Opening the MDC-C5i Case:...
  • Page 8: Section 2.3 Connect Antennas And Power On

    Section 2.3 - Connect Antennas and Power On Your MDC-C5i 4G Antenna 5 GHz antenna 5/2.4GHz antennas Power On Button WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 9 Section 3 - MDC-C5i Overview 15" display for KVM monitoring. SR-10 Module Card Slot Network Number. connections. 3.5" touch display to control 4 USB ports for KVM card's power. control. Cradlepoint router status LEDs and router reset button. WWW.ADDC.COM | 516.673.4444...
  • Page 10: Section 3.1 Sr-10 Module

    1Gbps NICs ® attached to an integrated switch. Each switch has two SFP+ 10Gbps connectors and one 1Gbps RJ-45 connector broken out to the side panel of the MDC-C5i (See Section 3.2 for additional information). Each SR-10's integrated switch...
  • Page 11: Section 3.2 Side Panel

    LTE Router SIM Cards Port Serial Management Port Port Section 3.3 - KVM USB and Video KVM USB Ports Touch screen display controls KVM card selection. KVM VGA Display WWW.ADDC.COM | 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 12: Section 3.4 Front Panel

    Cradlepoint Wireless Router status LEDs. Cradlepoint Wireless Router reset button. MDC-C5i Power Button An individual slot's 1Gbps NIC LEDs. One LED for each 1Gbps NIC 10G-A: SR-10's 10Gbps SFP+ Port Status LED 10G-B: SR-10's 10Gbps SFP+ Port Status LED 1G-AUX: SR-10's auxiliary one Gigabit Port Status LED WWW.ADDC.COM...
  • Page 13: Section 4.1 Login

    The web interface for ROMWare asks for credentials to log in and begin management and/or monitoring of your MDC-C5i Users are supplied with administrative credentials that have been factory set. Only one admin can be logged in at once, through the IP 10.0.1.254.
  • Page 14: Section 4.3 Dc Power Control & Monitoring

    SR-10 Power Module. “Clear Faults” will clear faults for this SR- 10's power supply. Clicking on a box will show more information regarding the current status of the DC Power Supplies. WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 15: Section 4.4 Biodigitalpc

    Section 4.4 - BioDigitalPC Power Control & Monitoring ® Displaying the card management features of the MDC-C5i is done by clicking the Slot Number. Activates KVM on selected BioDigitalPC Server card ® Powers on the BioDigitalPC Server card. ® Immediately removes power from the BioDigitalPC Server card.
  • Page 16 Section 4.4 - BioDigitalPC Power Control & Monitoring ® BioDigitalPC Slot Number The unique MDC-C5i slot number ® SR-10 Module Position The position number of the SR-10 Module within the MDC-C5i BioDigitalPC Slot Position The Position of the Slot within the SR-10 ®...
  • Page 17 Power Control & Monitoring ® Disable Slot Disables the slot for this SR-10 module. Is Auto-Power On With this enabled, after boot up of the MDC-C5i the Enabled BioDigitalPC in this slot will be powered on (if present) ® after delay number of seconds.
  • Page 18: Section 4.5 Mdc-C5I System Settings

    Section 4.5 - MDC-C5i System Settings Click on the cog to access the Systems Settings The System Settings allows the user to change four things: ROMware password, the machines IP address, the machines Gateway and the ability to enable or disable the Keypad WWW.ADDC.COM...
  • Page 19: Section 4.6 Front Panel Touchscreen Over

    System Startup Screen – Allow 3-4 minutes for system to boot up • ADDC Support Screen – This screen is displayed right after the system boots up and will be closed after ten seconds or it can also be closed by clicking on the red button.
  • Page 20 Section 4.6 - Front Panel Touchscreen Overview • PC Card Slots Power Status Screen – This screen is displayed after the ADDC support screen is closed. WHITE indicates there is no PC Card installed, GRAY indicates there is a PC Card installed but is turned OFF, GREEN indicates that there is a PC Card installed and turned ON.
  • Page 21 Section 4.6 - Front Panel Touchscreen Overview Displaying the card management features of the MDC-C5i is done by clicking the Slot Number. ® Activates KVM on selected BioDigitalPC Server card. ® Powers ON the BioDigitalPC Server card. ® Immediately removes power from the BioDigitalPC Server card.
  • Page 22 The default session timeout can be changed from ROMWare Lite. Click the logout button to lock the screen WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 23: Section 5.1 Router Features And Specs

    5 GbE (LAN/WAN switchable) USB Ports Serial Ports Dual-Modem Support Throughput Throughput VPN Tunnel Count Wi-Fi Dual-band, tri-radio Wi-Fi; 802.11ac Wave 2 (Wi-Fi 5) GNSS/GPS Active Private Cellular Network WWW.ADDC.COM | 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
  • Page 24: Section 5.2 Cradlepoint Netcloud Login

    Section 5.2 - Cradlepoint NetCloud Login The MDC-C5i has an integrated Cradlepoint LTE wireless router. To access the router's web management interface "NetCloud" connect to any of the MDC-C5i's 1GB ports on the side to obtain an IP address from the router's DHCP server, then enter NetCloud's default IP address 192.168.0.1 into any web browser where you will see the login page...
  • Page 25 From the admin dashboard you can fully manage all the router's settings such as vlans, VPN tunnels, firewall policies, password change and much more. For further details go to cradlepoint's official documentation https://cradlepoint.com/product/endpoints/ibr1700 WWW.ADDC.COM | 516.673.4444 INFO@ADDC.NET ALL PRODUCTS ARE PROUDLY MADE IN THE USA...
