Ironwood BR23
User Manual
general information.
features.
technical specifi cations. safety considerations.
delivery and installation. inspection.
assembly.
pre-operation cleaning.
drill bits.
ream extension fence and stops.
operation and adjustments.
controls. operation.
applications.
maintenance.
cleaning.
troubleshooting. safety.
connect to power.
Advertisement
Table of Contents
Related Manuals for Ironwood BR23
Summary of Contents for Ironwood BR23

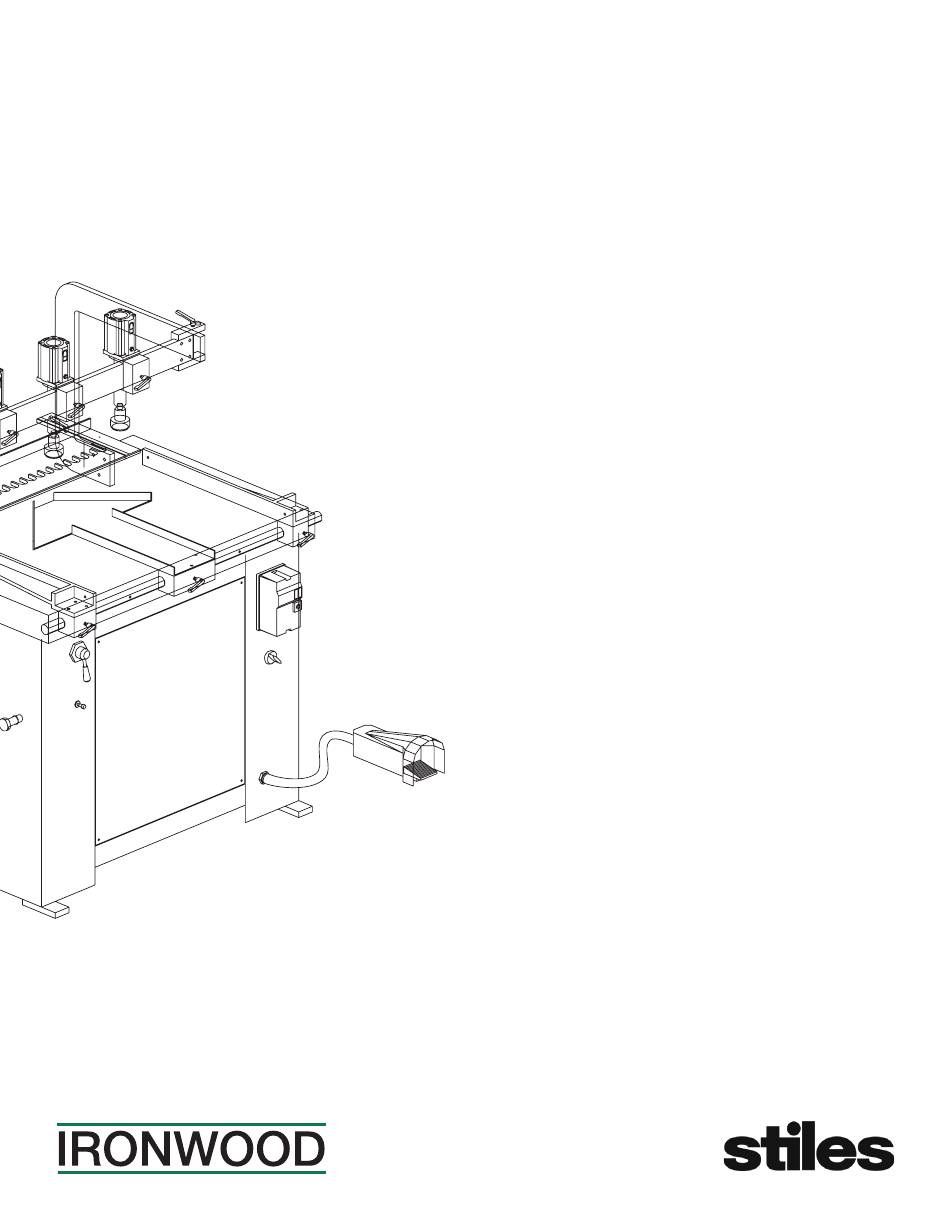

- Page 1 Ironwood BR23 User Manual general information. features. technical specifi cations. safety considerations. delivery and installation. inspection. assembly. pre-operation cleaning. drill bits. ream extension fence and stops. operation and adjustments. controls. operation. applications. maintenance. cleaning. troubleshooting. safety. connect to power.
-
Page 2: Table Of Contents
Troubleshooting ..............20 9.1 Air Circuit Diagram 9.2 Electrical Diagram PLEASE REVIEW AND OBSERVE ALL SAFETY INFORMATION / DIRECTIVES BEFORE INSTALLING, OPERATING, OR PERFORMING MAINTENANCE ON THIS MACHINERY. Ironwood BR23 | User Manual... -
Page 3: General Information
Drill bits rise from beneath the workpiece for fast, clean, safe, are also listed on the metallic plate. boring. The BR23 allows System 32 line boring, with hole spacing of 32mm to facilitate the easy installation of dowels, brackets, hinges, cam fittings, shelf support, connecting screws, etc. The boring head carriage can be adjusted to a 90°, 45°, or 0-degree position. -
Page 4: Technical Specifications
Quick chuck 23 pcs Motor power 3 hp Spindle speed 3450 rpm Air Requirement 90-100 PSI Air Consumption 1 cfm / cycle Gross weight 836 lbs (380 kg) Electrical 230v, single phase Amps 22 amps Ironwood BR23 | User Manual... -
Page 5: Safety Considerations
For your safety, read these instructions thoroughly before you install WaRninG and operate this machine. Always have these instructions available Never use the BR23 for purposes other than its intended use. Do at the machine for reference. not modify or remove any guards or other safety features. Improper... -
Page 6: Facility Requirements
2.3 Power accommodate the Ironwood BR23. Follow these guidelines: WaRninG 2.1 Floor A licensed electrician must connect the BR23 to the building power source. • The floor must be flat and level. • Do not use extension cords. • Although no special foundations are required, a concrete floor is • ... -
Page 7: Delivery And Installation
If you do not intend to install the machine immediately after delivery, store it in a protected, cool, and dry location. Do not remove the machine from the pallet while uncrating. The machine arrives fully crated. Remove and save the paperwork attached to the outside. Ironwood BR23 | User Manual... -
Page 8: Inspection
The tool kit should contain the following items: Allen wrench set Open-end wrench set (6-pieces: 8x10/10x12/12x14/14x17/ 17x19/22x24) Grease gun 3m ruler with hex screw Cranking handle Paint (3-color set) User manual Ironwood BR23 | User Manual... -
Page 9: Remove Machine From Pallet
3.6 Level TOOLS REQUIRED: Caution • Bubble Level The BR23 weighs approximately 830 pounds. For this procedure, • Adjustable wrench we recommend using four people or a forklift. Use a bubble level along the length and width of the tabletop surface TOOLS REQUIRED: to check for level. -
Page 10: Assembly
NOTE: A 3-meter measurement tape is included in the tool kit. The measurement tape can be mounted on the assembled back fence to provide accurate flip stop measurements over the entire length of the back fence. Ironwood BR23 | User Manual... -
Page 11: Left- And Right-Side Fences
Lock the lever (D) to fix the correct distance. To remove a drill bit quick chuck (with drill bit) from the spindle, Repeat steps 3-4 to adjust the length of another side. slightly turn the quick chuck to the left and pull up. Ironwood BR23 | User Manual... -
Page 12: Connect To Power
Replace the clear plastic insulator and the power box cover. Turn the regulating knob counterclockwise to let air exhaust to a pressure level below the desired setting. Turn the knob clockwise to slowly increase the pressure to the desired setting. Ironwood BR23 | User Manual... -
Page 13: Safety
Like all power equipment, there is danger associated with the personal injury or damage to your machine. Regularly maintain Ironwood BR23. Use caution and follow all safety instructions. your tools and accessories. Follow instructions for lubricating and Take every precaution to protect yourself, others around you, and changing tooling and accessories. -
Page 14: Operation And Adjustments
Feed Rate Control Knob: Sets speed at which boring head drills carriage. into workpiece Step 2: Turn on power to machine Step 3: Ensure air pressure is correct Step 4: Set boring depth using the revolving turret with stops Ironwood BR23 | User Manual... - Page 15 Adjust the boring head carriage to the horizontal position (0 degrees). Push in the knob (C) located to the right of the lock lever. Turn the lever to the right. The boring head carriage will lower to the 45° position. Ironwood BR23 | User Manual...
- Page 16 *Hard drilling: Hard material work piece, thick work piece, drilling many holes at a time, etc. Ironwood BR23 | User Manual...
-
Page 17: Applications
If in automatic mode, press the foot pedal; the drill spindles will run automatically when the boring head carriage moves up/forward and stop when it returns to the lowered/back position. Remove the workpiece. Joining at 45º Using 45º Fence Ironwood BR23 | User Manual... - Page 18 Joining at 0-90º (Compound Machining) Line Boring on Long Panel Using Extension Bar Boring for Hinge Installation Ironwood BR23 | User Manual...
-
Page 19: Maintenance
Wipe away any excess grease before starting the 8.3 Inspection machine. Feature Interval/Situation Boring head and bits Every use Emergency stop Everyday – by functional test Pneumatic system Everyday Electrical cabinet/system Monthly: wiring terminals loose, insulation deterioration, vacuum dust Ironwood BR23 | User Manual... -
Page 20: Troubleshooting
Call Stiles Technical Support Drill block making abnormal noise Bad bearings or broken gears Call Stiles Technical Support Not enough lubrication Add proper grease If you cannot resolve your issue, contact Stiles Technical Support at 616.698.6615. Ironwood BR23 | User Manual... -
Page 21: Air Circuit Diagram
9.1 Air Circuit Diagram Ironwood BR23 | User Manual... -
Page 22: Electrical Diagram
9.2 Electrical Diagram Ironwood BR23 | User Manual... - Page 24 Stiles Machinery Inc. 3965 44th St. SE Version A Grand Rapids, MI 49512 November 2013 p. 616.698.7500 f. 616.698.9411 © 2013 Stiles Machinery Inc. www.stilesmachinery.com...
