Instruction

This manual provides information how to charge PM550 or PM550 battery with cradles (optional

accessories). Please read this manual carefully before using your cradles.

Revision History

Revision

Date

V01

15 Jul 2020

V02

16 Jul 2020

Need help?

Do you have a question about the PM550 and is the answer not in the manual?

Questions and answers

Summary of Contents for POINTMOBILE PM550

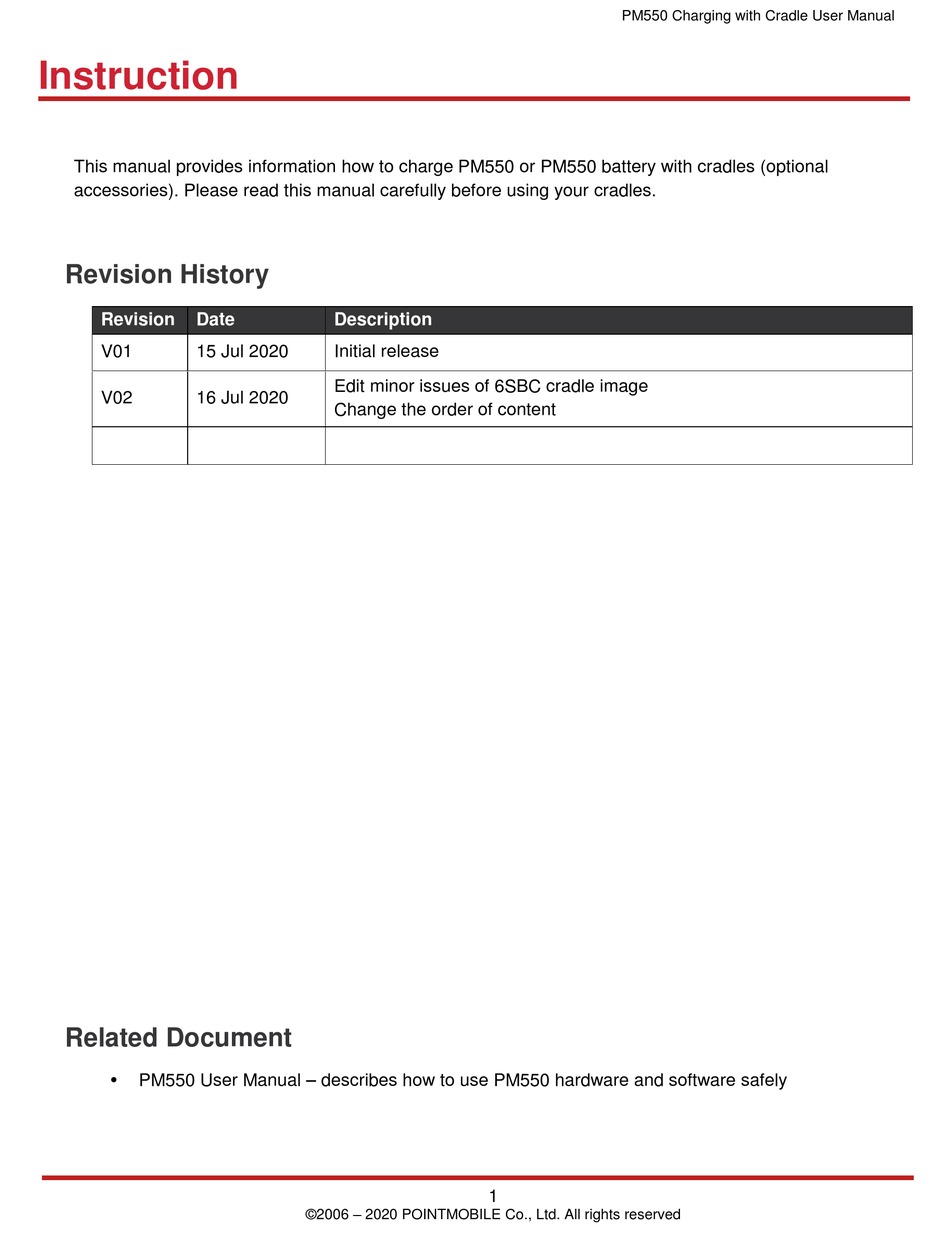

Page 1: Instruction
PM550 Charging with Cradle User Manual Instruction This manual provides information how to charge PM550 or PM550 battery with cradles (optional accessories). Please read this manual carefully before using your cradles. Revision History Revision Date Description 15 Jul 2020 Initial release...
Page 2: Table Of Contents
4SC (4 SLOT CRADLE) .................... 7 Charging the device ......................... 7 SSC (SINGLE SLOT CRADLE) ................. 8 Major Parts ..........................8 Charging the device ......................... 9 Charging the battery ......................10 © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 3: 6Sbc (6 Slot Battery Charger)
PM550 Charging with Cradle User Manual 6SBC (6 Slot Battery Charger) 6SBC (6 Slot Battery Charger) is for charging up to 6 batteries at the same time Major Parts © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 4: Charging The Battery
1. Insert the battery so that the connector pin of the battery and battery slot contact each other 2. Push down the battery until it clicks. And check if the LED indicator flashes solid red or solid green. © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 5 Depending on production time, battery inserting orientation could be reversible. Check out the below table to find the difference of slot shape & battery orientation between the previous version and the new version. Previous Version New Version Slot Shape Battery Orientation © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 6 3. If the battery is plugged properly, LED indicator of the slot will flash red or green Color Description Figure Battery is charging Green Battery is fully charged Blinking Battery is not plugged properly © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 7: 4Sc (4 Slot Cradle)
PM550 Charging with Cradle User Manual 4SC (4 Slot Cradle) 4SC (4 Slot Cradle) is for charging up to 4 units of PM550 at the same time. Charging the device Insert a PM550 from top to bottom. Charging state will be indicated by the PM550 LED indicator.
Page 8: Ssc (Single Slot Cradle)
PM550 Charging with Cradle User Manual SSC (Single Slot Cradle) SSC (Single Slot Cradle) is for charging a PM550 and a battery. You can charge the device and battery at the same time. Major Parts Provide power by AC Adaptor 12V/5A. Adaptor and power cable are included in the PM550-4SC package.
Page 9: Charging The Device
SSC (Single Slot Cradle) Charging the device Insert a PM550 from top to bottom. Check if the device is plugged to cradle firmly. When PM550 is properly inserted, the charging LED indicator of PM550 will flash red or green. © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 10: Charging The Battery
1. Insert the battery so that the connector pin of the battery and battery slot contact each other 2. Push down the battery until it clicks. And check if the LED indicator flashes solid red or solid green. © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 11 Depending on production time, battery inserting orientation could be reversible. Check out the below table to find the difference of slot shape & battery orientation between the previous version and the new version. Previous Version New Version Slot Shape Battery Orientation © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 12 If the battery is plugged properly, LED indicator of the slot will flash red or green Color Description Figure Battery is charging Green Battery is fully charged Blinking Battery is not plugged properly © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
