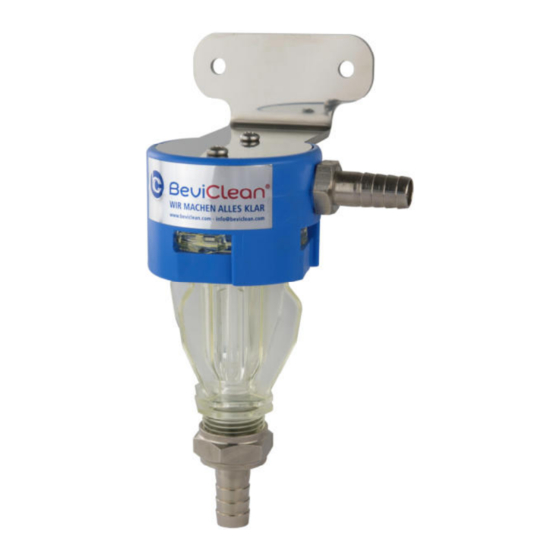

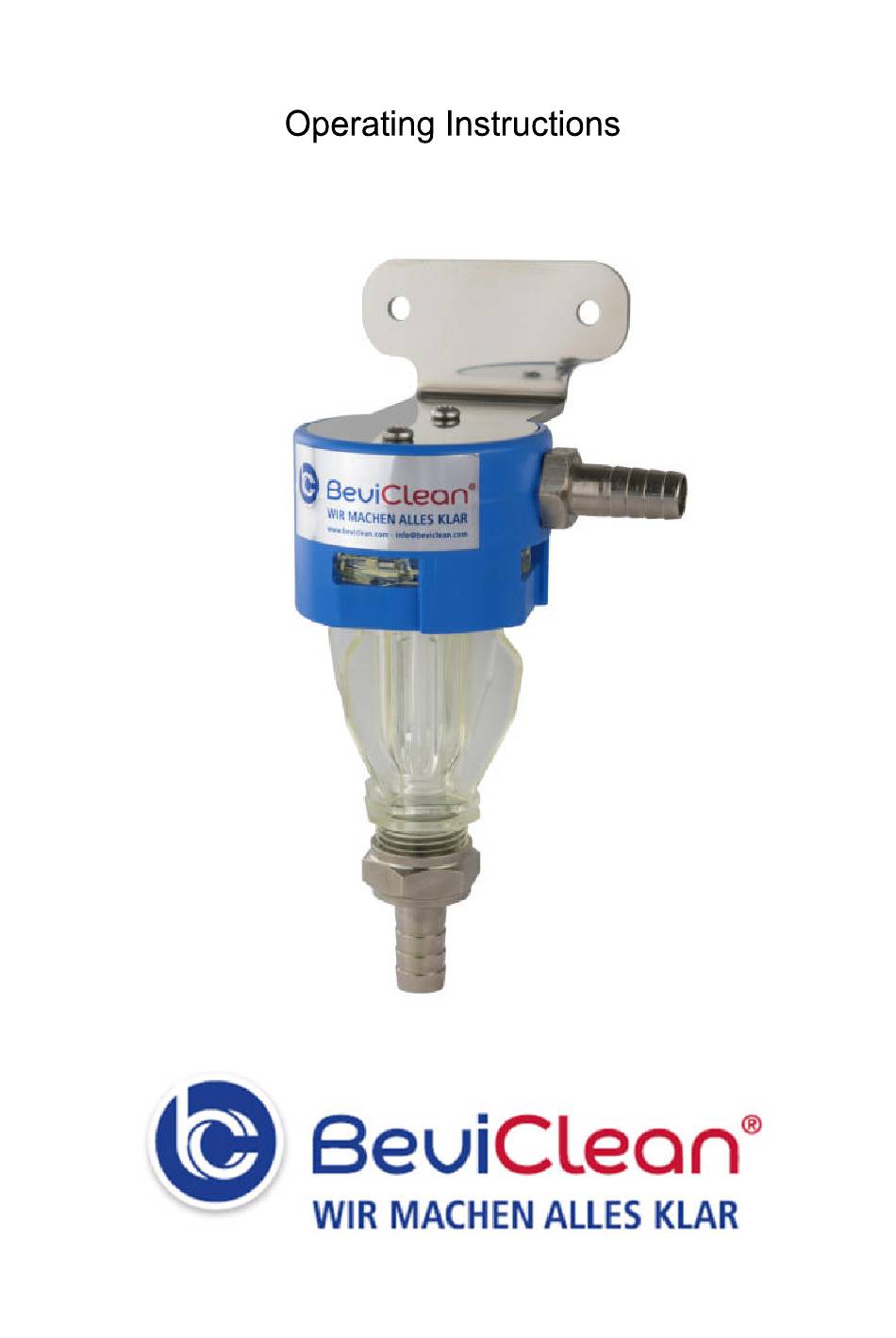

- Page 1 Bevi Plus...
- Page 2 Contents Page 1. Safety instructions ............2 2. Scope of supply ............... 3 3. Operating instructions ............3 4. Cleaning and service ............5 5. General information ............5 6. Illustration and components ..........6 Spare parts ..............7 8. Technical information ............8 Safety Instructions Check the device for transport damages upon receipt ...
- Page 3 Cleaning pellets Bevi Tab alkaline (2 pieces) Operating Instructions Connection Connect the water hose to Bevi Plus In case of a steady connection, on site there must be a pipe dis- connector with ventilation according to DVGW, and a hose burst...
- Page 4 Cleaning Detach the adapter sight glass from the equipment by slightly turning it to the left, place Bevi Tab flat (see Fig.1), and fasten again (depending on the length of the line use 2 Bevi Tabs) Open the water cock ...
- Page 5 Cleaning and Service Disinfect inside and outside of the equipment in regular intervals, e. g. with Bevi Desinfect (Attention: do not use alcohol- containing agents) General Information It is only allowed to connect the equipment with water cocks without low-pressure flow heaters Protect the equipment against temperatures below ...
- Page 6 Illustration and Components No. Denomination 1 Water supply 2 Opening for placing Bevi Tab 3 Adapter sight glass 4 Sieve 5 Beverage line drain/cleaning distributor/KEG adapter...
- Page 7 Spare Parts Item no. Component Bevi Plus 88501100 Bevi Plus admixing device 88120106 O-ring sealing 34x4 88010138 Cap nut hexagon 5/8" 88120134 Adapter sight glass for Plus with RV 88501005 Valve housing blue with non-return valve 88240126 Cleaning distributor 6-fold CC or NC...
- Page 8 1/2“ AG or 10 mm hose fitting Work range: 3-4 bar Weight: 0,3 kg Measures: 185x91x90 mm (HxWxD) BeviClean strives for continuous improvement and reserves the right to up-date or change technical data without prior notice.
