Summary of Contents for Angekis AN-CTK-01

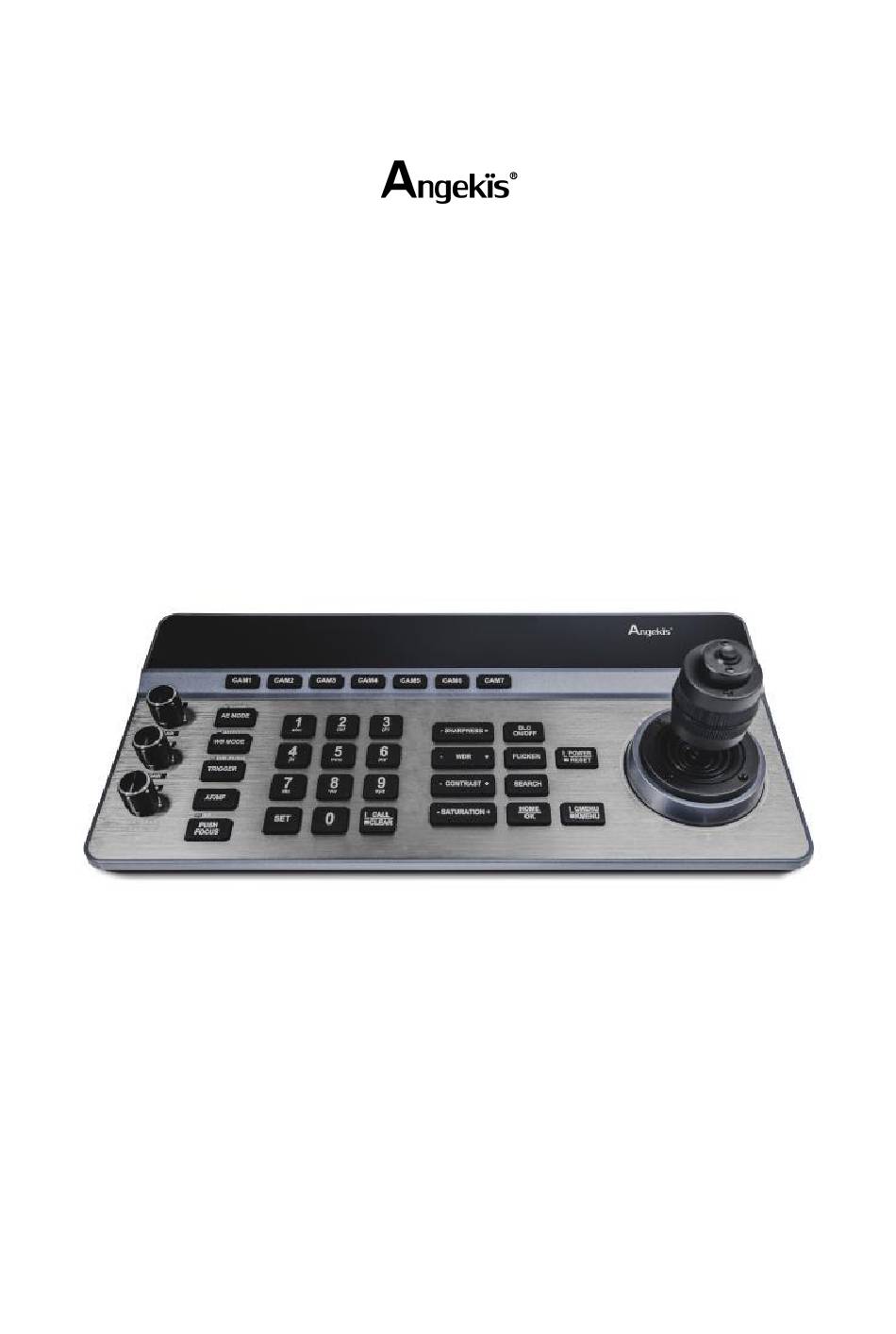

- Page 1 MISSION CONTROL KEYBOARD AN-CTK-01 User Manual V1.0 J.BC.0205.0157...
-
Page 2: Table Of Contents
1. Security Guidance ........................1.1 Cautions ............................1.2 Notice ............................2. Check Before Using ........................2.1 Packing List ..........................2.2 The Wiring ..........................2.3 Bottom Dialing Switch ......................3. Keyboard Description ....................... 3.1 Functional Features ........................3.2 Technical Specifications ...................... -
Page 3: Security Guidance
1.1 Cautions: ● Before using the product, please read this safety instruction carefully, operate strictly in accordance with the instruction manual, and keep this manual properly for future reference. ● The standard power supply voltage is DC 12V and the rated current is 1A. It is recommended to use with the power adapter that comes with the product. -
Page 4: Check Before Using
2.1 Packing List When opening the package, please check and confirm all the accessories that should be provided. Control keyboard·········································································· 1PCS Power Adapter············································································· 1PCS Power Cord·················································································1PCS RS232 Cord················································································ 1PCS User Manual··············································································· 1PCS 2.2 The Wiring 2.3 Bottom Dialing Switch Bottom dial control Mode SW-1 SW-2... -
Page 5: Keyboard Description
3.1 Functional Features: ★ Support network interface, RS232 interface, RS422 interface and RS485 interface for control. ★ Supports VISCA Serial, Pelco-P, Pelco-D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, and NDI protocols for control. ★ With seven camera shortcut control buttons, to improve the speed of multiple cameras control switching, convenient and fast. -
Page 6: Product Size
Parameters Indicators Control Interface RJ45,RS232,RS422,RS485 RJ45 Ethernet port，POE（IEEE802.3af） RS232 DB9 male connector RS422 3.81 spacing terminal，T＋，T－，R＋，R－ RS485 3.81 spacing terminal，T＋，T－ VISCA Serial, Pelco-P, Pelco-D, VISCA over IP, Support Protocols VISCA TCP, VISCA UDP, ONVIF, NDI(optional) Upgrade Interface Type-C 3.12" OLED screen, blue light, 256×64 pixels Display Screen Display Screen Working power... -
Page 7: Display Screen Content
1. Lock hole 5. Network interface 9. Button 2. Upgrade interface 6. Power interface 10. Joystick 3. RS232 interface 7. Indicator light 11. Display screen 4. RS485 interface 8. Adjusting knob 12. Dial switch 3.5 Display Screen Content： 3.6 Button Function... - Page 8 3.6.1 Shortcut Selection Area 【CAM1】~【CAM7】 Select the corresponding camera. 3.6.2 Adjustment Knob Area, 3A Setting Area 【AE MODE】 There is the word “AUTO” next to the button AE MODE. When the "AUTO" light is on, automatic exposure mode is triggered; when the "AUTO" light is OFF, the other modes manual exposure, shutter priority, iris priority, bright priority can be selected, and at this time, the three knobs on the left side of the keyboard can adjust the shutter, iris, gain, bright and other parameters.
- Page 9 【WB MODE】 There is the word "AUTO" next to the button WB MODE. when the "AUTO" light is on, it is AUTO and ATW mode; when the "AUTO" light is off, the manual, indoor and outdoor, Sodium lamps, fluorescent lamps mode can be selected, then the camera red gain and blue gain can be adjusted through the first two knobs on the left side of the keyboard.
- Page 10 balance is triggered once. There is the word "AF" next to the button AF/MF. When the "AF" 【AF/MF】 light is on, it is the automatic focus mode; when the "AF" light is off, it is the manual focus mode, which can be adjusted by the third knob on the left side of the keyboard. Note: When the exposure mode and focus mode are both manual, the 3rd knob gives priority to adjusting the focus.
- Page 11 Short press to open the camera menu, long press to open 【CMENU/KMENU】 the keyboard menu. 3.6.6 Joystick Control 【Up】【Down】【Left】【Right】 Offset the joystick to control the camera to 4 directions. 【Zoom＋】 Turn the joystick clockwise to zoom in. 【Zoom－】 Turn the joystick counterclockwise to zoom out.
-
Page 12: Menu Setting
4.1 Operating Instructions: 1. Long press CMENU/KMENU to open the keyboard menu; Adjust the joystick Up and Down to view the menu options; Right to enter the next option; Left to return to the previous option, short press CMENU/KMENU can also return to the previous option;... -
Page 13: Wiring Diagram
5.1 Connection in network mode: 5.1.1 The keyboard is on the same LAN as the camera: The keyboard connects to the switch through the network cable, and the camera connects to the switch through the network cable. In the same LAN, set the same network segment, and set the corresponding protocol, IP address and port number, you can control the camera through the keyboard. -
Page 14: Connection In Rs232 Mode
5.2 Connection in RS232 mode: The keyboard connects to the camera via RS232 cable, set the corresponding protocol, address and baud rate, and you can control the camera via the keyboard. Line Sequence： Using the RS232 connection, pin 1 RXD of the keypad is connected to the camera input interface TXD, pin 2 TXD of the keypad is connected to the camera RXD and pin 3 of the keypad is connected to the camera GND. -
Page 15: Connection In Rs422 Mode
5.3 Connection in RS422 mode: The keyboard connects to the camera via RS422 cable, set the corresponding protocol, address and baud rate, and you can control the camera via the keyboard. Line Sequence：Using the RS422 bus connection, the keyboard pin 1 TXD + connects to the camera's RXD-, the keyboard pin 2 TXD - connects to the camera's RXD +, the keyboard pin 3 RXD + connects to the camera's TXD -, the keyboard pin 4 RXD - connects to the camera's TXD+. -
Page 16: Cascade In Rs232, Rs422, Rs485 Mode
Line Sequence：Using the RS485 bus connection, the keyboard pin 1 TXD + connected to the camera RXD-, the keyboard pin 2 TXD- connected to the camera RXD +. 5.5 Cascade in RS232, RS422, RS485 mode： The keyboard connects the RS232-IN port of camera No. 1 through RS232, RS422, RS485 lines, and then connects the RS232-IN port of camera No. - Page 17 Line Sequence：Using RS232 cascade connection, the output of the keyboard is connected to the input of camera No. 1, the output of camera No. 1 is connected to the input of camera No. 2, and so on. The connection method using RS422 and RS485 cascade is roughly the same as that of RS232.
-
Page 18: Web Configuration
6.1 Login WEB The keyboard and computer connected to the same LAN, open the browser, enter the IP address (default IP address is 192.168.1.188), enter the login interface, you can choose the language (Chinese or English), enter the username and password to login, as shown on the right. -
Page 19: Network Parameter
6.3 Ethernet Parameter Set the network parameters of the keyboard, including DHCP switch, IP Address, Netmask, Gateway, DNS, HTTP Port. 6.4 Firmware Upgrade Check the keyboard device name and version information, and also, you can upload files to upgrade the keyboard system. Please do not power off during the upgrade process. -
Page 20: Account
6.6 Account Set the login and password of the keyboard. First enter the Account number that needs to be set, then enter the password that needs to be set twice (Password, Confirm Password), and then click “Save”. After setting the account number and password, please remember the account number and password, otherwise you will not be able to log in the WEB side interface. -
Page 21: Frequently Asked Questions
Frequently Asked Questions Adverse Description Solution Ideas Check if the network cable is connected properly. Check whether the camera supports the set protocol. Check if the keyboard screen shows connected. The display of " " indicates a successful connection. The keyboard cannot control Check whether the IP address, protocol and port number set on the the camera in network mode.
