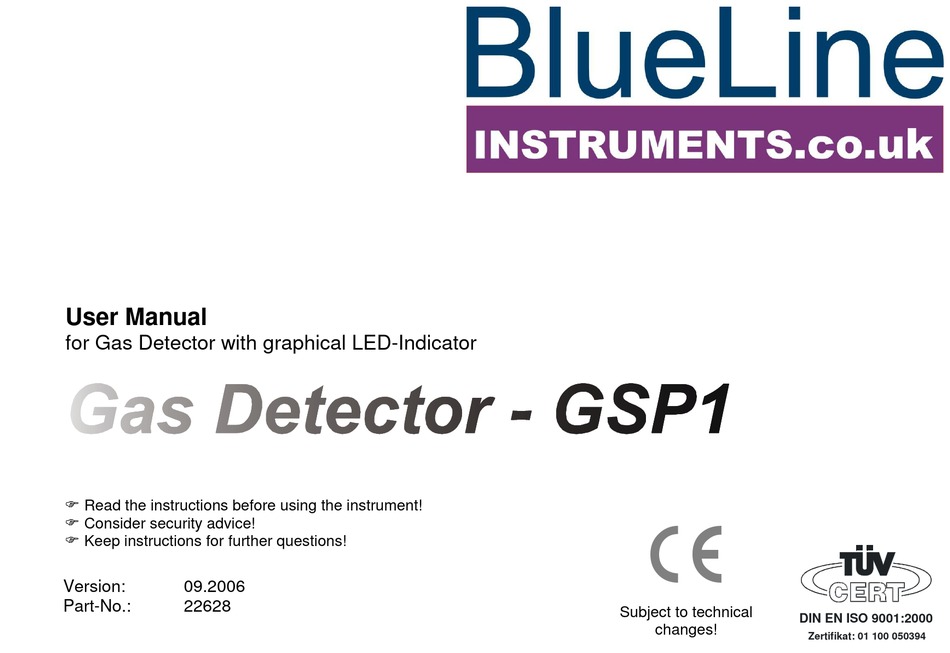

- Page 1 User Manual for Gas Detector with graphical LED-Indicator Read the instructions before using the instrument! Consider security advice! Keep instructions for further questions! Version: 09.2006 Part-No.: 22628 Subject to technical DIN EN ISO 9001:2000 changes! Zertifikat: 01 100 050394...
- Page 3 Gas Detector – GSP1 Graphical LED-Indicator Function button Measuring unit with gas sensor Flex arm Button for setting alerts ON/OFF button...
-
Page 5: Table Of Contents
Contents 1. General instructions ..............................1 2. Safety instructions ..............................1 3. Battery and device disposal ............................2 4. Application area ................................ 2 5. Product description..............................2 6. Technical data ................................3 7. Use .................................... 4 8. Setting of the acoustic alerts ............................. 5 9. -
Page 7: General Instructions
1. General instructions Please read this user’s manual carefully and make sure to know how the instrument works before using it. Keep the user’s manual to read up on details when required. 2. Safety instructions Avoidance of electric danger Never touch parts on voltage with the device or sensors! Protection of the measuring instrument Keep the instrument away from paint, solvent and glue and store it in a dry place. -
Page 8: Battery And Device Disposal
5. Product description The gas detector GSP1 is suitable in an outstanding way for the use within the area of heating and gas installations. The GSP1 can be used to examine gas pipelines, gas meters, gas tanks and other gas conducting components. The GSP1 can be used for room monitoring and concentration measurements as well. -
Page 9: Technical Data
72 x 130 x 26 mm Size (flex arm): 295 mm (incl. sensor) Temperature/humidity for storage: - 5° C ... + 40° C (23° F to 104° F) / 20 ... 80 % r.h. GSP1-charger: input: 230 V~/50Hz output: 6V=/500mA... -
Page 10: Use
“clean air”, i.e. not on the designated place of measuring. The length of the warm-up phase depends on the condition of the sensors. The longer the GSP1 was not in use, the longer takes the warm-up phase for the sensors. -
Page 11: Setting Of The Acoustic Alerts
8. Setting of the acoustic alerts The acoustic alert can be activated by a short press of the Loudspeaker-Symbol-button (LS). At the same time the yellow ALERT-LED starts blinking. The existence of gases can therefore be detected in an audio-visual way. The frequency of the acoustic alert is thereby positively related to the increasing gas concentration. -
Page 12: Charging
During recharging the green „POWER“-LED is blinking whereas the red „LowBatt“-LED is glowing permanently. When the battery is recharged completely both LEDs turn off and the GSP1 switches to the trickle charging mode. This status will be maintained until the device is unplugged. Charging the battery completely usually takes between four and five hours. -
Page 13: Safety Instructions
GSP1 may only be used for purposes described in this manual. The gas detector GSP1 is calibrated for methane gas (CH4). Other gases can be detected as well but their indicated intensity deviates from the calibrated data. For CxHy-gases (butane, propane, etc.) the deviation is relatively small. -
Page 14: Sensor Protection & Service
11. Sensor protection & service If there is a gas concentration (>2,000ppm) the sensor will switch off automatically. This avoids its irreversible destruction. In this case there are optical (LED elements are flashing) and acoustic (ALARM-LED blinks) warnings. Measuring can be started again by the ON/OFF-button. A defect sensor is indicated by all segments glowing except these two that are in the middle of the LED-Indicator. -
Page 15: Notes
12. Notes...
