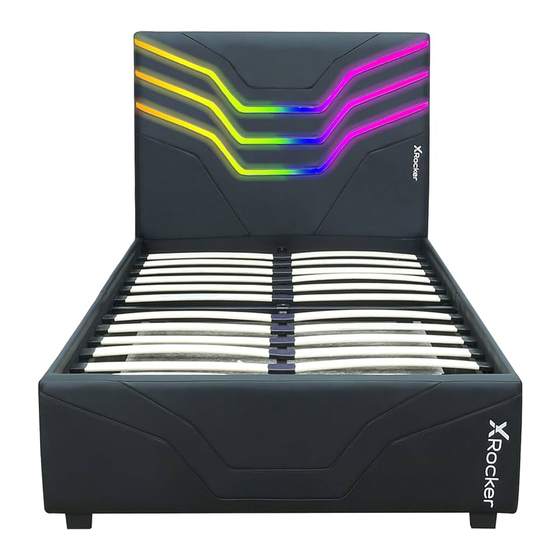

- Page 1 COSMOS RGB BED RGB 2112001 IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE Dimensions Width - 41.3in Depth - 79.3in Height - 42.5in IMPORTANT: You must Keep your original retail receipt as proof of purchase. KT-03/01/2021...
- Page 2 Safety and Care Advice Read Before Beginning Assembly ● Call 866-969-2603 if you need assistance. ● Work in a spacious area and near where the unit will be used, preferably on a carpet, or use a piece of the cardboard packaging to protect your floor and product. ●...
-
Page 3: Avant De Commencer L'assemblage
Safety and Care Advice Avant de commencer l'assemblage ● Si vous avez besoin d'aide, appelez notre numéro de service 866-969-2603. ● Travaillez dans un endroit spacieux et près du lieu où l'unité sera utilisée, préférablement sur un tapis, ou sur un morceau de l'emballage, afin de protéger le plancher et le produit. -
Page 4: Consejos Útiles
Safety and Care Advice Lea antes de comenzar a ensamblar Llame a nuestro número 866-969-2603 si necesita asistencia. ● Trabaje en un área espaciosa y cerca de donde su producto será utilizado, ● preferiblemente sobre una alfombra o utilice el cartón del empaque para proteger su piso y su producto. - Page 5 Components - Panels Please check you have all the panels listed below Headboard x1 Footboard x1 Side Panel x2 Side Panel x2 Support Leg x2 Leg x4 Bracket x2 Single Slat Cap x24 Side Rail x4 Bracket x2 Double Slat Cap x12 Center Rail x2 Wooden Slats x24 Center Rail x1...
- Page 6 Components - Fittings Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied are required. 20mm M6 Bolt x 28 35mm M6 Bolt x 12 40mm M6 Bolt x 20 Allen Key x 1 30mm M8 Bolt x 1...
- Page 7 Assembly Instructions Step 1 Step 1 Attach with 100% C x8 E x1 40mm M6 Bolt...
- Page 8 Assembly Instructions Step 1 Step 2 A x4 B x4 E x1 20mm M6 Bolt 35mm M6 Bolt...
- Page 9 Assembly Instructions Step 1 Step 3 Attach with Attach with 100% A x12 E x1 20mm M6 Bolt...
- Page 10 Assembly Instructions Step 1 Step 4 Attach with Attach with B x8 C x12 E x1 35mm M6 Bolt 40mm M6 Bolt...
- Page 11 Assembly Instructions Step 1 Step 5 Hang sub-assembly as illustrated, don't completely tighten the bolts until STEP 8 is complete.
- Page 12 Assembly Instructions Step 1 Step 6 Attach with 100% A x4 E x1 20mm M6 Bolt...
- Page 13 Assembly Instructions Step 1 Step 7 Attach with A x4 E x1 20mm M6 Bolt...
- Page 14 Assembly Instructions Step 1 Step 8 Attach with Attach with Then properly tighten all the bolts. 100% D x1 A x4 E x1 30mm M8 Bolt 20mm M6 Bolt...
- Page 15 Assembly Instructions Step 1 Step 9 9.1 Insert into 9.2 Press into , repeat the same procedure for the opposite side of the bed with a new 9.3 Insert ends of both slats into , then press into as illustrated. Repeat the same procedures going backwards for every row of slats.
- Page 16 Assembly Instructions Step 1 Step 10...
- Page 17 Assembly Instructions Step 1 Step 11...
- Page 18 Turn on/off the strip with memory Switch of 7 constant colors on the strip and a “7-color lit at the same time” on the strip Switch of flash and breathing color changing modes Swtich of 4 light flow directions a) From left to right b) From right to left c) From center to two sides d) From two sides to center...
-
Page 19: Troubleshooting
Contact a specialist. Risk of damage to the eyes! Never look directly into the LED. If you can’t fix the fault yourself, contact X Rocker support. Please be aware that any improper repairs will also invalidate the warranty and The light can only be used in dry indoor areas. - Page 20 The packaging consists of cardboard and marked plastics that can be recycled. – Take these materials to a recycling center. Technical data H3960-3.75M Article number 1250 x 10 x4mm * 3PCS Dimensions Illuminant 60 x LED/M Rated Voltage Capacity Protection class Degree of projection IP20...
- Page 21 Cleaning and user maintenance must not be carried out by children. REMEMBER - IF YOU ARE AT ALL UNSURE OR NEED SUPPORT OR TECHNICAL ADVICE, PLEASE CONTACT X ROCKER OR YOUR RETAILER YOU CAN ASK FOR HELP HERE: www.xrockergaming.com/pages/support...
