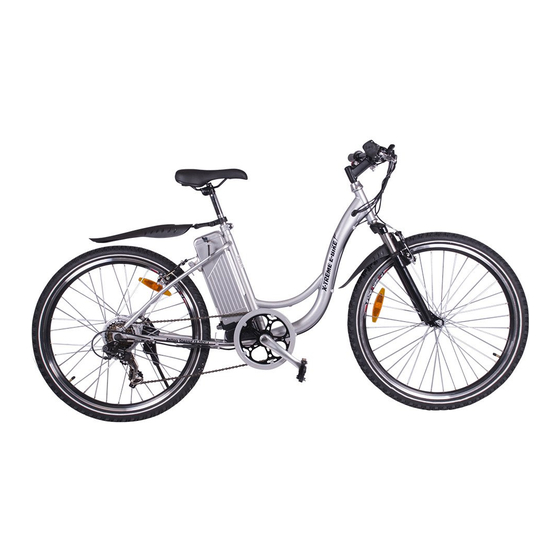

- Page 1 All manuals and user guides at all-guides.com XB-300SLA & XB-305SLA Electric Mountain bike Owner’s Manual...
-
Page 2: Important Information
All manuals and user guides at all-guides.com IMPORTANT INFORMATION FULLY CHARGE BATTERIES BEFORE FIRST USE - Batteries should be fully charged immediately when the each use for the recommended charge times (see below) • 12V12Ah Sealed Lead Acid Batteries: 6-8 hours FACTORS TO MAXIMIZE THE RANGE OF YOUR ELECTRIC BICYCLE ... -
Page 3: Table Of Contents
All manuals and user guides at all-guides.com TABLE OF CONTENTS Important Information………………………………………………………………………………………….. 1 Table Of Contents……………………………………………………………………………………………… 2 Terminology & Battery Systems………………………………………………………………………………… 3 XB-300SLA & XB-305SLA Electric Bicycle…………………………………………………………………..4 Required Tools………………………………………………………………………………………………… 5 Before You Ride……………………………………………………………………………………………….. 6-8 Safety Checklist………………………………………………………………………………………………..9-10 Bicycle Care…………………………………………………………………………………………………… 10-13 Basic Maintenance…………………………………………………………………………………………... -
Page 4: Terminology & Battery Systems
All manuals and user guides at all-guides.com XB-300SLA XB-305SLA... -
Page 5: Xb-300Sla & Xb-305Sla Electric Bicycle
All manuals and user guides at all-guides.com Warning / important - take notice of this symbol throughout this manual and pay particular attention to the instructions blocked off and preceded by this symbol. TERMINOLOGY POWER Systems – Pedal Assist - A sensor ring and pickup mounted near the bottom bracket allow the bicycle to sense forward pedaling and apply power. -
Page 6: Required Tools
All manuals and user guides at all-guides.com Your new bicycle was partially assembled in the factory and then partially disassembled for shipping. You may have purchase fully assembled and ready to ride OR in the shipping carton in the partially disassembled form. The following instructions wil your bicycle for years of enjoyable cycling. -
Page 7: Before You Ride
All manuals and user guides at all-guides.com BEFORE YOU RIDE ABOUT THIS MANUAL It is important for you to understand your new bicycle. By reading this manual before you go out on your first ride, you’ll know how to and enjoyment from your new bicycle. It is also important that your first ride on your new bicycle is taken in a controlled environment, away from cars, obstacles, and other d GENERAL WARNING Bicycling can be a hazardous activity even under the best of circumstances. - Page 8 All manuals and user guides at all-guides.com Seat Height RIDING POSITION In order to obtain the most comfortable riding p best possible pedaling efficiency, the seat heigh the rider’s leg length. The correct seat height sh over-extension, and the hips should not rock fro sitting on the bicycle with one pedal at its lowe that pedal.
- Page 9 All manuals and user guides at all-guides.com Stem Wedge Bolt Handlebar Adjustment & Heigh The stem’s “Minimum insertion” m Handlebar Maximum Height/ Binder Bolt the top of the headset. If the stem Minimum the stem may break or damage the Insertion Mark Exceeds 2 1/2”...
-
Page 10: Safety Checklist
All manuals and user guides at all-guides.com SAFETY CHECKLIST Before every ride, it is important to carry out the following safety checks: 1. Brakes • Ensure front and rear brakes work properly. • Ensure brake calipers are not over worn and are correctly adjusted. •... -
Page 11: Bicycle Care
All manuals and user guides at all-guides.com • Check that the frame and fork are not bent or broken. • If either is bent or broken, they should be replaced. 9. Accessories • Ensure that all reflectors are properly fitted and not obscured. •... -
Page 12: Throttle
All manuals and user guides at all-guides.com THROTTLE TAG (TWIST AND GO) Before you begin riding, turn the main power switch on, then start riding as you wou assisted bicycle. After you have begun to ride, slowly twist the throttle (on equipped m twist the throttle, the more motor power will be applied to the wheels. -
Page 13: Charger
All manuals and user guides at all-guides.com STORAGE When storing your batteries for a long period of time (longer than two months): • Charge your batteries every 90 days to avoid capacity loss. Batteries slowly self-discharge when left unused for a long cells are allowed to reach a critically low voltage, their lifespan and capacity will be permanently reduced. -
Page 14: Bicycle Assembly
All manuals and user guides at all-guides.com The charger may get warm to the touch, so make sure you charge them in an open area and do not lay anything on the charger Although you cannot over-charge the batteries, we recommend that you do not leave the charger plugged in for more than 24 If your charger shows a solid green light after charging for a short period of time, your battery may have been only partially d or this may be the sign of a partially worn out battery with reduced storage capacity. -
Page 15: Stem And Handlebars
All manuals and user guides at all-guides.com STEM AND HANDLEBARS (STANDARD QUILL-TY Remove the protective shipping cap from the stem wedge. Remove the Stem Plug from the stem. Loosen the Stem Bolt with a 6m Insert the stem into the head tube of the bicycle. Ensure that the Minim the headset. - Page 16 All manuals and user guides at all-guides.com WARNING: MINIMUM INSERTION LINE MUST BE HIDDEN WITHIN THE HEADTUBE OF THE BICYCLE. Binder Bolt if the stem is not inserted into the top nut to at least the stem bolt. Stem Bolt NOTE: Some models of bicycles may be equipped with a stem that has an adjustable angle.
- Page 17 All manuals and user guides at all-guides.com Wedge Head Tube Stem Installation (should be assem Compression Bolt Handlebar Insert the compression bolt through the to Top Cap threading into the star nut. Stem Headset Wedge Tighten compression bolt so it removes a Bearing Dust Cover Stem Clamp Bolts the fork to rotate smoothly.
-
Page 18: Forks
All manuals and user guides at all-guides.com Fork Forks There are two different types of forks that vary in styles and fork (Figure 1) consisting of stationary tubing with curved b suspension fork (Figure 2) consisting of inner stanchion tube inside of a straight outer fork leg. -
Page 19: Seat And Seat Post
All manuals and user guides at all-guides.com Seat Fixing Bolt SEAT AND SEAT POST Seat Clamp Nuts Your bicycle may come equipped with either a standard or Standard seat post Attach the seat to the seat post by first loosening the nuts o Quick Release end of the seat post into the seat clamp until it is at the top Lever... -
Page 20: Front Wheel
All manuals and user guides at all-guides.com Figure 2 Figure 1 Figure 3 Figure 4 Figure 5 INSTALLING THE FRONT WHEEL Make sure the brakes are loose enough to allow the brake pads easily. Place wheel into fork drop outs (Figure 1). Insert Quick Release Axle (Figure 2) as shown in Figure 3 &... -
Page 21: Disc Brakes
All manuals and user guides at all-guides.com DISC BRAKES Check the tightness of the six disc mounting bolts holding th you need to remove these bolts, be sure to us a thread-lock them. Make sure the two bolts securing the caliper adaptor bracke Thread the brake cable through the caliper as shown and sec Loosen the two caliper mounting bolts enough to allow the Caliper Adaptor Bracket Bolts... -
Page 22: Derailleur Systems
All manuals and user guides at all-guides.com DERAILLEUR SYSTEMS Freewheel Pulley Adjustment The derailleur system includes the font and rear derailleurs, the s Screw levers, and the derailleur control cables, all of which must functi shifting to occur. Guide Pulley DERAILLEUR Although the front and rear derailleurs are initially adjusted at th Adjustment... -
Page 23: Drivetrain
All manuals and user guides at all-guides.com Drivetrain The drivetrain of a bicycle refers to all parts that transmit power to the rear wheel including the pedals, chain, chain wheel, crank set and fr Pedals Pedals are available in a variety of shapes, sizes and materials, and each are designed with a particular purpose in mind. -
Page 24: Troubleshooting
All manuals and user guides at all-guides.com TROUBLESHOOTING PROBLEM POSSIBLE CAUSE Low batteries Charge batteries for reco Faulty or old batteries Replace batteries Bicycle has reduced range and/or speed Low tire pressure Inflate tires to recommen Brakes dragging against disc Adjust brakes and/or cal Riding in hilly terrain, headwind, etc. - Page 25 All manuals and user guides at all-guides.com Damaged wires Inspect all wires Charger shows a full charge in an Faulty charger Replace charger Faulty unusually short amount of time batteries Replace batteries Outlet has no power Check outlet for power Indicator light on charger not illuminated Blown fuse (Li-Po4 chargers) Replace fuse...
-
Page 26: Specifications
All manuals and user guides at all-guides.com SPECIFICATIONS SPECIFICATIONS Battery: 12V12ah Sealed Lead Acid Battery Battery: 24V/8AH LiPo4 Lithium Battery, 14 cells Frame: Steel Frame: Alloy 6061-T6, TIG welded Front Fork: Alloy suspension front fork Front Fork: Alloy suspension front fork Handlebar: Alloy, with adjustable alloy handlebar stem with sc Handlebar:... -
Page 27: How To Guide
All manuals and user guides at all-guides.com How To Check Battery Terminals If Battery Not Charging Properly 1.) Remove battery pack from bike 2.) Remove cap from end of battery that has the Four Slots (Key end). 3.) Remove cover plate. 4.) You are now able to look at the Red and Black wires;... -
Page 28: How To Replace Brake Lever
All manuals and user guides at all-guides.com After the cable is secured to the caliper, squeeze the lever several times to see if the brake rubs. At this point in time outward depending on if the brake is rubbing or if there is a space between the pad(s) and rotor. (hint: a half turn o pad can be the difference between having a brake lever that feels spongy to one that is not.) How To Replace Brake Lever 1.) Loosen brake cable at caliper to gain slack in cable. -
Page 29: How To Replace Pedal Shaft
All manuals and user guides at all-guides.com 7.) With the wire connector removed from the wires you can now remove the wheel assembly. How To Replace Pedal Shaft (Left & Right is based on sitting on bicycle) Keep parts laid out in order for easier installment. Make yourself a draw when removed. - Page 30 All manuals and user guides at all-guides.com...
-
Page 31: Wiring Diagram
All manuals and user guides at all-guides.com Wiring diagram (Diagram is for representational purpose only. Your bicycle's wiring system may differ) -
Page 32: General Information/Tech Support
All manuals and user guides at all-guides.com DO NOT RETURN TO STORE IF YOU NEED HELP CALL OR GO ONLINE 1-253-777-0690 www.x-tremescooters.com/suppo For General Information or Par Visit www.x-tremescooters.co Revised 09-04-13... - Page 33 All manuals and user guides at all-guides.com...
