Archive MT6070 i Series Installation Instruction

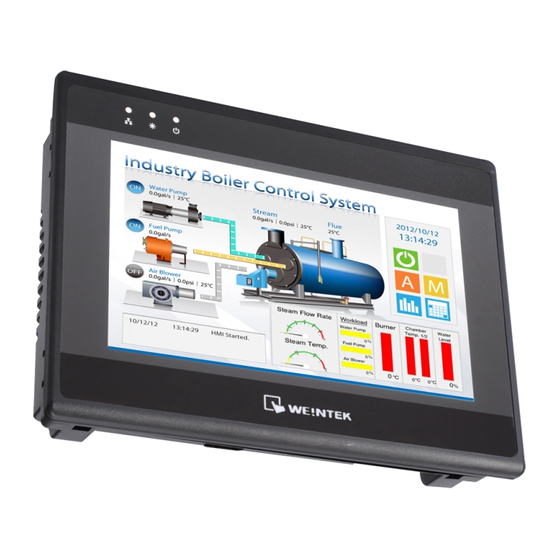

MT6070/8070/6100/8100 i series

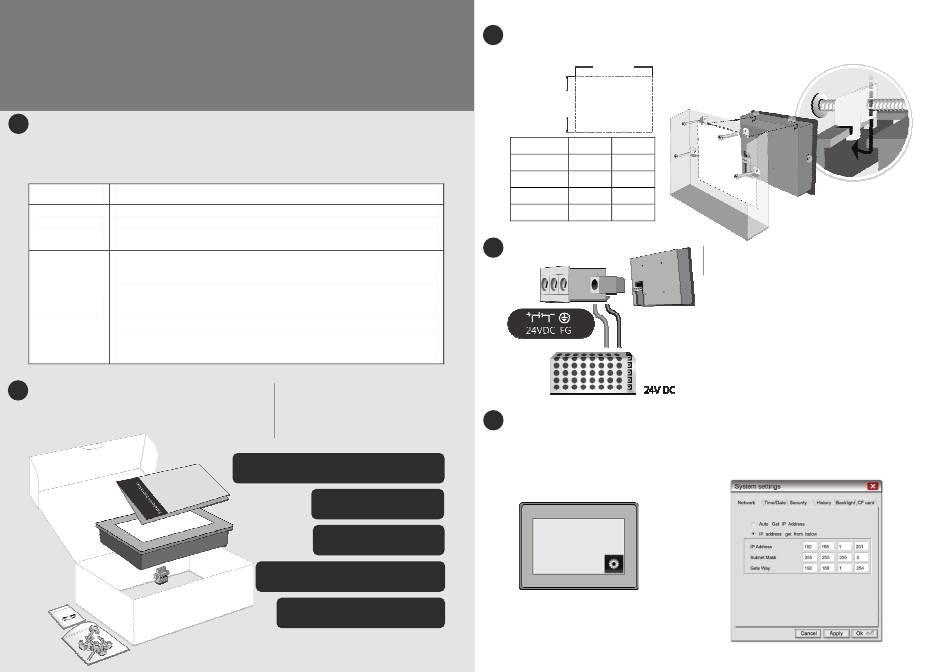

1 Installation and Startup Guide
This document covers the installation of MT6000/8000i Series HMI, for the detailed specifications and
operation, please refer to Datasheet and EasyBuilder 8000 User Manual.
Install Environment:
NEMA Rating MT6000/8000i Series HMI is Nema 4X rated.
The MT6000/8000i Series has been tested to conform to European CE
Electrical requirements. This means that the circuitry is designed to resist the effects of
Environment electrical noise. This does not guarantee noise immunity in severe cases. Proper
wire routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. .Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
2 Unpacking the Unit
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(5)
(4)
Installation Instruction
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) MT6000/8000i HMI *1
(3) Power Connector *1
(4) Brackets & Screws V2.1 *1 pack
(5) Fuse 1.25A/250V 5*20mm *1
Installation Instructions
3
Secure the operator panel in position, using all the fastening holes and the provided brackets
(A)
and screws:
Cutout
(B)
Type A(mm) B(mm)
MT6070iH 192 138
MT8070iH 192 138
MT6100i 259 201
MT8100i 259 201
Power Connections
4
System Settings
5
When HMI powered up and displays image,
click the system setting button.
(Default System Password: 111111)
It is necessary to connect the HMI to
your network through a RS-45 cable.
( Note 1: For the details of HMI
DIP SW function settings please
refer to Part 8 in this guide. )
NOTE:
1. Connect positive DC line to the '+24V'
terminal and the DC ground to the '0V' terminal.
2. Please do not connect HMI with PLC and PC
simultaneously to prevent potential difference
from destroying USB ports of HMI and PC.
To make a connection, strip about 3/8" of
insulation off the end of the wire, turn the
connector screw counterclockwise until the gap
is wide open, insert the wire all the way in, and
turn the screw clockwise until it's tight.
Go to the Network tab, you may choose
to auto get DHCP IP, or designate your
own IP.
