INSTRUCTION MANUAL
CAT-BACK SINGLE EXHAUST
CHEVY TRUCK 7.4L 2/4WD
STANDARD CAB, LONG BED
H
A
G
ITEM
PART #
A
30039
B
788025
C
50030R
D
50032R
E
500360
F
500033
G
500551
H
OHD300
Thank you for purchasing our GIBSON EXHAUST SYSTEM for your
vehicle.
If you need further assistance, please do not hesitate
to call our Technical Department at (800) 528-3044, Monday
through Friday, 8:00 AM to 5:00 PM.

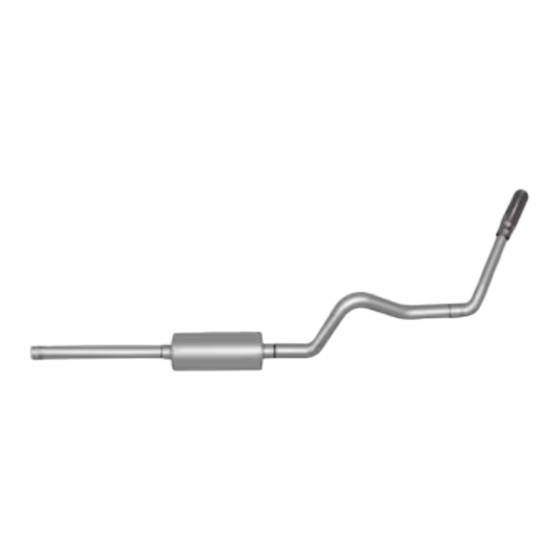

PART # 315555L
B
G
QUANTITY
1
3" X 39" HEADPIPE
1
SUPERFLOW MUFFLER
1
3" OVERAXLE TAILPIPE
1
3" TURNOUT TAILPIPE
1
3-1/2" STAINLESS STEEL TIP
1
TAILPIPE HANGER
2
MUFFLER HANGER
1
3" CLAMP
C
F
DESCRIPTION
E
D
Advertisement
Table of Contents
Related Manuals for Gibson 315555L
Summary of Contents for Gibson 315555L
- Page 1 500551 MUFFLER HANGER OHD300 3" CLAMP Thank you for purchasing our GIBSON EXHAUST SYSTEM for your vehicle. If you need further assistance, please do not hesitate to call our Technical Department at (800) 528-3044, Monday through Friday, 8:00 AM to 5:00 PM.
- Page 2 SUGGESTED TOOLS: 15mm SOCKET, 9/16” SOCKET, ½” WRENCH, ½” SOCKET, JACK STAND,HACKSAW Lay out the GIBSON EXHAUST SYSTEM on the floor so it looks like the drawing.(Note: Drawing is not exact but for placement of parts only.) Raise vehicle and support with stands. Remove stock hangers leaving rubber grommets in place.
