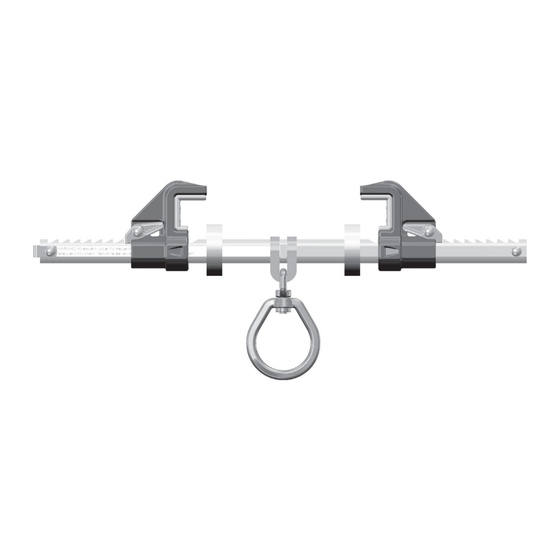

BANTAM BEAMER
ADJUSTABLE FROM 3.5 -14 inches
Model # A555000
WARNING:
ALL USERS OF THIS EQUIPMENT MUST READ AND
UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY
RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE
FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL USERS OF THIS PRODUCT MUST BE PROPERLY
INSTRUCTED ON HOW TO USE THE DEVICE. AVOID CONTACT
WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL, ELECTRICAL,
ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
Patent US # 8,312,966 / US # 8,646,575 / US 8,973,705 B2
V2.1-B
Advertisement
Table of Contents
Summary of Contents for Werner A555000
- Page 1 BANTAM BEAMER ADJUSTABLE FROM 3.5 -14 inches Model # A555000 WARNING: ALL USERS OF THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT.
- Page 2 PURPOSE The A555000 is an anchorage connector designed to function as an interface between the anchorage and a fall arrest, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector” in this manual include, and apply to, the A555000.
- Page 3 PERFORMANCE: REGULATORY COMPLIANCE: ANSI Z359.18 Type A, ANSI Z359.7-2019, Minimum Breaking Strength: 5000-lbf (22kN) Maximum Capacity: One worker when OSHA 29 CFR 1926.502, OSHA 29 CFR 1910.140, used as a single point anchorage connector EN 795:2012 Type B (CE 2777) for personal fall arrest or restraint system COMPONENT MATERIALS: DIMENSIONS:...
- Page 4 LOADING CONDITIONS DIAGRAM Placement at or below a user’s working height requires integration of an ANSI Z359 compliant energy absorbing connecting component (Energy Absorbing Lanyard or Self Retracting Lifeline) and free fall limits of the connecting component must be followed. The beam anchor must be attached to the I-beam flange facing the user (top flange if above, bottom flange if below, etc.).
- Page 5 *The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the arrest of a fall to a maximum of 8 kN (1800-lbf ). In the EU these forces must be limited to 6kN (1350-lbf ). ( ANCHOR POINT ) WORK SURFACE Inspect retaining...
- Page 6 WARNING LABEL LOCATIONS BREAKING STRENGTH: 5000 lbf (22.2 kN) MFG: MM/YYYY WARNING: All persons using this equipment must read, understand and follow all instructions. Failure to do so could result in serious injury or death. Compliance: OSHA 1926.502, OSHA 1910.140, ANSI Z359.18 Type A, ANSI Z359.7(19) EN 795:2012 Type B CE 2777 WARNING: ALL USERS OF THIS EQUIPMENT MUST READ AND...
- Page 7 MAINTENANCE, CLEANING AND STORAGE Cleaning periodically will prolong the life and proper functioning of the product. The frequency of cleaning should be determined by inspection and by severity of the environment. Clean with compressed air and/or a stiff brush using plain water or a mild soap and water solution. Do not use any corrosive chemicals that could damage the product.
- Page 8 Notified Body responsible for the EC type examination and ongoing conformity: SATRA Technology Europe Ltd. Bracetown Business Park Clonee Dublin D15 YN2P Ireland Tel: +353 (0)1 437 2484 Werner Co. 93 Werner Road Greenville, PA 16125 1(888) 523-3371 / www.wernerco.com 105548-05 REV F 5/21...
