North Light XH-B01020 Instruction Manual

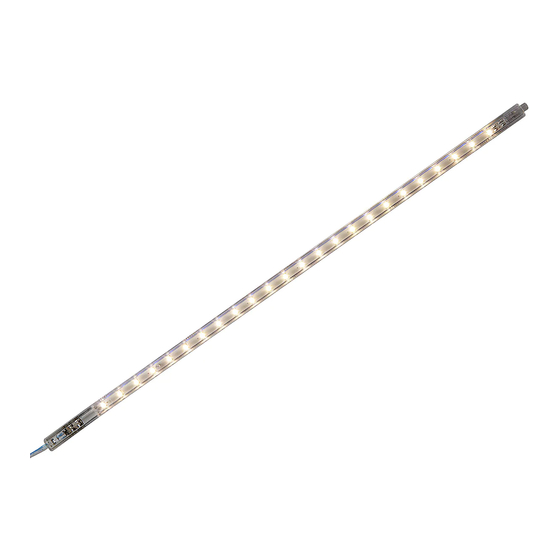

LED Strip Light
Please read the entire instruction manual before using
the product and save it for future reference. We reserve
the right for any errors in text or images and any necessary
changes made to technical data. If you have any questions
regarding technical problems please contact Customer
Services.

Safety

• The product is intended for indoor use only.
• The product must not be modified, dissassembled or
used for any other purpose than that for which it has
been designed.
• Make sure that the leads are not set against sharp
corners or edges.
• This is not a toy! Do not let children play with
the product or be in its immediate proximity without
adult supervision.
• The transformer may not be used if any part is damaged.
If so, it should either be discarded or repaired by
a qualified repairman.
• Do not cover the transformer or lights with anything that
will hinder ventilation such as e.g. foil, paper, plastic, etc.
• The rating label containing the model number may not be
removed or be made unreadable.
• The transformer is designed for supplying power to
an LED lighting fixture, max 15 W.
• Do not look straight at the light source as there is risk
for eye injuries!
• Never expose the product to moisture or humidity.

Package contents

36-3848 1 x Warm White LED Strip Light
36-3849 1 x Blue LED Strip Light
GREAT BRITAIN • CUSTOMER SERVICE
tel. 08545 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk
Art.no 36-3848 Model XH-B01020
36-3849 XH-B01020

Mounting

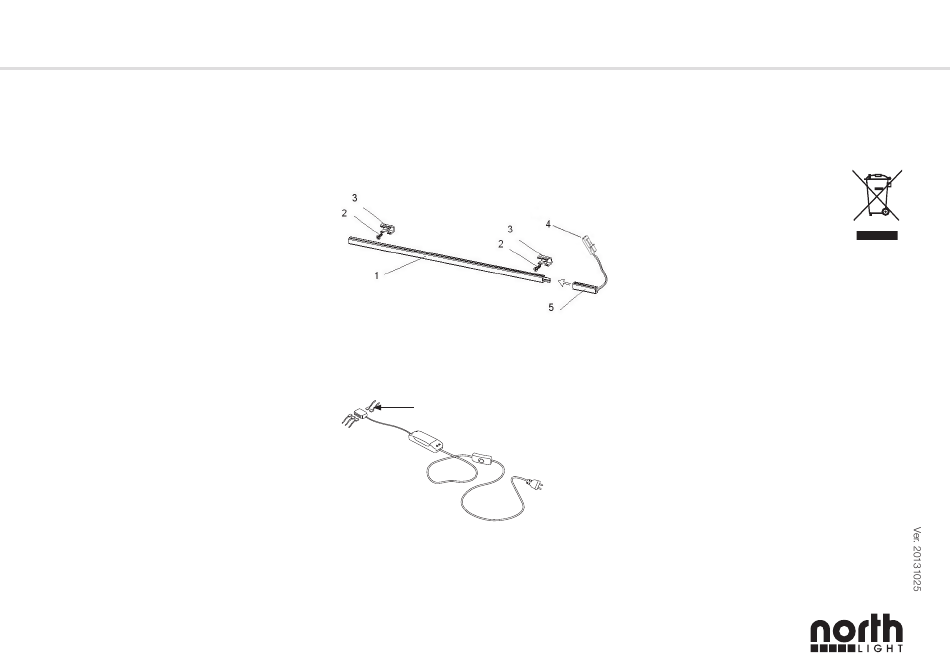

1. Screw the clip brackets (3) securely onto a flat surface
using screws (2). Keep a distance of about 14 to 20 cm
between brackets.
2. Connect the power connector (5) to the LED strip (1).
3. Press the LED strip firmly into the clips (3), making sure
that they sit securely.

Operation

1. Connect the lead end from the light fixture
to one of the junction box's DC connections
(art.no 36-3828/36-3847).
2. Connect the plug to a wall socket.
3. Power to the light fixture is operated by the in-line switch.

Care and maintenance

• Always unplug the mains lead before cleaning.
• Wipe with a soft, lightly moistened cloth.
Never use strong solvents or detergents.

Disposal

Follow local ordinances when disposing of this
product. If you are unsure of how to dispose of
this product, please contact your municipality.

Specifications

LED Strip Light
LEDs 24 warm white LEDs (3,200 K),
2 W total. (36-3848)
24 blue LEDs (465 nm*),
2 W total. (36-3849)
Length 30 cm, Ø 1 cm
* The blue light emitted lies outside the Kelvin scale.
The measurement is therefore given in nm.
