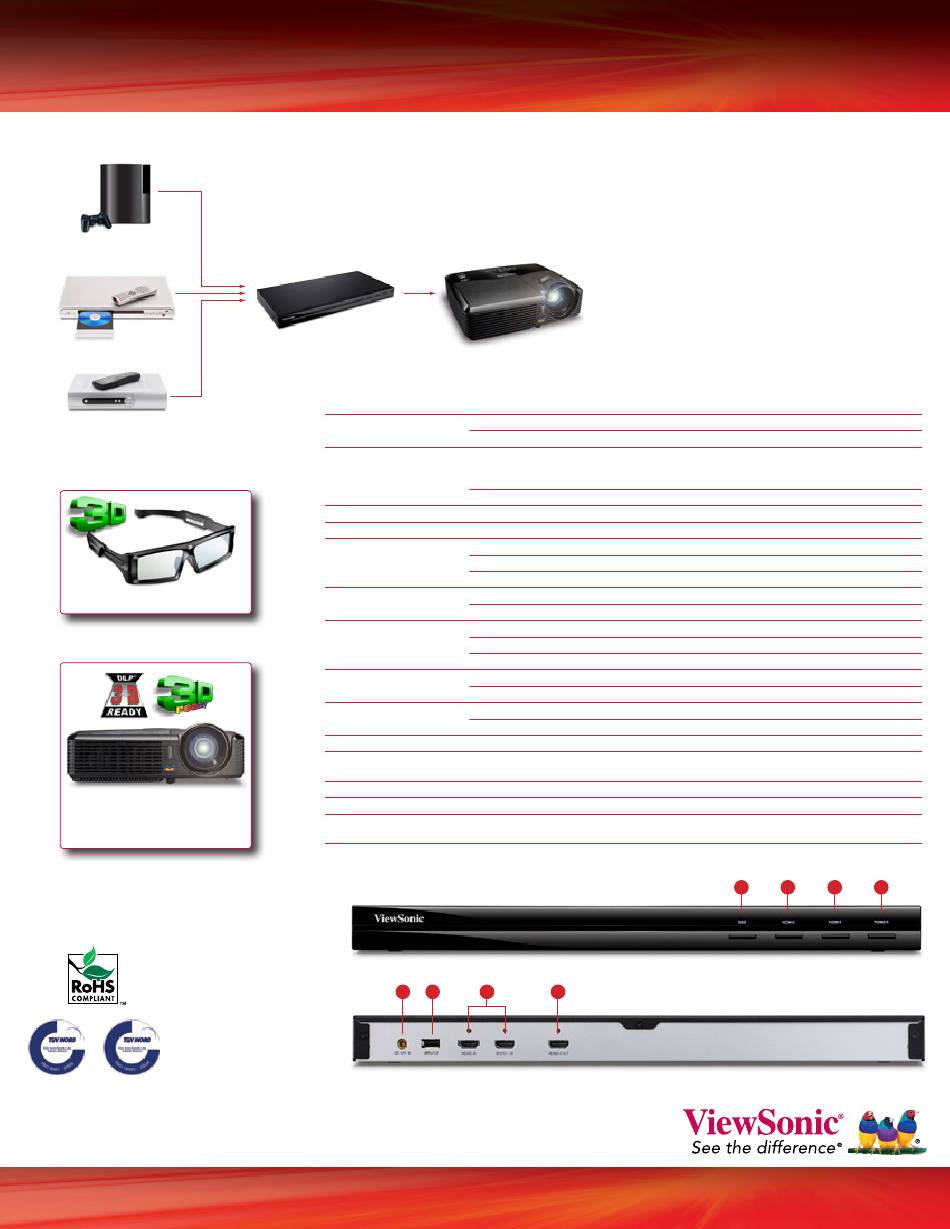

VP3D1
PlayStation ® 3 3D
Blu-ray 3D Player
™
3D Set Top Box
Optional Accessory
ViewSonic PGD-250 3D Glasses
®
Compatible Projectors
ViewSonic PJD5523w, PJD6251,
®
PJD5133, PJD5233, PJD6531w, Pro8450w
and Pro8500 or DLP Link 3D-Ready
Projector with HDMI
ViewSonic Corporation's QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*ViewSonic PGD-250 3D glasses sold separately. Specifications and availability are subject to change without notice. Selection, offers
and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein
are the property of their respective companies. Copyright © 2011 ViewSonic Corporation. All rights reserved. [15565-01B-07/11] VP3D1
For more product information, visit us on the web at ViewSonic.com
3 D H D V i D e o P r o c e s s o r
VP3D1 HD Video Processor
resoLUTioN
ViDeo
coLor DePTH
AsPecT rATio
coNNecTor
PoWer
OPERTATING
coNDiTioNs
DiMeNsioNs (WxHxD)
WEIGHT
REGULATIONS
PACKAGE CONTENTS
WArrANTY
oPTioNAL Accessories
coMPATibLe ProjecTors
01 – Power button
02 – HDMI 1 button
03 – HDMI 2 button
04 – SBS button
05 – DC-in port
06
– USB service port
07
– HDMI-in ports
08
– HDMI-out port
ViewSonic
3D-Ready Projector
– or –
DLP Link 3D-Ready
Projector with HDMI
3D Output HD 720p/120Hz (native)
Maximum Output HD 1080p (non 3D mode)
3D Mode Side-by-Side: 1080i / 60Hz, 1080i / 50Hz
Frame-Packing: 1080p / 24Hz, 720p / 60Hz, 720p / 50Hz
Top-and-Bottom: 1080p / 24Hz, 720p / 60Hz, 720p / 50Hz
2D Mode NTSC 480i/p, PAL SECAM 576i/p, HD 720p/1080i/1080p
30 bits, 1.07B color (10+10+10)
16:9 (native), 4:3, auto
Digital Input HDMI v1.4a (x2)
Digital Output HDMI v1.3
USB Type A (service/firmware upgrade)
Voltage 12V DC / 3.9A
Consumption 20W / < 1W (standby mode)
Temperature 41°F - 104°F (5°C - 35°C)
Humidity 20% - 90% (non-condensing)
Altitude 0 – 16,000 ft. (4,877 m)
Physical 16.9" x 1.2" x 8.2" (428.6mm x 30.7mm x 208.5mm)
Packaging 19.9" x 3.6" x 11.8" (505mm x 90mm x 300mm)
Net 2.7 lb (1.2 kg)
Gross 5.3 lb (2.4 kg)
FCC B, CE (with C-Tick), WEEE, RoHS
ViewSonic VP3D1 video processor, HDMI cable, power cable,
AC power adapter, Quick Start Guide, ViewSonic User Guide CD
1-year limited warranty on parts and labor.
ViewSonic PGD-250 active 3D shutter glasses
ViewSonic PJD5523w, PJD6251, PJD5133, PJD5233, PJD6531w,
Pro8450w, Pro8500 or DLP Link 3D-Ready projector with HDMI
5 6 7 8
Easy to use:
1. Simply connect the VP3D1 between your
3D-Ready DLP Link projector and 3D HD
video source.
2. Insert your 3D Blu-ray movie or 3D game
discs into the 3D Blu-ray player or
3D-enabled gaming console.
3. Launch the movie/game, wear the ViewSonic
PGD-250 3D glasses* and enjoy 3D now!
4. Should you see two images side-by-side,
press the "SBS" button on the front of the
VP3D1 3D HD video processor. This will
auto-adjust to the correct viewing mode.
4 3 2 1
