Summary of Contents for Shimpo PH-100A

  • Page 2: Features And Benefits

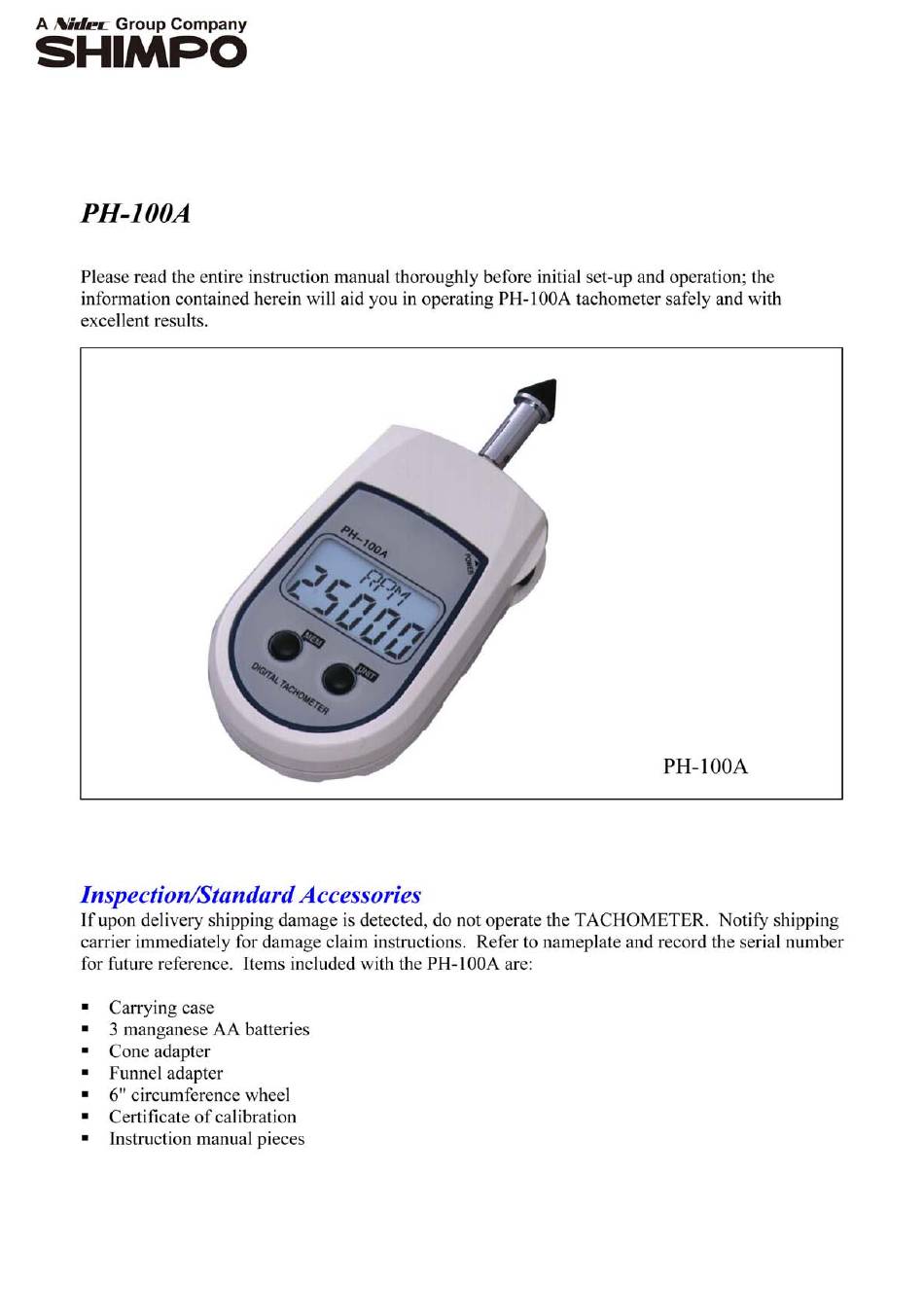

    Features and Benefits PH-100A tachometer incorporates the latest microprocessor technology and offers: Multiple measurement types: total revolutions (rev); revolutions per minute (rpm); surface speed: m/min, y/min, in/min, ft/min; and length: meters, yards, feet and inches. Compact, pocket-size design 14 reading memory: minimum, maximum, final, 10 selectable measurements and an average of memory measurements, up to ten.

  • Page 3: Standard Accessories

    Dimensions Standard Accessories Description Dimension Drawing Cone Adapter, Standard D =12.5mm Funnel Adapter, Standard D = 12.5mm Master Wheel FPM (6” cir) D = 48.53mm...

  • Page 4: Operation

    Low battery display: When the battery is weak, "LO BAT" will flash. Tachometer's display: Displays measuring units. Max/Min display: Displays minimum and maximum value. Main display: 5 digit LCD displays measurement readings Operation Contact measurements Measuring rotation speed using the cone or funnel-shaped contact probe. 1.
  • Page 5 Caution: When making surface speed or distance measurements, insure that the 6" circumference wheel's perimeter is parallel to the object to be measured. Do not push the wheel against the object with great force. Note: When using the master wheel, accuracy can be affected as much as 0.4% of reading. MEMORY FUNCTION This tachometer's memory capabilities include minimum, maximum, last measurement, 10 selectable measurements and an average of the memory measurements.

  • Page 6: Troubleshooting

    Confirm that the POWER button is operating properly. Confirm that the batteries are functioning properly and that they are inserted into the tachometer with correct polarity. Specifications Model PH-100A Display 5 digit 12 mm height LCD Revolutions per Minute (rpm) 1.0 - 25,000...
  • Page 8 Manufactured by 1 Terada, Kohtari, Nagaokakyo-city, Kyoto, 617-0833 Japan Phone: +81-(0)75-958-3608 Fax: +81-(0)75-958-3647...
