- Page 1 User Guide 4-Port SuperSpeed USB 3.0 PCIe Adapter Model No.: XM-UB3204 For the most up-to-date information, please visit www.x-mediausa.com Version 2.0...
- Page 2 4-Port USB 3.0 SuperSpeed PCIe Adapter Contents Package Contents ......................3 Chapter 1 Product Overview …….………………….….……………………….………………………… 3 1.1 Introduction ……………………….…………………………………….………………….. 3 1.2 Features …….………………….….…..……………………………………………………… 3 Chapter 2 Installation Guide ………………..…………………………………………..………………….. 4 2.1 Hardware Installation ………………………..……….……………………..………….. 4 2.2 Software Installation …………………….…..…………………….…………..………… 4 2.2.1 For Windows 7 ….………..………….…..……….………...……..…………….

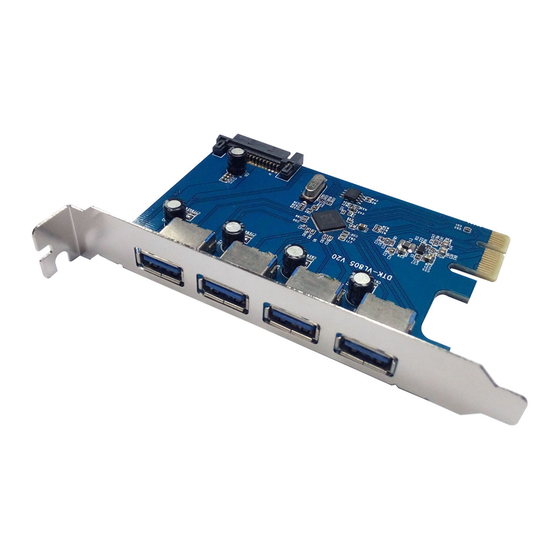

- Page 3 Product Overview 1.1 Introduction The Adapter, XM-UB3204 SuperSpeed USB 3.0 PCI Express Adapter add 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data transfer rate up to 5Gbps, and it is backward compatible with USB 2.0 and USB 1.x devices. Plus, with a SATA Female power connector cable, each USB 3.0 port can provide up to 900mA of power to devices that draw power from a host bus...
- Page 4 4-Port USB 3.0 SuperSpeed PCIe Adapter Chapter 2 Installation Guide 2.1 Hardware Installation To Install the Adapter, please follow these steps listed below: 1. Turn off your computer and unplug the power cord and all cables 2. Remove your computer’s case cover 3.
- Page 5 4-Port USB 3.0 SuperSpeed PCIe Adapter 2. Click “Next” to continue. Click “License Agreement” and then click ”I Agree” to enter next step. Click “Next” to start the driver installation. Page | 5...
- Page 6 4-Port USB 3.0 SuperSpeed PCIe Adapter Select ”VIA XHCI Host Controller Driver” and click “NEXT”. To check the driver installation status. The dialogue will show you if the components of the driver is installed successfully. Page | 6...
- Page 7 4-Port USB 3.0 SuperSpeed PCIe Adapter After installation, please click “Finish”. To verify successful installation in Windows: From the main desktop, click on “My Computer”, then double-click on “Control Panel”, “System”, and “Device Manager”, and “Universal Serial Bus controllers” to “NEC Electronics USB3.0 Host Controller”.
