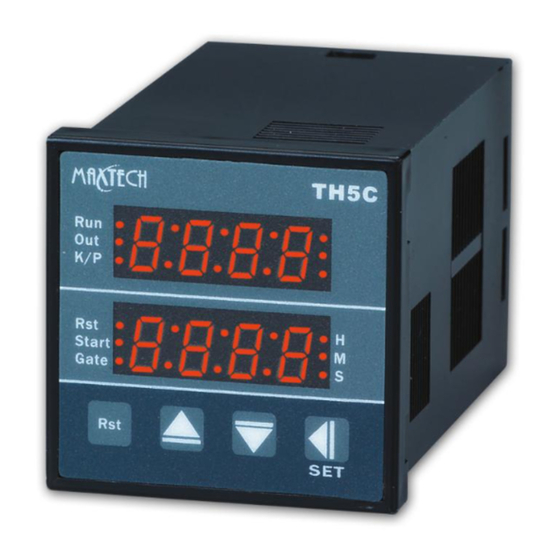

MaxTech TH5C Operation Manual

Operation Manual
Timer
TH5C
1 Panel Function
LED
Run：flickering when counting
Out：lighting when output "on" Run
Out
K/P： lighting when key locked
K / P
Reset：lighting when reset operation
Start：lighting when starting
Gate：lighting when stopping
Rst
H：lighting when hour selected Start
Gate
M： lighting when minute selected
S： lighting when second selected
Rst
Reset key
Use for resetting or entering SV
2 Set Time Method
Setting time can be changed during counting or stop counting.
Pushing 1 sec for LED flickering then push
Pushing to move digit position, it is cycle .
It must push key to enter the SV after setting.
Rst
3 Parameter Flow Chart & Function
Setting value can be changed during counting or stop counting
Pushing
Returning to initial
display after 20 sec
Push 3 sec
no operation.
Time ranges
Use
S
Select time range
Upper display (PV)
TH5C
Displaying counting value or
parameter
Below display (SV)
Displaying setting value or parameter
H
M
S
Rst
Moving digit or switching display
SET
( pushing it for 3 sec to enter set
mode )
or to increase or decrease the set time.
key for 3 sec then use & key to select the mode.
Time range selection
9.999sec
99.99sec
999.9sec
9999sec
999.9min
setting time range.
.......
M
S
S
http://www.maxthermo.com
Shift key
Decreasing key
Increasing key
Return 1tE (time range)
4 Timing Charts
Mode A :
9999min
Signal ON Delay
(Timer resets when
999.9hr
power comes on)
9999hr
99min59sec
Mode A1 :
99hr59min
Signal ON Delay2
(Timer resets when
power comes on or
when START signal
goes off)
H
M
Up / Down counting
Use setting up / down counting.
Up Down
Output mode
Use setting output mode.
A A1 A2 A3 b b1
Select time operation
* Refer to output mode diagram. TH5C without A1, A2, A3, B1, B2, C, D, F
Output time
Use setting time range.
Hold 0.1S 0.5S 1S 5S
* Output mode C, D, E, F without this function
Input time
Use setting time range.
1ms 20ms
* 1ms=1/1000sec * TH5C-8 without this function
Key lock mode
Use setting lock mode.
ALL UNLOCK RESET ADJ
* Push + for 3 sec to perform lock or release lock
Output contactor
Use setting the output contactor.
2C 1A1C
* TH5C-8S and TH5C-11S without this function
Either one-shot output or sustained output can be selected
Timing starts when the start signal goes ON.
While the start signal is ON, the timer starts
when the power comes ON or when the
reset input goes OFF.
The control output is controlled using a
sustained or one-shot time period.
Timing starts when the start signal goes ON.
and is reset when the start signal goes OFF
While the start signal is ON, the timer starts
when the power comes ON or when the
reset input goes OFF.
The control output is controlled using a
sustained or one-shot time period.
b2 C d E F
10S 15S 20S
SET
