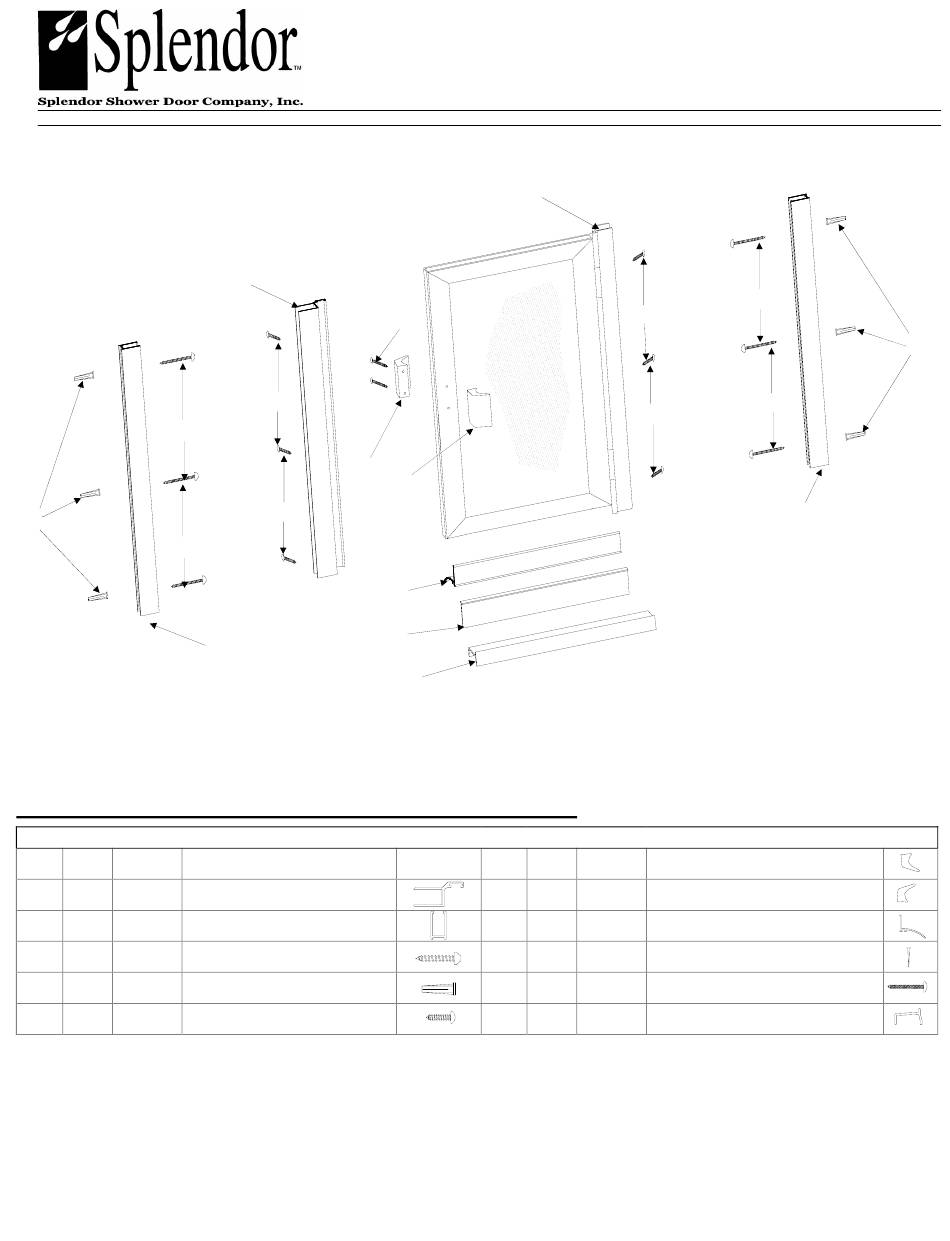

Parts List - Unit No. 1000 / 9000 Series
Label Part # Quantity Description
A
201
1
Hinge Jamb With Door Attached
B
202
1
Latch Jamb with Magnet
C
203
2
Wall Channel
D
110
6
# 8 X 1 1/2" Pan Head Screws
E
113
6
Plastic Wall Anchors
F
111
6
# 6 X 3/8" Pan Head Screws
To install your Splendor Shower Door enclosure you will need the following tools:
Layout and identify all parts using these details as reference. Caution tempered glass cannot be cut or drilled.
B
F
H
F
C
-
Hacksaw
-
Philips Screwdriver
-
Level
-
3/16" and #32 drill bit
-
Silicone
Instruction Manual
A
K
G
I
J
L
Label Part # Quantity Description
G
214 F
H
214 M
I
204
J
VM-2
K
114
L
209
1000/9000 Series
D
F
D
F
1
Female Handle
1
Male Handle
1
Drip Bar
1
Drip Bar Vinyl
2
# 6 X 1 1/4" Round Head Screws
1
Damstrip
E
C
Advertisement
Table of Contents
Summary of Contents for Splendor 1000 Series
- Page 1 Plastic Wall Anchors # 6 X 1 1/4" Round Head Screws # 6 X 3/8" Pan Head Screws Damstrip To install your Splendor Shower Door enclosure you will need the following tools: Hacksaw Philips Screwdriver Level 3/16” and #32 drill bit Silicone Layout and identify all parts using these details as reference.
- Page 2 Special Note: The model 1000 and 9000 shower doors are designed to be installed as either a hinge left or a hinge right swing door. Therefore, the wall channels (C), the hinge jamb (A), and the latch jamb (B) are cut at the factory, approximately 5/8” longer than is necessary. During this installation, you will be instructed when to cut the above components to achieve a flush look at the top.
- Page 3 Step4 Attach the exterior handle (H) and the interior handle (G) to the door with two # 6 – 32 X 1 1/4” round head screws (K). Step5 Next, take the drip bar with tape (I) and the clear drip bar vinyl (L). Slide the vinyl into the groove at the bottom of the drip bar.
