Summary of Contents for Sound Devices SL-6

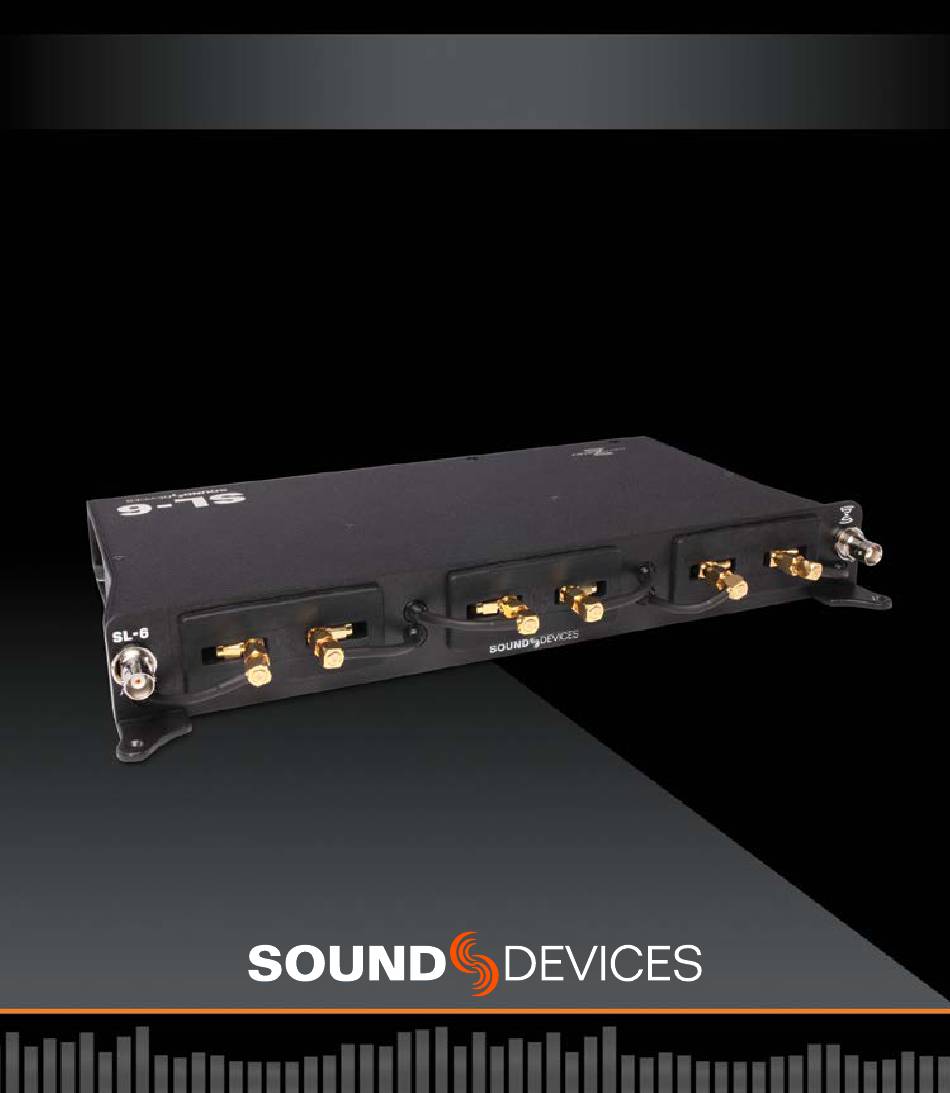

- Page 1 QUICK START GUIDE SL-6 Powering and Wireless System for the 688 Field Production Mixer...
- Page 2 Email Support: Call Support: This Quick Start Guide provides the necessary steps to set up and begin using your SL-6 with your mixer right out of the box. It also provides a brief overview of features, warranties and licensing information.
- Page 3 • Accepts three dual-channel slot-in wireless receivers for a total of six The SL-6 can be connected only to the top panel of the 688 mixer. Tools needed to attach the channels accessory to your mixer include a small Phillips (cross-head) screwdriver and a flat tool, such as a ®...
- Page 4 SL-6 may be turned off via the POWER > SL-6 Power Outputs. Note: If the 688 is powered on, but no power source is provided to the SL-6, the SL-6 menu options on the mixer will appear but be disabled.
- Page 5 This shutdown procedure would only apply to the mixer if, at the time of power loss to the SL-6, the mixer itself did not have any power source in place. June 4, 2015 If the mixer has been supplied with separate battery or DC power, then the mixer would continue operating under its own power and provide power to the CL-6 accessory, if attached.
- Page 6 Product specifications and features are subject to change without prior notification. Sound Devices, LLC warrants the SL-6 against defects in materials and workmanship for a period of ONE (1) year from date of original retail purchase. Users who register their product directly with Sound Devices Technical Support by mail, online, or phone, will receive an additional ONE (1) year of warranty coverage, extending the complete warranty period to TWO (2) years from the date of original retail Copyright ©...
- Page 7 www.sounddevices.com Part # 6140.000...
