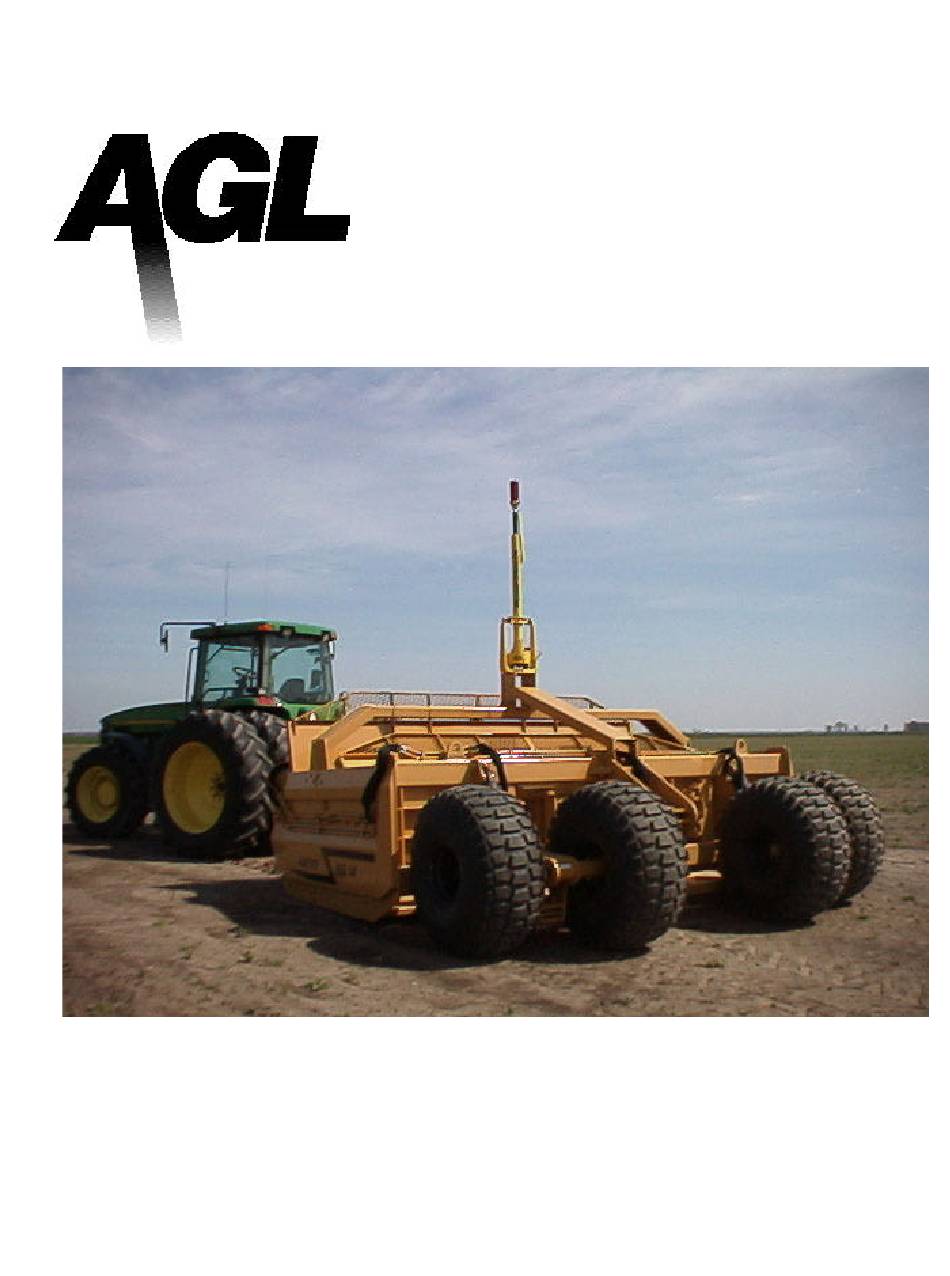

- Page 1 OPERATORS MANUAL MODEL 304 Machine Control System Model 304 Manual, Version 0120, August 2001 AGL Corporation 2202 Redmond Road Jacksonville, Arkansas 72076 (501) 982-4433 (501) 982-0880 (fax) www.agl-lasers.com sales@agl-lasers.com...
- Page 2 NUMBER OF STATIONS SURVEY SYSTEM OFF SENSOR SELECT START PRESET SURVEY AUTOMAST ON GRADE ACTIVATE AUTOMAST AUTO STOP BLADE 304 CONTROL BOX OFF SENSOR 9-41007 360° LASER MAST BLADE DETECTOR 9-09102 MODEL 304 MACHINE CONTROL SYSTEM COIL CORD 9-09826 POWER CABLE 1-14006...
- Page 3 Machine Control System OPERATING MANUAL OVERVIEW The 304 Machine Control System is a powerful addition to your land leveling and earth moving machinery, yet it is easy to use. Some of the many features are as follows: • AUTOMATED CONTROL OF BOTH ON/OFF AND PROPORTIONAL VALVES.
-
Page 4: Operating Modes
OPERATING MODES Pressing the SELECT button wakes the Model 304 form the SLEEP mode. The ELEVATION display lights showing either the default 00.00 grade elevation, or one which had been programmed in previously. Unless power is removed, the system is never OFF. - Page 5 SLEEP: Pressing the SELECT button will, after a short delay, put the MODEL 304 into the SLEEP mode. Though the display goes dark, all changes made will be stored as default until repro- grammed.
-
Page 6: Menu Items
MENU ITEMS: The menu instructs you in how to change the factory default settings. You may customize the system to suit any equipment, or to your personal preference. To activate the MENU press the AUTO BLADE and SELECT buttons at the same time. The display will show the flashing menu NUMBER on the left and the menu VALUE on the right. -
Page 7: Other Features
BOTTOMED out on the mast and shuts down the drive. The panel beeps to tell the operator. The 304 will automatically try to restart the mast but will not allow current high enough to damage the drive circuit or the motor. -
Page 8: Cable Information
CABLE INFORMATION POWER INPUT: GROUND BLACK 12 OR 24 V INPUT MAST & VALVE (14 PIN CONNECTOR): AUXILARY POWER RED 16g NOT CONNECTED SOLENOID COMMON ORANGE 16g SENSOR ENCODER RED 20g SENSOR GROUND BLACK 20g SENSOR LOW GREEN 20g SENSOR HIGH WHITE 20g BLADE DOWN WHITE 16g... -
Page 9: Specifications
SPECIFICATIONS INPUT POWER: 12 or 24 VDC Operation. Negative Ground. Nominal 10 Amp Minimum Current Requirement. 20 Amp Maximum with Auxiliary Outputs. Note: 12 VDC Mast Motor and Solenoid Valve Coils are Standard. Specify 24 VDC if Required. OUTPUT POWER: 5 Amp Maximum per Valve Solenoid or Mast Drive. - Page 10 AGL CORPORATION 2202 REDMOND ROAD PO BOX 189 JACKSONVILLE, ARKANSAS 72076 (501) 982 4433 (501) 982 0880 www.agl-lasers.com sales@agl-lasers.com...
