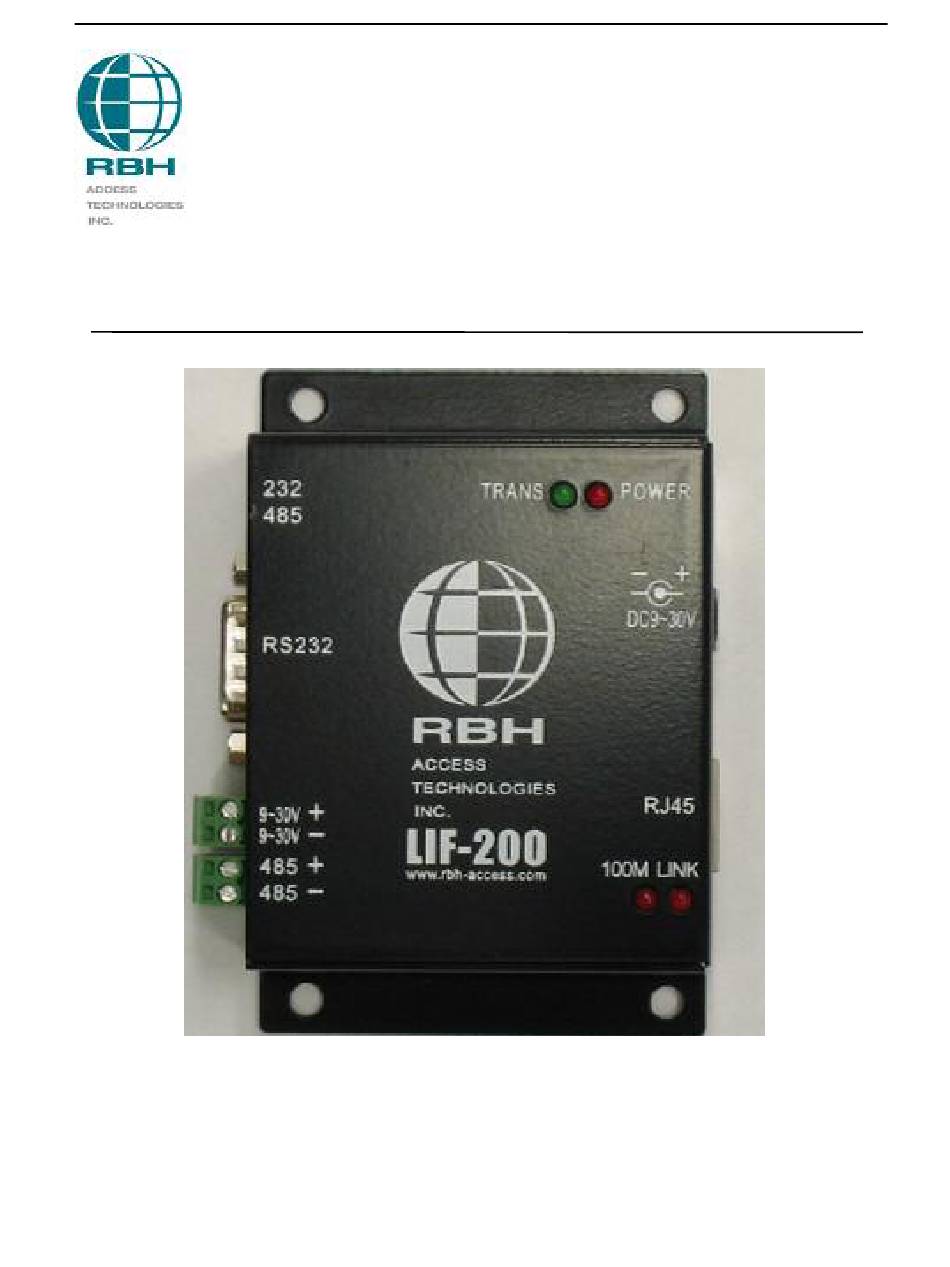

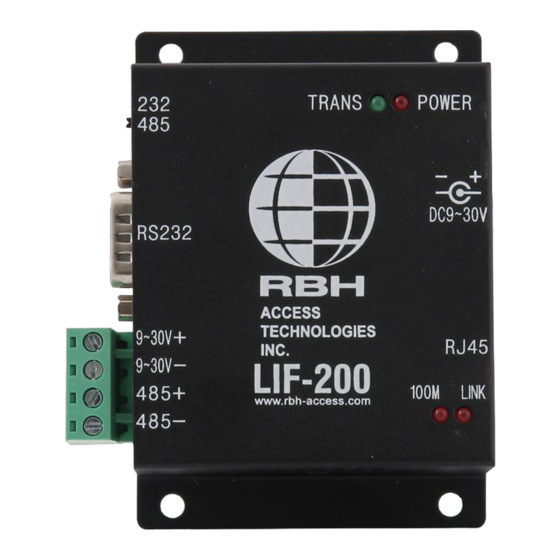

LIF-200 Quick Setup Guide
1) Power:
DC9-30 volts @ 300ma. Power can be connected using either the modular plug (for an
adapter) or the removable terminal block (beside the RS485 port).
RBH Access Technologies Inc.
2 Automatic Road, Suite 108
Brampton, Ontario
Canada L6S 6K8
LAN Interface Module – LIF-200
1 of 8
18 September, 2006
LIF200 Quick Setup
Advertisement
Table of Contents
Related Manuals for RBH Access Technologies LIF-200
Summary of Contents for RBH Access Technologies LIF-200
- Page 1 Brampton, Ontario Canada L6S 6K8 LIF-200 Quick Setup Guide LAN Interface Module – LIF-200 1) Power: DC9-30 volts @ 300ma. Power can be connected using either the modular plug (for an adapter) or the removable terminal block (beside the RS485 port).
- Page 2 Connection through a hub is possible with a separate cable. Connect your panel to either the RS232 or RS485 port. Be sure that both the LIF-200 configuration and the slide switch are set to the desired port. The RS232 connection is made through the standard DB9 port, and the RS485 connection is made through the removable terminal block (beside the power terminal block).
- Page 3 Close the message window and press “Refresh” to update your screens data. Double click (left button) on the desired LIF-200 in the list and you will go into the ‘LIF-200 Web’ configuration window. Logon and you will be into the web configuration as shown below.
- Page 4 18 September, 2006 LIF-200 Web Configuration Window RBH Access Technologies Inc. 4 of 8 LIF200 Quick Setup...
- Page 5 18 September, 2006 Web configuration field explain. 1) Type – Use the default: STATIC IP and assign a fixed IP address to the LIF-200. 2) IP address – enter the required IP Address for the LIF-200. 3) Subnet Mask – enter the required Subnet Mask for the LIF-200.
- Page 6 18 September, 2006 RBH Access Technologies Inc. 6 of 8 TB55_LIF200 Quick Setup...
- Page 7 2) Beside Administrator Password type in a new user name and password (verify the password by entering it in both boxes). 3) Click apply and accept the change by re-logging in with the new user name and password. RBH Access Technologies Inc. 7 of 8 TB55_LIF200 Quick Setup...
- Page 8 You can use a web browser (e.g. Internet Explorer or Netscape) to connect to the LIF-200’s web configuration window by entering the IP address shown on the label on the bottom of the housing. Logon using the default User Name and Password.
