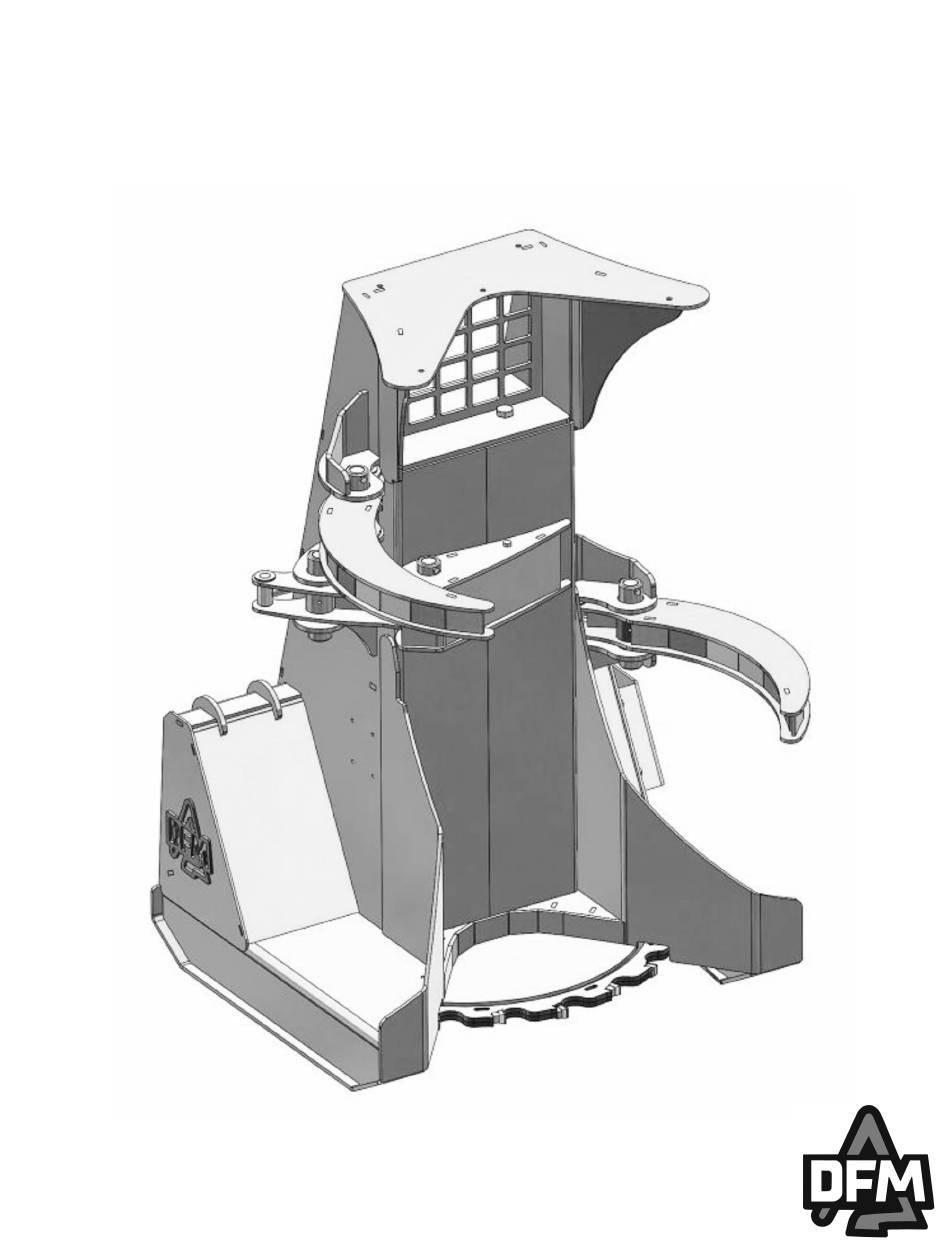

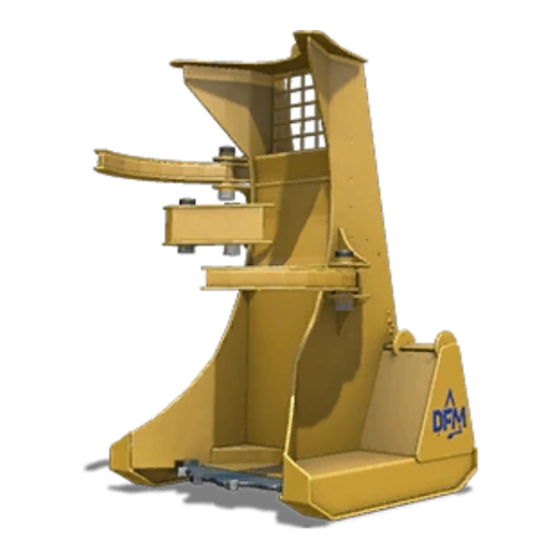

- Page 1 CFB16 Operators Manual 2019 Edition © 2019 Dougherty Forestry Manufacturing All Rights Reserved...
- Page 3 Give the Operator’s Manual to the customer and encourage customer to read entire manual. • Advise customer of safety precautions that must be observed while using the CFB16. • Review information on how to maintain the CFB16 (See Maintenance section.) •...
- Page 5 *Date of Purchase / Warranty Certificate MODEL NUMBER: UNIT SERIAL NUMBER: PURCHASE DATE: DEALER (if purchased through dealer): ORIGINAL PURCHASER (PRINT): ADDRESS: CITY: STATE: ZIP: PHONE: FAX: EMAIL: SIGNATURE: PLEASE COPY, AND MAIL OR FAX TO: Dougherty Forestry Manufacturing LTD Co. 211 W.
-
Page 7: Table Of Contents
Table of Contents Warranty Policy ........................Introduction ........................... 3 About the Manual .............................. 3 Overview ................................3 Safe Maintenance & Maintenance Schedule ................4 Daily maintenance ............................. 4 Tools & Skill Requirements ..........................4 Daily maintenance checklist: ..........................4 Practice Safe Maintenance ..........................4 Applying Grease ........................ -
Page 8: Warranty Policy | 2
The purchaser’s only remedies in connection with the breach or performance of any warranty on the DFM Tree Clearing Equipment are those set forth on this page. In no event will the dealer, DFM, or any company affiliated with DFM be liable for incidental or consequential damages. -
Page 9: Introduction
16" in diameter. The operating the CFB16. The practices within this CFB16 consists of a mounting plate, a deck, a tower, 2 manual are intended as a reference, and are not to conventional grapple arms ered by 2 cushioned be a substitute for conventional safety practices. -
Page 10: Safe Maintenance & Maintenance Schedule
Safe Maintenance & Maintenance Schedule Daily maintenance Practice Safe Maintenance Failure to inspect or maintain the CFB16 daily may Always work in a clean and dry environment. Never work cause premature wear of components, resulting in on a running machine or on a machine with moving component failure. -
Page 11: Applying Grease
Applying Grease Open the arms and look for grease zerks, then close the Remove the back panel to access the grease zerks arms and look for grease zerks. on the base of the cylinders. BACK SIDE LEFT SIDE BACK SIDE RIGHT SIDE BACK SIDE WITHOUT COVER FRONT SIDE... -
Page 12: Rotating / Replacing Teeth
Rotating / Replacing Teeth TS3 Backing Block (BB-3439) TS3 Carbide Cutting Tooth (TS1024) TS3 Lock Washer (LW-1044) TS3 Tooth Bolt (B1043) Rotating & Changing The Teeth Replace The carbide teeth should be rotated every 125 hours or The following signs indicate that the disc saw teeth when cutting rate has noticeably decreased. -
Page 13: Removing / Replacing The Blade
Removing / Replacing the Blade t WARNING: The cutting disc is heavy. Be careful and use assistance. DISK REMOVAL: The cutting disk can be removed by simple hand tools, and can be done in the field. Blade removal must be done with unit off carrier. Step 1: Disengage Hydraulics and Electronics Step 4: Remove the Blade Disengage all hoses and electric lines (use zip tie to coil... -
Page 14: Attaching The Feller Buncher
STEP 3: Connecting the Electronics The CFB16 is equipped with a universal mounting plate; The 3rd step is to hook up the electrical system. The CFB16 to attach the unit, drive the carrier toward the plate, makes use of an electric over hydraulic circuit to engage... - Page 15 GROUND GROUND SOLENOID SOLENOID POWER 1 POWER 1 GROUND SOLENOID SOLENOID POWER 2 POWER 2 CFB16 Wiring Diagram: Wire Color Connections: Purple/Blue Orange/Brown Green/Red Black/Black Black/Yellow Holding Arms (Close) Black/Green Holding Arms (Open) Button Not in Use Black Button-- A.
-
Page 16: Basic Operation
If the desire of the operator is to cut and drop, simply continue feeding the disk through the tree until the trunk of the tree contacts the top of the CFB16's tower at which point the tower will push the tree away from... -
Page 17: Carrying
The CFB16 is equipped with cushioned cylinders which protect the unit from damage if overloaded; overloading will result in the load being released. -
Page 18: Releasing
Do not carry loads over long distances; do not carry loads over uneven terrain, do not attempt to carry loads over the maximum rated lift of the carrier. Factor in the weight of the CFB16 in the load calculations. STEP 5: Releasing... - Page 19 Specifications CFB16 High Flow Hydraulic Flow Requirements: 25 - 45 gpm Operating Weight: 1,700 lbs Dimensions: Height: 75” Width: 46” Depth: 45” Throat Opening at Teeth: 27” Disc Diameter: 40” Rated Cutting Disc Speed: 1,800 rpms Number of Teeth: 20 TS3 Cutting Teeth "...
- Page 20 DOUGHERTY FORESTRY MANUFACTURING LTD Co. 211 W. Canyon Run, Hinton, OK. 73047 Call toll free: 1.888.444.2218 or 1.405.542.3520 Email: contact@doughertymfg.com If you have any additional questions about TurboSaw™ maintenance and operation, please contact your local dealer, or contact a Turbo Saw service specialist at (405) 542-3520, e-mail contact@doughertymfg.com. We, at Dougherty Forestry Manufacturing, are dedicated to providing quality forestry products that we are proud to have the Dougherty name on.
