AGM Global Vision WI-FI ATTACHMENT User Manual

For agm thermal imaging systems
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

WI-FI ATTACHMENT
FOR AGM THERMAL IMAGING SYSTEMS
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WI-FI ATTACHMENT and is the answer not in the manual?

Questions and answers

Summary of Contents for AGM Global Vision WI-FI ATTACHMENT

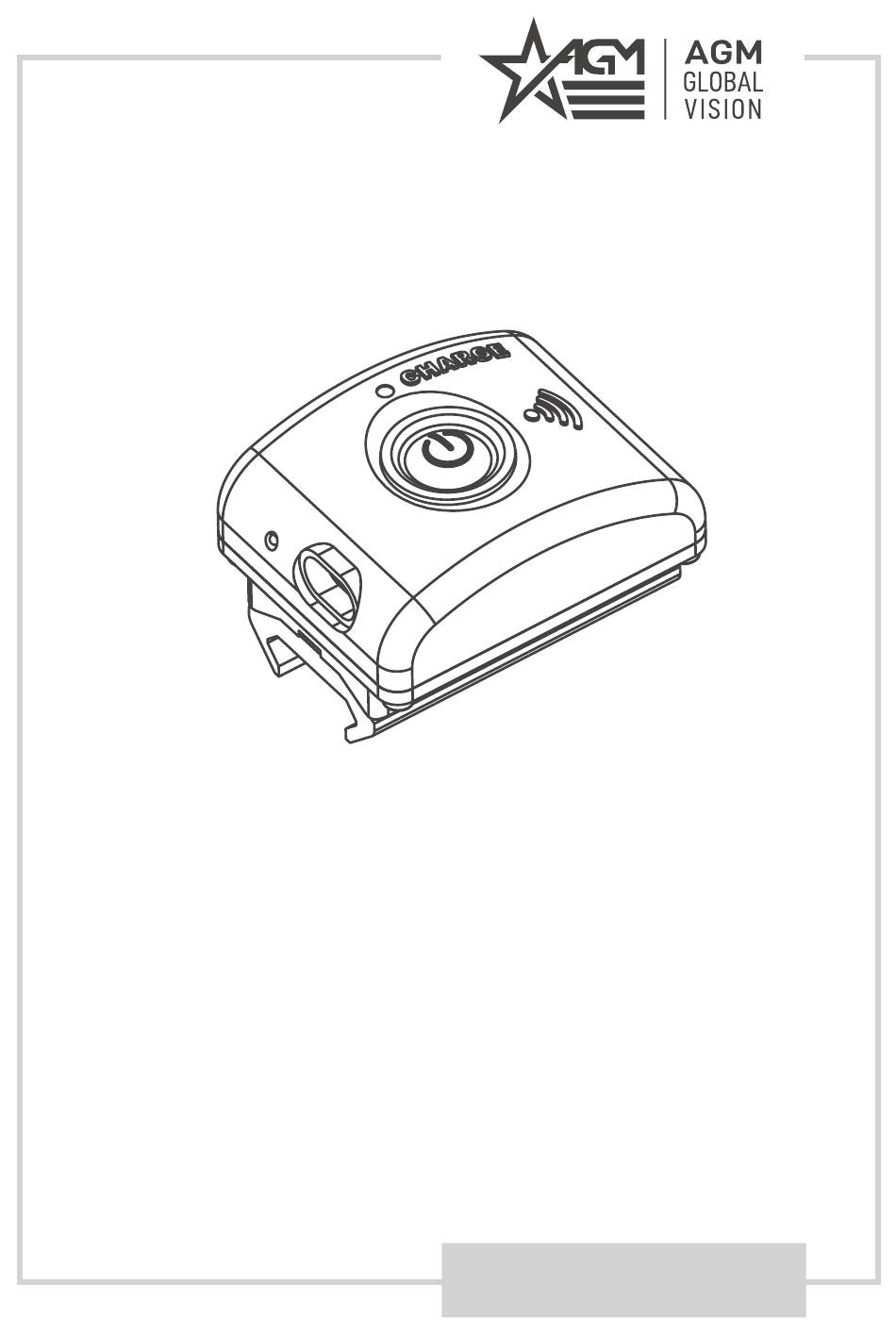

  • Page 1 WI-FI ATTACHMENT FOR AGM THERMAL IMAGING SYSTEMS USER MANUAL...

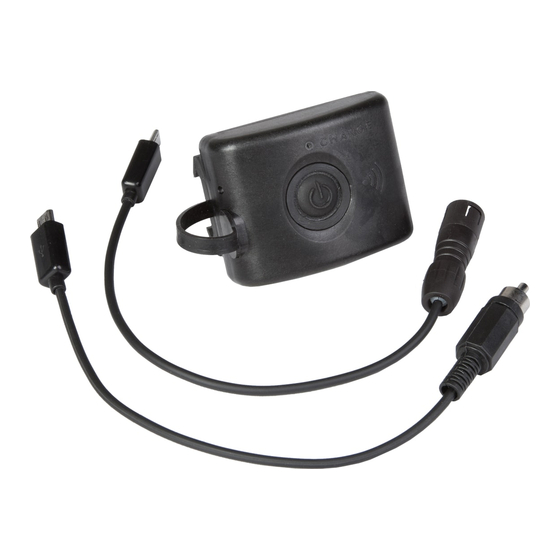

  • Page 2 Battery type: LI-ION, BL-6Q, 970 mAh, 3.7V Operation Time: up 4 hours Weight: 74 g / 2.6 oz Size: 58 x 44 x 37 mm / 2.3 x 1.7 x 1.4 in Accessories: Video Cable, RCA Cable AGM Global Vision...
  • Page 3 Wi-Fi Attachment’s micro-USB port, which will automatically start charging when connected. The red CHARGE indicator near the button of Wi-Fi Attachment will light up when unit is charging, and will turn off when battery is fully charged.
  • Page 4 2. Connect the Wi-Fi Attachment to the thermal device with the cable. 3. Turn on the Wi-Fi Attachment by pressing the POWER button on the housing of the device. The red LED near micro-USB port should light up, in 3-4 second it should become green.
  • Page 5 4. Connect to WIFI AVIN (Default password: 12345678). View the video Open the app , if the connection between the Wi-Fi Attachment and the mobile device terminal is successful, you will be able to see the camera view as shown.
  • Page 6 Settings Press this icon to enter into the settings menu. You can change the default factory SSID and password of Wi-Fi Attachment, and clicking will show whether the change is successful, and clicking to cancel the new SSID set. AGM Global Vision...
  • Page 7 2 or 3 complete charging and discharging cycles. 3. Do not expose the Wi-Fi Attachment to moisture. 4. Do not use the Wi-Fi Attachment if damaged or modified. Damaged or modified Wi-Fi Attachment may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
  • Page 8 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE #6 Andrey Lyapchev Blvd Sofia, P.C. 1756 Bulgaria Tel. +35.988.412.5573 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
