Polywood NAW2280 Assembly Instructions

MODEL: NAW2280
__(1) HARDWARE PACK
__(2) SIDEFRAME
__(1) SEAT
__(1) BACK
__(2) STRETCHER
__(1) STRETCHER ASSEMBLY
__(2) FRONT LEG
__(1) METAL BRACE

TOOLS NEEDED

4MM HEX KEY, ALLEN, T-HANDLE
(Included)
Qty. Description
A-1/4-20 X 1-1/2 WAFER SHCS
2
B-1/4-20 X 1-3/4 WAFER SHCS
10
C-1/4-20 X 2-1/4 WAFER SHCS
8

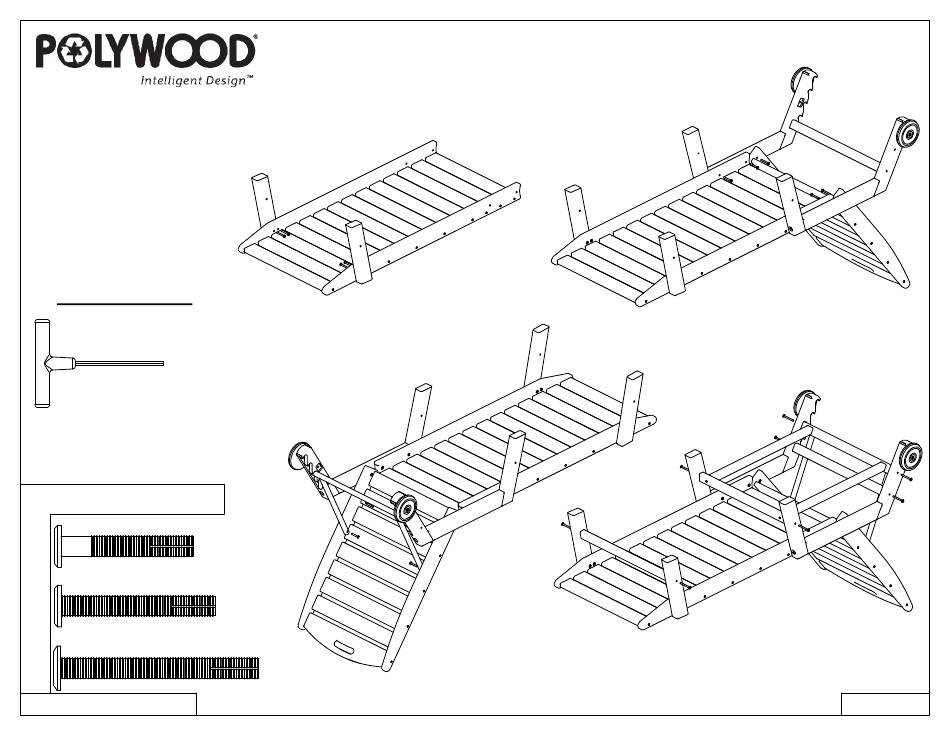

ASSEMBLY INSTRUCTIONS
STEP 1
Attach front legs to seat assembly
using (4) 1-3/4" bolts
B
STEP 3
Attach metal brace to the back
assembly using (2) 1-1/2" bolts
A
ALL HARDWARE IS STAINLESS STEEL
STEP 2
Attach sideframes to both the
seat and back assemblies using
(6) 1-3/4" bolts
STEP 4
Attach stretchers to the legs
using (8) 2-1/4" bolts
C
C
B
C
C
