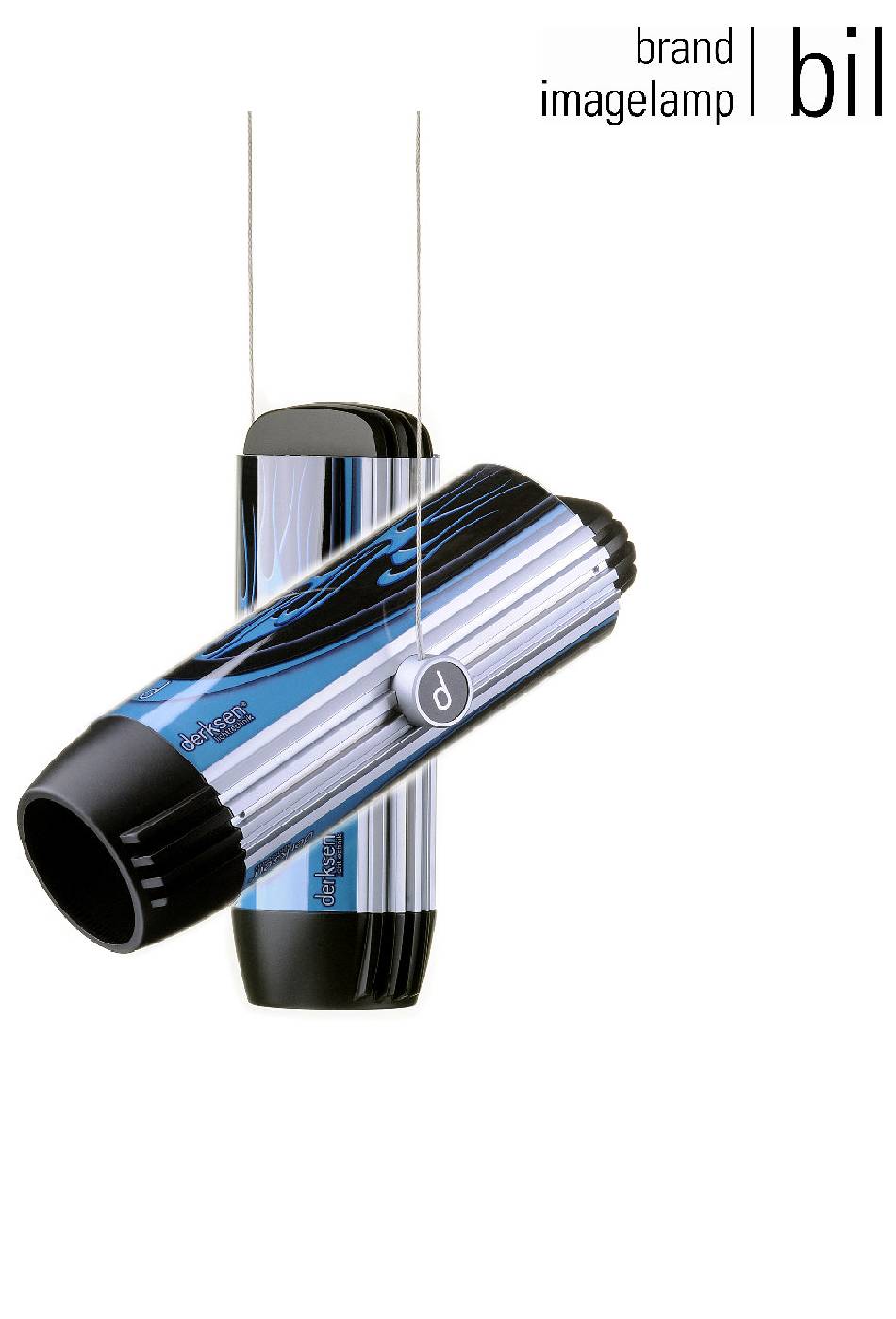

- Page 1 Reference Manual 115V...
- Page 2 Illustration 1 - 2 -...
- Page 3 We would like to thank you for deciding to purchase this high quality product. BIL is solely manufactured in Germany and complies to the highest quality and security standards. We wish you both successful projections and fascinating moments with your new halogen projection...
-
Page 4: Table Of Contents
Tips for an effective use ......................5 Surrounding light ........................5 Material and colour of the projection surface ................5 Distance between BIL and the projection surface ..............6 Mounting..........................7 Considerations before mounting....................7 Mounting the transformer to the ceiling ..................8 Positioning the suspending ropes at the required length ............ -
Page 5: Tips For An Effective Use
Material and colour of the projection area The projection lamp BIL allows for projections on to a surface as well as through transparent surfaces. The image quality greatly depends on the properties of the projection area. Therefore areas to be projected on need to be non-transparent and should be light in colour. -
Page 6: Distance Between Bil And The Projection Surface
Under normal room-light conditions, BIL is suitable for projections at a close-up range, i.e. 0.5 to 3.5 mtrs. In darkness, greater distances are possible. The size of the projection can be influenced by the distance to the projection surface. -
Page 7: Mounting
Mounting Considerations before mounting 1. The mounting should be done by a qualified specialist. 2. Take particular care that cabling is given enough slack! 3. Use appropriate fixings that are suitable for the intended mounting area! The enclosed screws and universal rawlplugs are suitable for fixing the transformer securely to solid ceilings and are not suitable for use with other construction materials. -
Page 8: Mounting The Transformer To The Ceiling
Mounting the transformer on the ceiling 1. Unroll the suspending cables and put them on the ground flat and parallel. 2. Remove the cover plate from the transformer housing by lifting it with little force (please see Fig. 4). The lid is held in place by four barbed hooks. Slide the lid over the suspending ropes until it rests on the projection lamp. -
Page 9: Positioning The Suspending Ropes At The Required Length
Positioning the suspending ropes at the required length 1. One after the other, the left and right suspending ropes need to be adjusted at the same length (in small steps, one by one). Make sure that the ropes are not sharpely bent or clamped. 2. -
Page 10: Setup And Use
Setup and use Switch on the projection lamp when the transformer housing has been closed and the lighting element has been inserted. The projection can only be adjusted with the lamp switched on. Do not touch the lighting element when the lamp is switched on, as it becomes very hot. Adjusting the lamp The projection lamp may be set up in a vertical/ horizontal position, or at an angel. -
Page 11: Focusing The Projection And Adjusting The Image
Focusing the projection and adjusting the image 1. Remove the lampshade on the side which holds the screw securing the lens holder. Carefully slide the lampshade out of its housing and put it to the side. 2. Losen the screw on the lens holder, until it can be moved within the housing together with the lens (see Fig. -
Page 12: Changing The Gobo - Projection Motif
Changing the Gobo – Projection Motif 1. Switch off the projection light. Wait and allow the area to cool down. 2. Remove the lampshade from one side. Carefully slide the lampshade out of the housing and lay it to one side. 3. -
Page 13: Changing The Advertising Or Tinted Foil Slides
Changing the advertising or tinted foil slides BIL is equipped with 2 transparent lampshades that can be fitted with advertising or tinted foil slides. The lampshade colour can be altered by a slide-in tinted foil slide. Tinted foil slides are available in various standard colours and can also be custom-made according to the customers wishes. -
Page 14: Replacing The Lighting Element
Only use replacement multi-mirror bulbs that have been tested and approved by Derksen Lichttechnik GmbH. Should the BIL be fitted with an unsuitable bulb, the equipment can become damaged or the motive will be projected in poor quality. -
Page 15: Safety
Gobo projection motifs or lighting elements. Only use replacement multi-mirror bulbs that have been tested and approved by Derksen Lichttechnik GmbH. Should the BIL be fitted with an unsuitable bulb, the equipment may become damaged. The device has been constructed to be operated at normal room temperature. Higher temperatures or direct sunlight may damage it. -
Page 16: Safety Precautions For Setup And Use
Safety precautions for setup and use Use only original parts supplied by Derksen Lichttechnik GmbH, that have been specially developed to be used with this equipment. The use of other replacement parts can lead to damage and injury! Use projection motifs (metal Gobos, glass Gobos) that are supplied as accessories for the device only. -
Page 17: Technical Data
Technical data Electrical source 115 V Order-No.: 09950120 Power consumption: 54 VA Efficiency: cosø 0,93 System frequency range: 50 - 60 Hz Fuse: 1,6 A T (not replaceable) Thermal fuse: 100°C Ambient temperature: 25°C Weight: 1020 g Colour: Black / Silver Lighting element: Halogen bulb MR16, 12 V / 50 W, 24°... -
Page 18: Terms Of Guarantee
Terms of guarantee Derksen Lichttechnik GmbH issues a guarantee on the projection lamp BIL and its accessories for proper function and durability. The duration of the guarantee is 2 years. Wear and tear parts such a multimirror bulbs are exempt from this guarantee. These will need to be replaced from time to time, depending on frequency and duration of the device’s operation. -
Page 19: Personal Notes
Your own notes __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ - 19 -... - Page 20 Derksen Lichttechnik GmbH Sauerlandstraße 5 45889 Gelsenkirchen Germany Tel.:+49 (0) 2 09 / 9 80 70-0 Fax:+49 (0) 2 09 / 9 80 70-60 info@derksen.de www.derksen.de www.brandimagelamp.de - 20 -...
