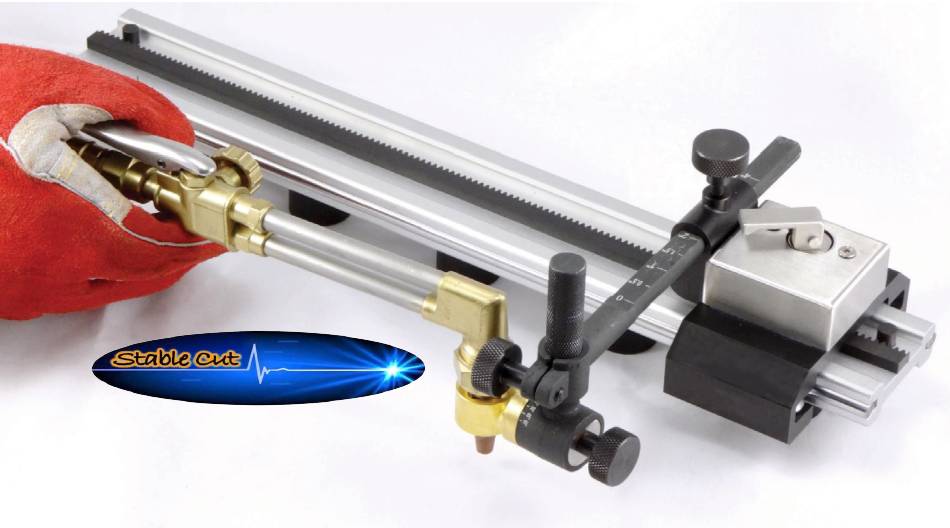

Straight & Clean Torch Cuts. Every Time.
Assembly &
OperAtiOns mAnuAl

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stable Cut and is the answer not in the manual?

Questions and answers

Summary of Contents for RSI Stable Cut

  • Page 1 Straight & Clean Torch Cuts. Every Time. Assembly & OperAtiOns mAnuAl...
  • Page 2 Stable Cut Manual EZ-CUT Manual C Au t i O n REad ThiS book ThoRoughly alwayS uSE and follow inSTRuCTionS! flaSh baCk aRRESToRS (purchased separately) failuRE To uSE oSha RECommEndEd flaShbaCk aRRESToRS Could RESulT in SERiouS pERSonal injuRy oR dEaTh.
  • Page 3 Stable Cut. technicians and not by the buyer. The buyer assumes all risk and liability arising out of his or her repairs to the impoRTanT original product or replacement parts hereto;...
  • Page 4 Stable Cut Manual EZ-CUT Manual points of leakage. presence of oxygen, which is under pressure. • Tighten loose connections with a wrench. • Empty cylinders should be kept in specified areas • Never use a flame to check for gas leaks.

  • Page 5: General Safety

    Stable Cut Manual EZ-CUT Manual completely cooled. Caution sign indicates a hazard that may cause minor or moderate injury if the caution Keep work area well ventilated. is ignored. It also may indicate a hazard Flying sparks and hot metal can cause injury.

  • Page 6: Operational Hazards

    Stable Cut Manual EZ-CUT Manual • leather welding gloves free of oil and grease. These substances can • full foot protection ignite and will burn violently in the presence of pure oxygen. Oxy-fuel operations produce intense light, heat and ultraviolet (UV) rays. The intense...
  • Page 7 Stable Cut Manual EZ-CUT Manual the cone end can lead to flashback within the the torch at lower pressures than required for the torch handle, cutting attachment or welding tip used, (2) touching the tip against the work, (3) nozzle mixer.
  • Page 8 Stable Cut Manual EZ-CUT Manual Parts Diagram...
  • Page 9 Stable Cut Manual EZ-CUT Manual paRTS liST (See Diagram On Previous Page) aSSEmbly inSTRuCTionS a. Magnets 1. To begin, slide the Horizontal Arm (e) into the opening b. Track adjacent to the Speed Control Mechanism (c). The c. Speed Control Mechanism Horizontal Arm (e) can be inserted from either end, d.
  • Page 10 1. Secure Stable Cut to work surface by placing the 3. Loosen the knobs to adjust the tip height, cut angle magnets on the material to be cut, being careful (bevel), and the distance of the torch relative to the to avoid catching fingers and clothing.
  • Page 11 7. When the cut is complete, extinguish the torch and remove it. Parts of the Stable Cut may be hot after use. Always wear protective clothing, gloves, and safety glasses. The Stable Cut is designed to give resistance when pushing or pulling the mechanism along the track.
  • Page 12 43630 Wendingo Ct. Novi, Michigan 48375 1. 7 3 4 . 6 0 4 .2 4 4 8 globalsourcing © Copyright RSI Global Sourcing, LLC., 2014. All rights reserved.
