Comet Labs ADSL Quick Start Manual

Modem with usb and 10/100m lan port (router built-in)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

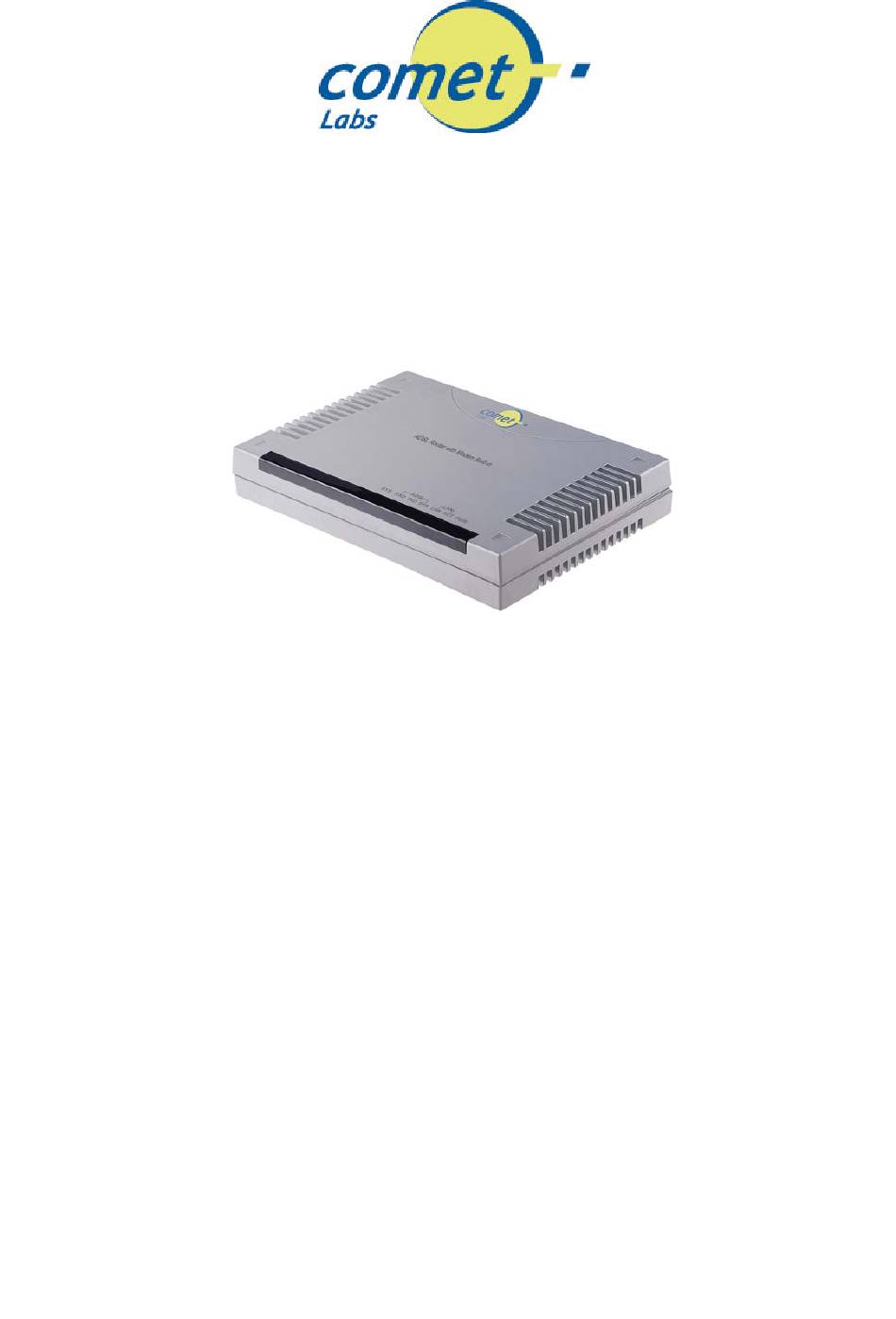

ADSL Modem
with USB and 10/100M LAN Port
(Router built-in)
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADSL and is the answer not in the manual?

Questions and answers

Related Manuals for Comet Labs ADSL

Summary of Contents for Comet Labs ADSL

  • Page 1 ADSL Modem with USB and 10/100M LAN Port (Router built-in) Quick Start Guide...

  • Page 2: Package Contents

    PC and working properly. Lit green when the LAN link is connected. Flashes green when collision happens When lit, it indicates that the ADSL (Line) port is ADSL connected to the DSLAM and working properly.

  • Page 3: The Rear Ports

    LINE Connect the supplied RJ-11 (RJ-11 cable this port when connector) connecting to the ADSL Connect the supplied USB cable (USB to this port when connecting to connector) the PC. Reset Press it to restore the factory default setting back...
  • Page 4 8 to modify the network settings. Through USB Port 1. Connect the USB cable to the USB port of the device and connect the other end to the PC. Also connect the device to the ADSL/telephone network. 2. Power on the device.
  • Page 5 ADSL Modem...
  • Page 6 Quick Start Guide Installing the USB Driver on a PC If you connect the device through USB port instead of Ethernet port, for the first time the USB cable is connected to the PC, Windows will automatically detect the device. Follow the steps to install the USB driver.
  • Page 7 ADSL Modem 3. When windows titled “Hardware Installation” or “Software Installation” appear, press “Continue Anyway” to go on. 4. Then, click “Finish”.
  • Page 8 Quick Start Guide 5. After a few moments, Windows will show the new device, USB ADSL Adapter, has been detected. Select “Install from a list or specific location”. Click “Next >”. 6. Click “Next >” when the following figure appears.
  • Page 9 ADSL Modem 7. When windows titled “Hardware Installation” appears, press “Continue Anyway”. Then, click “Finish” to end installation. 8. After installing the driver, follow the next section to configure the network properties on your PC.

  • Page 10: For Windows Xp

    Quick Start Guide Configuring the Network Properties on a PC For Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties.
  • Page 11 ADSL Modem 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration.

  • Page 12: For Windows 2000

    Quick Start Guide For Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double- click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties.
  • Page 13 ADSL Modem 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration.

  • Page 14: For Windows 95/98/Me

    Quick Start Guide For Windows 95/98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double- click on Network and choose the Configuration tab. 2. Select TCP/IP -> NE2000 Compatible, or any Network Interface Card (NIC) in your PC. Select the Obtain an IP address automatically radio button.
  • Page 15 ADSL Modem Then select the DNS Configuration tab. Select the Disable DNS radio button and click OK to finish the configuration.
  • Page 16 Quick Start Guide For Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double- click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.

  • Page 17: Configuring The Adsl Modem

    ADSL Modem Configuring the ADSL Modem To configure this device, you must have IE 5.0 / Netscape 4.5 or above installed. 1. Open web browser and type http://192.168.0.1 the browser’s address box. This number is the default IP address for this device.
