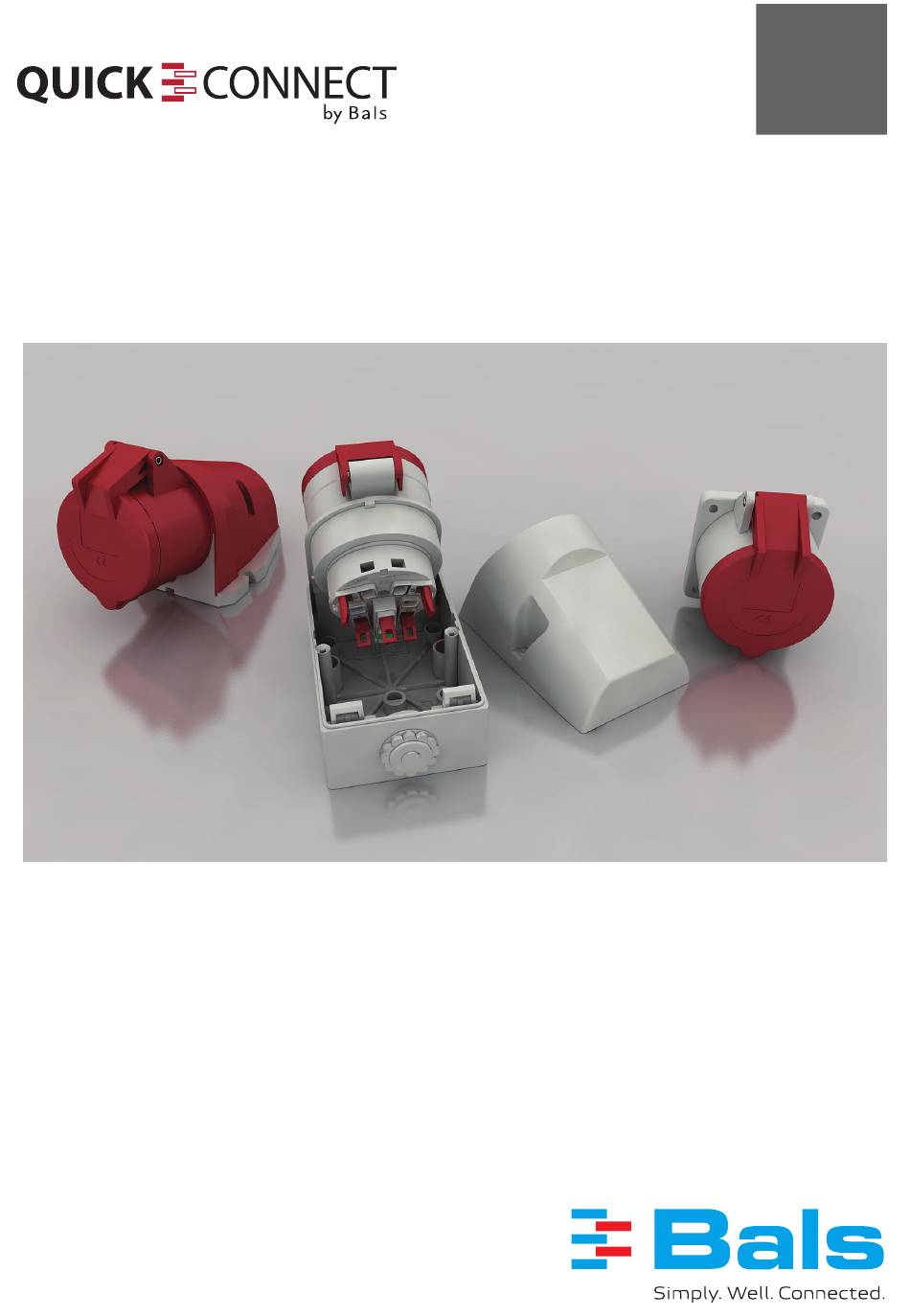

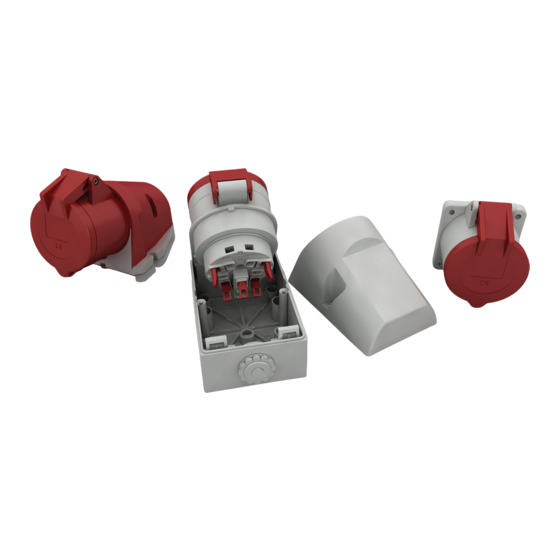

- Page 1 Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) 60003212 Issue 03.2016 2016-03-29...
-
Page 2: Table Of Contents
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Table of contents About this manual Structure of the warnings Symbols used Signal words used Intended use General safety instructions Packaging, transport and storage Packaging Transport Storage... -
Page 3: About This Manual
– describes the assembly and disassembly of plugs and sockets of the QUICK-CONNECT system of Bals Elektrotechnik GmbH & Co. KG – is an integral part of the product and must be kept in safe custody during the product service life –... -
Page 4: Symbols Used
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Symbols used General warning of a hazardous area Warning – dangerously high voltage Notice Signal words used All warnings in this manual are clearly highlighted. The following signal words are used for warnings: DANGER Warns of dangers which will lead to serious injuries or to death if the instructions are not fol- lowed. -
Page 5: Intended Use
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Intended use The QUICK-CONNECT system is used as a screwless quick-connect system based on the cage clamp principle in electrical plugs and sockets. Plugs and sockets with QUICK-CONNECT are built for professional use. -
Page 6: General Safety Instructions
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Environment The following operating temperatures apply for the safe operation of the product: Standard version Military version -25 °C ... +40 °C -33 °C ... +49 °C General safety instructions –... -
Page 7: Packaging, Transport And Storage
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Packaging, transport and storage Packaging Packaging materials are valuable raw materials and can be reused. The packaging materials should therefore be brought to an appropriate recycling facility. If this is not possible, dispose of the packag- ing materials according to the locally applicable regulations. -
Page 8: Design
... 10 mm Technical specifications The technical specifications of the surface mounting and panel mounting socket outlets or plugs de- pend on the design. You will find them in our catalogue or on our website http://www.bals.com. (04.2016) 8 / 16... -
Page 9: Assembly And Disassembly
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Assembly and disassembly DANGER Danger to life by electrical voltage The supply cable may carry high electrical voltage that is fatal. Pay attention to the five safety rules of electricity: 1. - Page 10 Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) 5. Fix the bottom part of the housing to the wall with the help of the fixing material suitable for the application. 6. Push the cable through the sealing plugs (4) into the housing. Open the sealing plugs only as far as necessary so that they can still get sealed.
- Page 11 Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) 7. The terminals are open at the time of delivery. Guide the bare individual conductors into the opening near the contact slide (6) and press the contact slide (5) in the direction of the arrow to the side.
-
Page 12: Disconnecting A Cable From A 16-A / 32-A Surface Mounting Or Panel Mounting Socket Outlet Or Plug
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Disconnecting a cable from a 16-A / 32-A surface mounting or panel mounting socket outlet or plug 1. Make sure that the cable is de-energised. 2. - Page 13 Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) 3. Open the contact slide (5) by forcing it with a screwdriver and pull the individual conductors from the terminals. 4. For surface mounting socket outlets and plugs: Pull out the cable from the housing and out of the sealing plugs (4).
-
Page 14: Cleaning And Care
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Cleaning and care It is recommended to clean the device as required. Use a dry cloth to clean the device. Use a wet cloth if the device is very dirty. -
Page 15: Decommissioning And Disposal
Installation manual surface mounting plugs and socket outlets, panel mounting plugs and socket outlets QUICK-CONNECT (16/32 A) Decommissioning and disposal Send the worn-out product for recycling or for proper disposal. Always make sure to observe and fol- low the local regulations. The product should not be disposed of in household waste. - Page 16 霸士电器（昆山）有限公司 Bals Elektrotechnik (Kunshan) Co Ltd 地 址:江苏省昆山市郁金香路雄鹰路301号 Add: 301 Xiongying Road, Kunshan, Jiangsu Province Tel: +86 - 512 - 86167886 - 111 Fax: +86 - 512 - 86167880 Web:http://www.bals.com.cn...
