RF SHIELDING ENCLOSURE

Operation Manual

R211216_1.10

Table of Contents

Need help?

Do you have a question about the RWC7100A and is the answer not in the manual?

Questions and answers

Summary of Contents for Redwood RWC7100A

Page 1 RWC7100A RF SHIELDING ENCLOSURE Operation Manual R211216_1.10...
Page 2: Table Of Contents
1.1. Warranty Policy 1.2. Key Features 1.3. Specifications II. Operation 2.1. Identification of RWC7100A 2.2. Performance Test 2.2.1 How to Set up the Equipment Required for RF Shielding Effectiveness Test 2.2.2 Test Procedure 2.2.3 An Example Test Result of RF Shielding Effectiveness 2.3.
Page 3: Information
Our engineers (or agent) will support you through video calls, email, phone or in-person visit. Contact Information • Address: RedwoodComm Co., Ltd. #14008, OfficeSection Bld, SK M-city, 195, Baengma-ro, ilsandong-gu, Goyang-si, Gyeonggi-do, Korea • Tel: +82-70-7727-7011 • email: support@redwoodcomm.com sales@redwoodcomm.com • Online: www.redwoodcomm.com RedwoodComm Co., Ltd. | RWC7100A Operation Manual Page 2 of 16...
Page 4: Key Features
1.2. Key Features The RWC7100A RF shielding enclosure offers excellent shielding effectiveness of over 100dB within a wide operating frequency range of 400MHz to 6400MHz, so that the effects of external interference are reduced to a minimum. In all interior workspaces, absorber material is attached in order to minimize RF reflections.
Page 5: Specifications
10.5 kg (Weight and size may vary depending on the package) Accessories list Operating Manual Test Report For accessories according to other modules, please refer to the 3.1 Ordering Information. RedwoodComm Co., Ltd. | RWC7100A Operation Manual Page 4 of 16...
Page 6 • If this product is left with the lid closed for a long time, the performance of the shield gasket may deteriorate. Before using it again, be sure to open the lid and keep it open for at least one day, then check the shielding effectiveness. RedwoodComm Co., Ltd. | RWC7100A Operation Manual Page 5 of 16...
Page 7: Operation

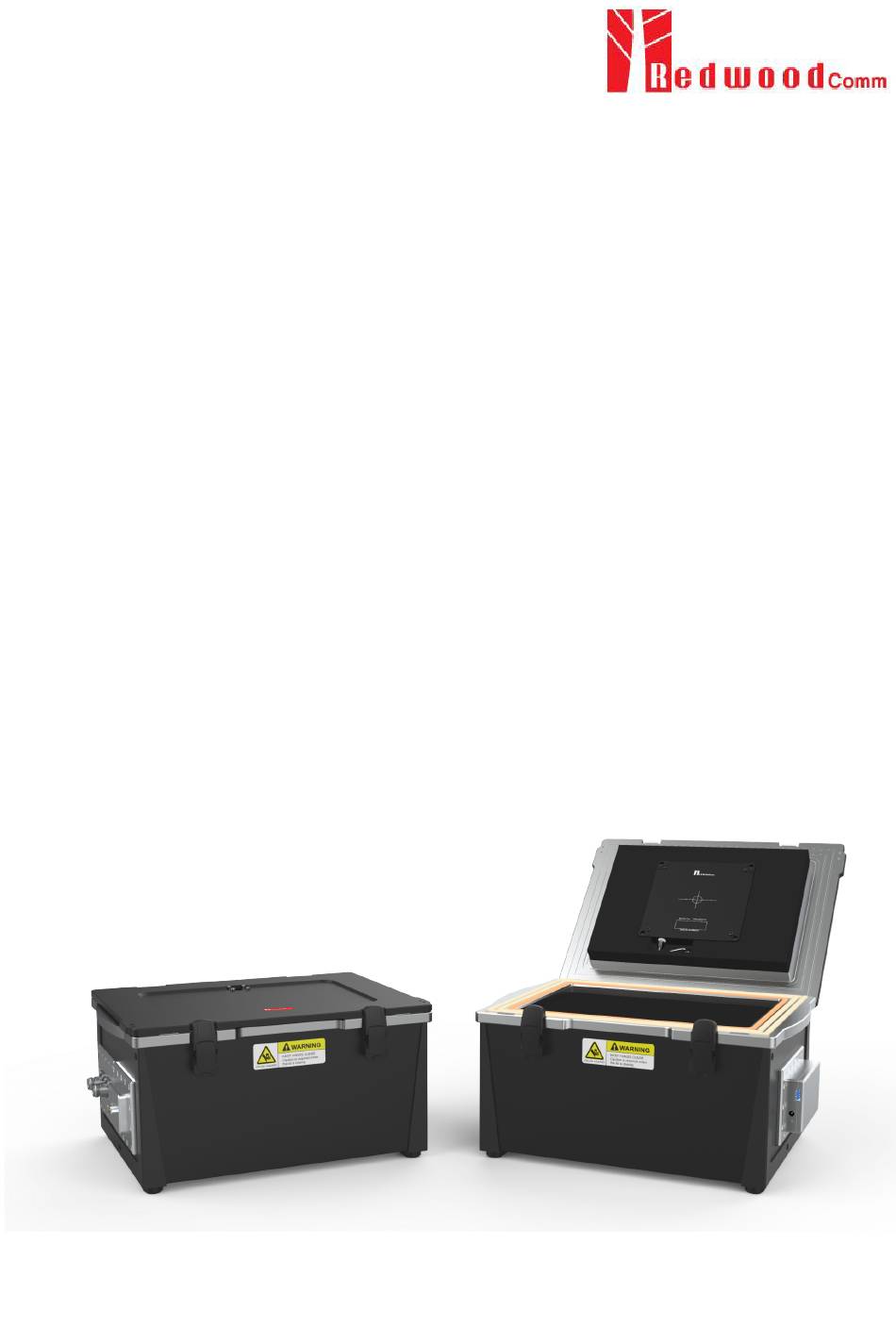

II. Operation 2.1. Identification of RWC7100A [Figure 2-1] Component Identification of RWC7100A ① 2 x M3 Hole (DP 5mm) : M3 screw holes for cable fixing ② N type Antenna Port : Additional RF port for RWC8201A antenna ③ Door (Lid) : Manual method to open/close the door from the top ④...
Page 8: Performance Test
- RF signal amplifier : capable of sufficiently amplifying weak RF signals, if necessary When measuring the shielding effectiveness of RWC7100A, it is recommended to install a signal generator with a built-in battery inside RWC7100A, and perform the measurement outside of RWC7100A. If a signal is generated from the outside and input through a cable, it is not guaranteed that the test results would be accurate.
Page 9: Test Procedure
4) Set up the signal generator or RWC1020A as follows: - Frequency : 400.1MHz - Power : +10dBm 5) Open the RWC7100A door and measure the power (Pref) moving the reference antenna to several points as shown in Figure 2-3. [Figure 2-3] Check the reference power level (Door Opened)
Page 10: An Example Test Result Of Rf Shielding Effectiveness
2.2.3 An Example Test Result of RF Shielding Effectiveness The product conformity test was measured using a method modified from the IEEE-STD-299.1 standard. [Figure 2-5] Shielding effectiveness of RWC7100A RedwoodComm Co., Ltd. | RWC7100A Operation Manual Page 9 of 16...
Page 11: Maintenance
In this case, perform routine maintenance first and keep the door open for more than one day, and then perform the performance test. If there is no improvement, replace the gasket. RedwoodComm Co., Ltd. | RWC7100A Operation Manual Page 10 of 16...
Page 12: How To Replace Emi Gasket
7) Check the shielding effectiveness by referring to the performance test method. Refer to page 9 for the Performance Tests. If it is not normal even after replacement, please contact customer support. RedwoodComm Co., Ltd. | RWC7100A Operation Manual Page 11 of 16...
Page 13: Io Modules
Antenna Set O7100A-93: Wide-band Left Hand Circular Polarized (LHCP) Antenna Set O7100A-92 • RWC8201A mounted on the lid of RWC7100A O7100A-93 • Antenna Dimensions (W x D x H mm): 130 x 130 x 15 • Frequency Range: 700MHz to 8.5GHz •...
Page 14 1 x USB A(M) to USB A(M) cable included • This hub can be used inside the enclosure with the 5640-1000, and both USB 3.0 and USB 2.0 are available RedwoodComm Co., Ltd. | RWC7100A Operation Manual Page 13 of 16...
Page 15: Example Of Ordering
(Please perform the 2.2. Performance Test after installation.) 3.2. Example of ordering This is an example of how customers order the RWC7100A with IO Modules. For more information, please contact our sales or distributor before placing an order.
Page 16: Appendix
The recommended operating frequency of the RWC8201A antenna is 700MHz to 8500MHz. When measuring LoRaWAN devices in RWC7100A Shield Enclosure equipped with RWC8201A antenna as an option, it is necessary to measure even in the 400MHz band. Therefore, in this application note, the transfer function of the RWC8201A antenna is measured not only in the 400 MHz band but also in the 900 MHz band.
Page 17 Although the result shows that the loss is larger and the flatness is larger in the 400MHz band than in the 900MHz band, the RWC8201A antenna seems to be good enough to be used in the LoRa Test at the 400MHz band in RWC7100A. RedwoodComm Co., Ltd. |...
