12" Burial Landscape Subwoofer Owner's Manual
RED12SUB-OUTDOOR
• 12" (30.48cm) DVC Long Throw Driver
Polypropylene Waterproof Cone with Rubber
Surround
• Frequency Response: 30Hz-300HZ ± 3 dB
• Impedance: 8Ω + 8Ω
• Power Range: 5-300W
• Sensitivity: 90 dB @ 1w/1m (8Ω)
• Voice Coil: 2.0"
• Magnet Weight: 80 oz.(2.27 kg)
• Weight: 33 lbs. (14.96 kg)
• Enclosure: ASA + HDPVC
• Dimensions: Vertically: 16" (40.7cm) W x 16" (40.7cm) L x 35" (88.9cm) H

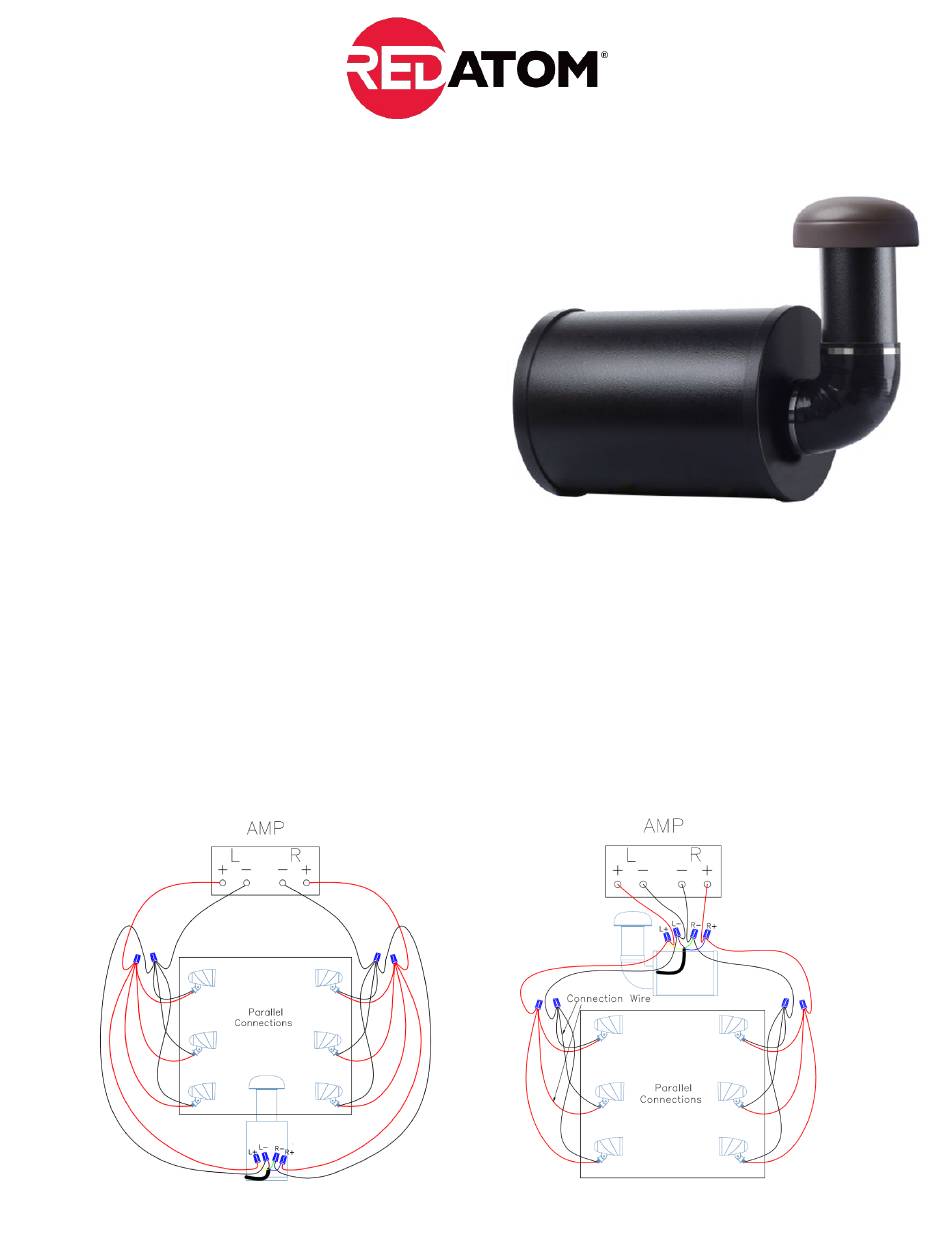

Wiring Options:
Shown below are wiring options to connect the RED12SUB 8+8 Ω DVC Subwoofer with up to six (6)
16Ω
RED6SAT
speakers. You can safely connect three (3) pairs of the RED6SAT, along with a RED12SUB to
any 2-Channel AVR or Audio Amplifier. Recommended power rating of the amplifier should be 100W x 2.
The 12" woofer does not perform well with a low power amplifier.
Horizontally: 29.6" (75.2cm) W x 15.9" (40.4cm) L x 27.7" (70.3cm) H
