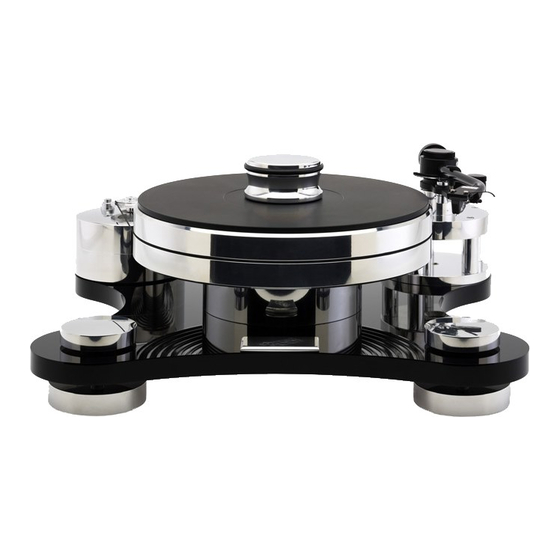

- Page 1 Operating Instructions Transrotor ZET 1 & ZET 3 RÄKE HIFI/VERTRIEB GMBH, IRLENFELDER WEG 43, D-51467 BERG. GLADBACH Telefon 02202/31046, Telefax 02202/36844...
- Page 2 Transrotor turntables are masterpieces of fine mechanics, an expression of a consequent sense of craftsmanship. Transrotor’s goal is to build a device for the customer, which sounds excellent, can be operated comfortably and logically, is made from the best materials, works for decades and makes easy repair service possible.
- Page 3 Start with the setup at the final position of the turntable, because afterwards you can no longer transport it. To avoid fingerprints on the acrylic glass and the polished surfaces, please put on the gloves provided. 1. Place the three coasters in a triangular arrangement (two in the front, one in the back) on your table or rack.
- Page 4 5. Take the platter out of the packaging and put it on the bearing. After that put on the platter mat. 6. Now place drive belt around platter and motor pulley Upper groove (small diameter) = 33 1/3rpm Lower groove (larger diameter) = 45rpm If a Konstant power supply has been ordered, a motor pulley with only one groove is installed.
- Page 5 You should only remove the power supply from the mains if is not used for a longer period of time. 8. Connect the NF cable with the two RCA plugs to the phono input of your amplifier: red = right channel black = left channel 9.
- Page 6 chassis. If you have the Zet 3 model the motor is placed on a motor stand. Place the drive belt over engine pulley belt groove on the TMD bearing. The belt should run parallel to the surface. To achieve this use one of the three belt grooves.
-
Page 7: Operation
Turntable with TMD-bearing Check the oil reservoir once a year, if contamination is visible, the oil should be replaced. The 122 oil is available as a spare part and comes with a detailed instruction. Only use original Transrotor oil! - Page 8 Accessories An additional tonearm can be mounted on the rear left corner of the chassis. For this purpose, the motor is placed to the left next to the chassis. The motor coaster required for this is available separately. The device can also be equipped with a second motor.
- Page 9 Special dust covers are available for all devices and can be customized by us to your preferences. An additional base plate, which recommend when using two motors is also available. A useful accessory is the “Design” cleaning brush. It keeps the stylus free of dust fluff.
-
Page 10: Care Instructions
power supply. In addition, all speeds can be fine-tuned. A specialised Zet-rack is also available. It can be equipped with columns of different heights to accommodate the power supply and preamplifier. You can upgrade your existing device with the TMD kit, detailed instructions are included. -
Page 11: Specifications
Your Transrotor turntable is made of the best materials. All parts are robust and easy to maintain and designed for years of use. If you want to keep your device in mint condition, please note the following instructions. Dust cover, chassis and platter... - Page 12 ZET 1 ZET 3 Dimensions (WxDxH): Dimensions (WxDxH): 45,5cm x 40cm x 20,5cm 45,5cm x 40cm x 23cm Weight: Weight: Approx. 24 Kg Approx. 34 Kg If you have any questions about your turntable, or need accessories and spare parts, ask your special dealer – or simply give us a call. Service phone: Monday to Thursday from 3 p.m.
