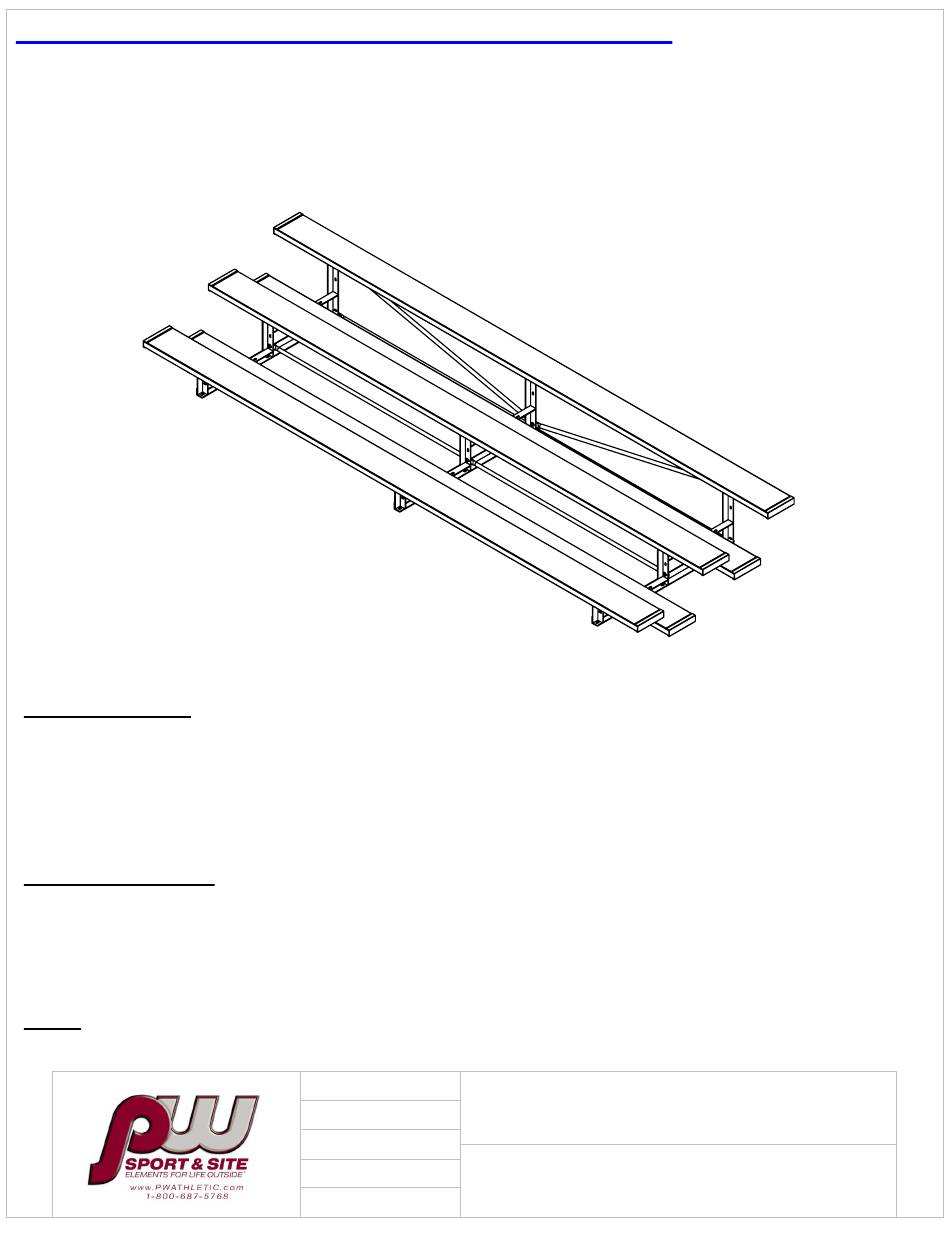

STANDARD SERIES 3-ROW 15' BLEACHER
MODEL 1171-315G
MODEL 1171-315A
Standard Series designed for dependability and trouble-free maintenance. Featuring 6"
rise from row to row with nominal 10" aluminum planks and optional 2" x 6" ground sills
SPECIFICATIONS:
Bleacher Frames are fabricated from 2" x 2" x 3/16" steel or aluminum angle. Frames are welded
into a single unit. Frames may have optional 2" x 6" ground sills at every point where frames are
in contact with the ground.
Standard Series Bleachers conform to the requirements of ICC 300-2012.
Seat and Foot Planks: Nominal 2" x 10" x 15' extruded, ribbed aluminum. The edges and tops of
planks shall be ribbed. The ribbed pattern, non-slip surface, is designed for safety and comfort.
All exposed ends shall have aluminum caps fastened to the underside of the plank. Planks secure
to each frame with two friction-type aluminum mounting clips capable of securing the plank
against movement under a horizontal force of 400 lbs. All hardware is provided.
Finish: All fasteners shall be zinc plated.
3-ROW 15' STEEL
3-ROW 15' ALUMINUM
Date: 4/6/2021
Rev:
A
Drawn: JBN
Sheet:
1 of 11
PRODUCT NAME
3 ROW STANDARD 15FT
MODEL NO.
1171-315
Advertisement
Related Manuals for PW 1171-315G
Summary of Contents for PW 1171-315G
- Page 1 STANDARD SERIES 3-ROW 15' BLEACHER MODEL 1171-315G 3-ROW 15' STEEL MODEL 1171-315A 3-ROW 15' ALUMINUM Standard Series designed for dependability and trouble-free maintenance. Featuring 6" rise from row to row with nominal 10" aluminum planks and optional 2" x 6" ground sills SPECIFICATIONS: Bleacher Frames are fabricated from 2"...
- Page 2 ITEM PART OR AIMS NUMBER DESCRIPTION QTY. ROW3A OR ROW3G BLEACHER 3-ROW STANDARD FRAME CIBLB74.625 BLEACHER BRACE 74-5/8" LONG RMPLK15-10 ALUMINUM PLANK ANODIZED 10"x 180" CIBLB76.375 BLEACHER BRACE 76-3/8" LONG VCIAECP 2"x10" ALUM. END CAP VCIACLP BOLT CLIP FOR 10" & 12" ALUMINUM PLANK HWCB5161 5/16-18 X 1 CARRIAGE BOLT GRADE 2 ZINC HWFLWA516...
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS: 1) Check materials received with the BOM to make sure that all components are included and to assure that the unit is complete. 2) Installing End Caps Item on Seat and Foot Planks: 2" x 10" end caps Item 5 . Align and assemble all end caps to aluminum planks. - Page 4 INSTALLATION INSTRUCTIONS: 3) Locate the three Bleacher 3-Row Standard Frame Item 1 and set on a level surface on 73" centers. 73" (TYP) PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. 1171-315 Sheet: 4 of 11...
- Page 5 INSTALLATION INSTRUCTIONS: 4) To Install Cross Braces: a) Locate four horizontal braces measuring 74-5/8" Item 2 and two diagonal braces 76-3/8" . Install on the backside of the Bleacher Frames using 3/8" x 1-1/2" Hex Bolt Item 10 , Washers Item 11 , and Lock Nut Item 12 provided using the top and bottom slots in the frame and center of Braces as shown.
- Page 6 DETAIL-Z ENLARGED FROM SHEET #5 PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. 1171-315 Sheet: 6 of 11...
- Page 7 INSTALLATION INSTRUCTIONS: 5) To Install Seat and Foot Planks: a) First install the Bolt Clip For 10" Aluminum Plank Item 6 using 5/16" x 1" carriage bolts Item 7 , washer Item 8 , and lock nuts 9 on top of the seat and foot board supports. Give nuts about 3/4 turn (just enough to secure).
- Page 8 DETAIL-Y ENLARGED FROM SHEET #7 PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. 1171-315 Sheet: 8 of 11...
-
Page 9: Front View
INSTALLATION INSTRUCTIONS: 6) Position seat Planks and Foot Planks on the supports so the Bolt Clips Item 6 are between the slots in the bottom of Planks. Reach up underneath the Seat Plank, Foot Plank, and Riser Plank to rotate the Bolt Clips Item 6 to 90 so they engage the planks. - Page 10 " 23" SECTION A-A BLOT CLIPS TURNED 90 TO ENGAGE PLANKS DETAIL X ENLARGED PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. 1171-315 Sheet: 10 of 11...
- Page 11 57" 2" TOP VIEW 180" 23" 73" 73" 15-3/4" PLAN VIEW PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. 1171-315 Sheet: 11 of 11...
