USER'S MANUAL
ASIN AQUA
ASIN AQUA Net
CLF, REDOX, DOSE
CLF, REDOX, DOSE
w w w.asekopool.com
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASIN AQUA and is the answer not in the manual?

Questions and answers

Summary of Contents for Aseko ASIN AQUA

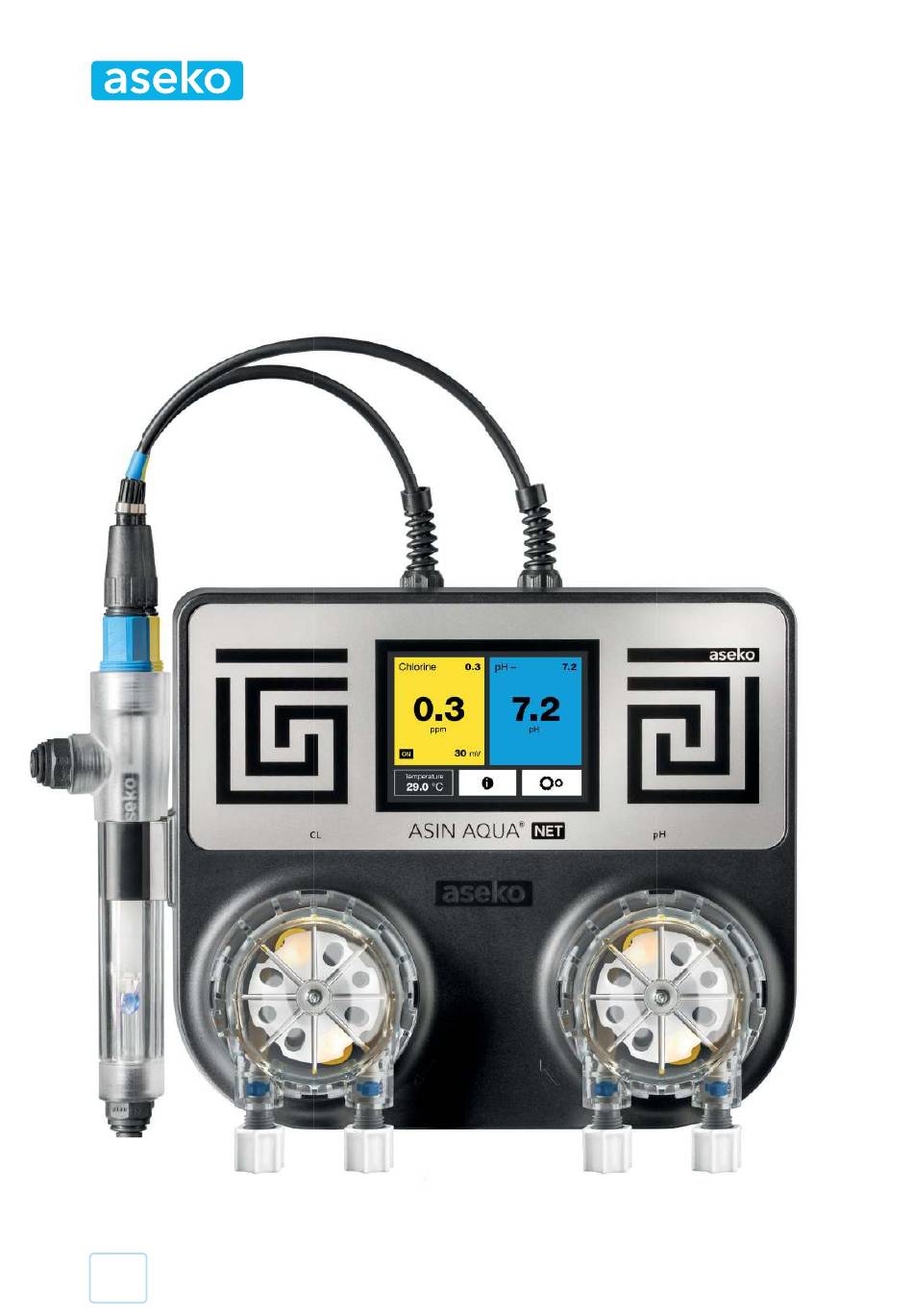

  • Page 1 USER‘S MANUAL ASIN AQUA ASIN AQUA Net CLF, REDOX, DOSE CLF, REDOX, DOSE w w w.asekopool.com...

  • Page 2: General Safety Information

    Potential overdosing of chemical agents Despite ASIN Aqua® comprehensive safety functions, it is possible that a probe failure and other errors could lead to an overdosing of chemical agents. Potential consequence: Injury, heavy material damage.
  • Page 3 Handling chemicals for pool water treatment The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents.

  • Page 4: What's In The Box

    Injection valve 2 pcs Suction tube weight 2 pcs Thermometer holder 1 pcs Water valves 2 pcs #12023 #12044 #12005 #12006 (only for ASIN AQUA Net) PE Tube 1/4” (6.35 mm) Wrench socket for probes Dowels and screws transparent #13046 #12125 #12008...

  • Page 5: Available Optional Accessories

    Available optional accessories Inserting DN50 plug 1/4” threaded External touch screen for easy installation (only for ASIN AQUA Net) #12134 pH 7.00 Buff er #12065 Pool Lab Photometer Redox Buff er #12063 for accurate calibration #13076 ASEKO original chemical solution...
  • Page 6 ASIN AQUA ASIN AQUA CLF ASIN AQUA Net CLF ASIN AQUA Redox ASIN AQUA Net Redox ASIN AQUA Dose ASIN AQUA Net Dose...
  • Page 7 ASIN AQUA Net is adjustable to dose pH MINUS or pH PLUS. Treatment for stabilizing of pool water acidity at the optimum level. Precise measuring by pH probe combined with the system digital intelligence controls the preset pH level of the circulating pool water in all pool operation modes and variable environment conditions.
  • Page 8 ASIN AQUA installation ASIN AQUA is to be wall mounted in dry and dust-free environment with temperature ranging from +5 °C to +40 °C. The location must be selected so that there is at least 30 cm of free space on all sides and a height above the fl oor was max.

  • Page 9: Probe Installation

    Probe installation Probe wrench Carefully insert the CLF or Redox probe into the well on the left. Tighten by hand or with the included plastic probe wrench. Connect the connector (marked in yellow) Carefully insert the pH probe into the well on the right. Tighten by hand or with the included plastic probe wrench.
  • Page 10 OUTPUT INLET MEASURED WATER SUPPLY SUPPLY Thermometer Besgo Filtration Coagulation mixer MEASURED WATER DRAINAGE FROM POOL Pump TO POOL Heating...
  • Page 11 fi lter and heating or into the overfl ow tank or skimmer. T-joint Use to connect the measured water to your ASIN AQUA PE tube 1/4 “(6.35 mm) #12008, which is part of the delivery. 90° PE tube 1/4 “(6.35 mm) WARNING To ensure that the joints are tight, cut the PE tube at an angle of 90 °.
  • Page 12 Max 8 m Thermometer Max 8 m Max 8 m Besgo Filtration Coagulation mixer CHLOR MINUS PURE FROM POOL Pump TO POOL Heating...
  • Page 13 T-joint Connect the CHLOR PURE INJECTION VALVE behind the INJECTION VALVE, this prevents scale formation. to connect reagents to ASIN AQUA use PE pipe 1/4 “(6.35 mm) # 12008, which is part of the delivery. WARNING To ensure that the joints are tight, cut the PE tube at an angle of 90 °.

  • Page 14: Power Supply

    The mains socket outlet must be protected by a residual current device (RCD). Filter pump After device has been switched on, the display will come on and the ASIN AQUA Net starting screen will appear. Disconnection from the mains: Disconnect the ASIN AQUA Net mains cable from the 230 V / 50 Hz socket outlet.

  • Page 15: Installation Test

    PE tube. WARNING Any obstacles, bubbles or leaks in the connecting tube will prevent ASIN AQUA Net from correct operating. The clear plastic tube allows you to monitor fl ow of liquid to the injecting valves. If bubbles occur here, the pump draws air in.

  • Page 16: Control Principles

    Control principles Home screen The home screen displays measured, required values and status information. E.g. click on the Chlorine tab to enter the setting of the required chlorine value in pool water. Required value Measured value mV output signal from the CLF probe The disinfection pump doses Water temperature...
  • Page 17 ASIN AQUA. Pool volume To ensure the correct function of ASIN AQUA Net, enter the correct volume of your. Calculate your pool volume in m : Length (L) times width (W) times depth (D) is volume (V) - (L × W × D = V).

  • Page 18: Setting Values

    (pH 7.0). 2. Close the water supply to the probes ASIN AQUA Net displays „No water supply to the probes“ notifi cation. 3. Perform superchlorination Perform superchlorination of pool water with Super CHLOR (inorganic active chlorine without stabilizers).
  • Page 19 Set the required pH value ideally close to the pH value of the incoming water. • ASIN AQUA Net adjusts the pH automatically according to the preset required value. • The ideal pH value should be between 6.8 and 7.5.
  • Page 20 (regardless of the required value according to the table). Repeat the measurement after the water in the pool is mixed thoroughly and the required value shown on the ASIN AQUA Net display is settled. Repeat the process until the chlorine concentration in pool water matches the required value then set the correct required value according to the table.
  • Page 21 ADEQUATE • If the chlorine value in pool water is , your ASIN AQUA Net is prepared to maintain the required concentration of chlorine in pool water. • If the chlorine value in pool water is , increase the required REDOX mV value in the menu.

  • Page 22: Ph Probe Calibration

    When pH is being measured in operation, there may be a diff erence between 6.2 to 7.8. the ASIN AQUA Net value and the current pH value measured directly in water. The pH probe cannot be Calibration can be done in two ways:...
  • Page 23 CLF Probe calibration Do not calibrate the probe until the water in the pool is thoroughly mixed and the value on the ASIN AQUA Net display is stable. This may take several hours. Calibration is performed by entering the manually measured value of chlorine concentration (using a photometer) in the CALIBRATION menu.

  • Page 24: Probe Testing

    Water thermometer calibration If water temperature is diff erent from temperature shown by ASIN AQUA Home, calibrate the thermometer in the water thermometer calibration menu. Probe testing Testing the pH probe If the probe meet following qualifi cations, it can be used in the system and it is pH - Buff...
  • Page 25 In case of public pools, replace injection valve rubber bands every year. replacement fl ap pH Probe Maintenance Take the pH probe out of ASIN AQUA Net housing and clean it from impurities. Follow the instructions attached to the used probe. Flowmeter with fi lter...

  • Page 26: Internet Connection

    ASIN AQUA Net to your Wifi by use of Wifi extender. Powerline via 230V/DC If you have no wired access to your LAN network but your ASIN AQUA Net is in the at the same electric network you can connect the LAN network via 230 V power line socket adapter.
  • Page 27 Connect ASIN AQUA Net with LAN cabel Home network INTERNET Router INTERNET LTE Router Wifi extender INTERNET Router Powerline via 230 V 230 V socket outlet INTERNET Router...

  • Page 28: For Android

    The internet connection allows you to use the Pool Live mobile application and monitor your pool on mobile devices wheresoever the internet connection is available. After you connect the ASIN AQUA Net to the internet download the Pool Live application to your smartphone. Application is available for iOS and Android operation systems.
  • Page 29 The web application for detailed monitoring of the pool water quality by means of well-arranged graphs. It shows all the measured parameters as well as ASIN AQUA Net actions up to 30 days back. This application is giving you the detailed information of the pool status and detailed review of all events, taken actions and act levels of monitored items up to 30 days back.
  • Page 30 Ensure your probes are clean and free from dirt. are not damaged or broken. • Exposure to below 0° C conditions damages • To remove your dosing pumps from your ASIN AQUA, the probes. disconnect the clear plastic tubes, turn your dosing • Regular cleaning of the probes maintains pump counterclockwise and pull away from your system accuracy.
  • Page 31 Too rapid change of pH is usually caused by refi lling water directly to the skimmer. If such rapid change of pH occurs, ASIN AQUA Net stops controlling pH for two hours. This limitation can be manually disabled. After pH has been stabilized or two hours have elapsed, ASIN AQUA Net changes over to the normal mode.
  • Page 32 Install temp. holder to the pipe system then insert the thermometer. Connect the cable (2m as standard, other lengths on request) into the connector at the bottom side of the device. Thermometer calibration (ASIN Aqua NET) In menu select SETTINGS then CALIBRATION. Press THERMOMETER CALIBRATION...
  • Page 36 USER‘S MANUAL ASIN AQUA ASIN AQUA Net w w w.asekopool.com...
