PRODUCT INTRODUCTION 1.1 THANK YOU FOR PURCHASING SMACO PRODUCTS The manual is prepared for the operators of SMACO air compressor “HEAP 1”. The basic operations of the air compressor are introduced herein. Please read the manual carefully before using the machine to guarantee correct and proper usage.
Page 5: Warning
WARNING 2.1 Intended purpose The product is intended for no purposes other than ﬁlling compressed air 2.2 Disassembling is prohibited Disassembling may result in failures or electric shocks. Except for those parts that can be disassem- bled, it’s not allowed to disassemble any other part. Please contact us immediately if any failure is found.
Page 6: Precautions
PRECAUTIONS 3.1 Overheating • The recommended air inflation period is less than 30 minutes otherwise the internal parts may be damaged as a result of overheating. • Please turn off the machine immediately after air inflation is ﬁnished, and make the cooling fan work for 2 –...
Page 7: List Of Accessories
LIST OF ACCESSORIES 05 07 04 06 08 NAME OF PARTS QUANTITY ×1 Oil-water separator ×1 360° air inflation extension pipe ×1 7mm hexagon wrench ×1 6mm hexagon wrench ×1 5mm hexagon wrench ×1 3mm hexagon wrench ×1 2.5mm hexagon wrench ×1 2mm hexagon wrench ×2...
Page 8: Product Structures And Their Names

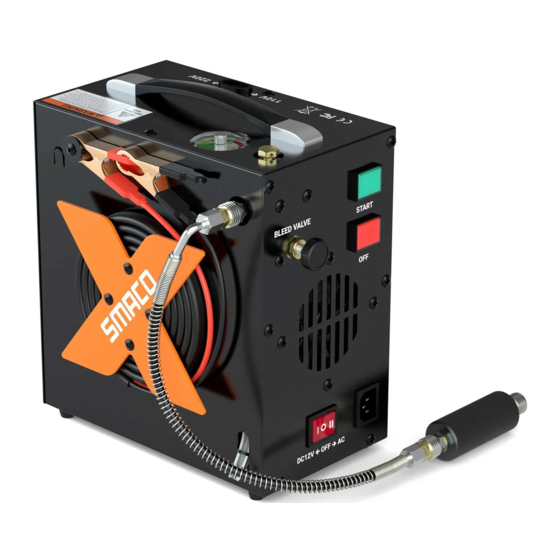

PRODUCT STRUCTURES AND THEIR NAMES PART NAME 360° air inflation extension pipe Vehicle power supply alligator clip Wire spool Pressure Gauge 8mm air inflation inlet Start button Stop button Pressure relief valve Thermovent Power cable port Power switch Blow vent Explosion-proof valve Plastic handle Voltage shifter dust cover...
Page 9: Operation Instructions Of Household Power Supply
OPERATION INSTRUCTIONS OF HOUSEHOLD POWER SUPPLY First of all, make the voltage of the machine consistent with local supply voltage (1). And correctly connect the power cable and plug the power plug (2). Loosen the pressure relief valve (1), and correctly connect the 360° air inflation extension pipe of the oil-water separator to the object to be inflated (2).
Page 10 OPERATION INSTRUCTIONS OF HOUSEHOLD POWER SUPPLY Turn on the power switch (“II” position) (1), when the sound of the cooling fan is heard, press the start button to start the machine (2). After everything is normal, tighten the pressure relief valve (3), and wait for the completion of air inflation.
Page 11: Operation Instructions Of Vehicle Power Supply
OPERATION INSTRUCTIONS OF VEHICLE POWER SUPPLY First of all, ensure the power switch of the machine is off (“O” position) (1), and loosen the pressure relief valve (2). Take out the vehicle power supply alligator clip from the wire spool to connect the positive and negative poles correctly (1).
Page 12 OPERATION INSTRUCTIONS OF VEHICLE POWER SUPPLY Turn on the power switch (“I” position) (1), when the sound of the cooling fan is heard, press the start button to start the machine (2). After everything is normal, tighten the pressure relief valve (3), and wait for the completion of air inflation.
Page 13: Common Problem Handling
COMMON PROBLEM HANDLING The explosion-proof valve will relieve pressure if the safe pressure is exceeded. The anti-explosion diaphragm should be replaced with a new one at the moment. The schematic diagram below helps you know the replacement: Unscrew the anti-explosion nut by rotating it counterclockwise;...
Page 14: Analysis And Troubleshooting Of Common Failures
Analysis and troubleshooting of common failures Failures Analysis of causes Troubleshooting The current voltage of the machine Open the voltage shifter is inconsistent with local supply dust cover at the top for voltage adjustment The machine does not work The power plug is not plugged Correctly connect to the power (household power properly...
Page 15: Disclaimer
DISCLAIMER Thank you for purchasing/using the SMACO HEAP 1 air compressor. The contents below concern your safety, legal rights, and duties. To protect the legitimate rights and interests of the users, please carefully read the user’s manual, legal disclaimer and precautions provided with this product before use. Shenzhen CP-Link Electronic Co., Ltd.
