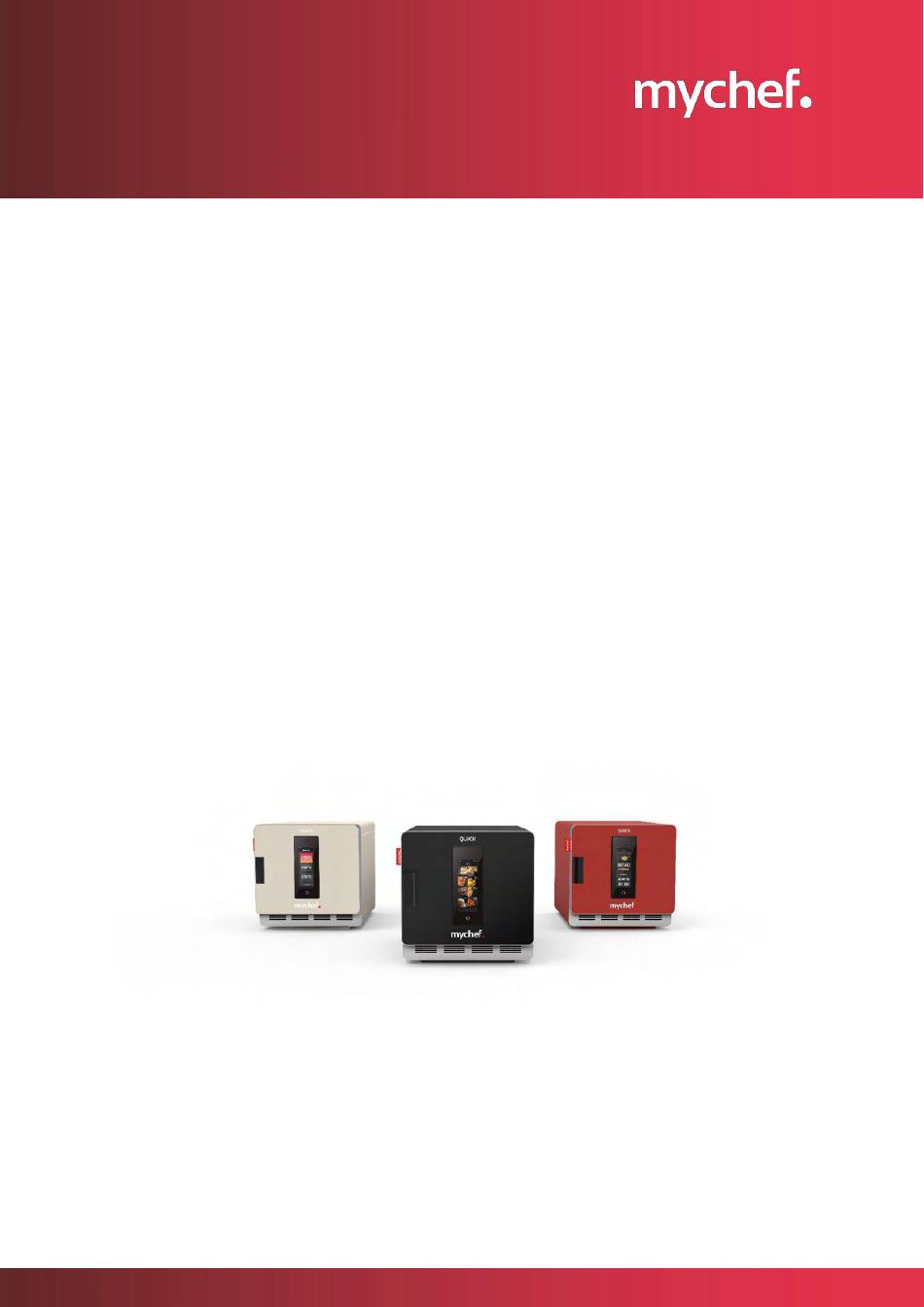

- Page 1 QUICK 1T Product Manual Installation, use and maintenance mychefcooking.com PRODUCT MANUAL QUICK 1T DT.MP. Q1T.2202.2...
-
Page 2: Table Of Contents
1.3. Thermal hazard......................4 1.4. Danger of corrosion ....................5 2. INTRODUCTION ..................... 6 3. TECHNICAL CHARACTERISTICS..............7 3.1. Main features of the Mychef QUICK 1T ..............7 4. RECEPTION, TRANSPORT AND LOCATION ............ 8 4.1. Reception ........................8 4.2. Transport ........................8 4.3. - Page 3 8.1.1. Suction and door gasket ................45 Aspiration ..................45 Door gasket .................. 46 8.1.2. Outer casing ....................47 8.1.3. Control panel ....................48 8.1.4. Cooling filter ....................48 8.1.5. Accessories ....................49 8.2. Preventive maintenance ..................49 PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
-
Page 4: General Safety And Accident Prevention Rules
Keep ventilation openings free of obstructions. Do not install the equipment in the vicinity of flammable products. Avoid positioning the oven near heat sources such as hobs, griddles, fryers, etc. Check the safety distances in section Positioning. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 5: Danger Of Corrosion
Always read the safety data sheet of the different chemical products before use and follow the instructions for use. These products in contact with any part of the body are abrasive and can cause skin and eye irritations and caustications. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 6: Introduction
The equipment is shipped from the factory once it has been calibrated and passed rigorous quality and safety tests to ensure its correct operation. The manufacturer shall disclaim any liability for problems caused by improper installation, modification, misuse, or improper maintenance. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 7: Technical Characteristics
(W x D x H) Capacity 31 x 31 x 18 cm Servings/Hour Table 1. Main characteristics of Mychef QUICK 1T ovens The A-weighted sound pressure level of Mychef ovens is less than 70dB (A). PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 8: Reception, Transport And Location
During transport, the oven must always be in an upright position. It must be lifted perpendicular to the floor and transported parallel to the floor. Make sure that it does not tip over during transport and that it does not hit any objects. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 9: Positioning
1 metre. Check that the oven is not exposed to hot air or fumes in the areas where the cooling fans are located. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... - Page 10 Under no circumstances obstruct the breathing zones or place any element that could hinder the air intake. Do not place any heat source that could heat up the cooling air. Once it is in place in the workspace, check that it is level. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
- Page 11 Be extremely careful with the cooling zones of the oven. If it draws in fumes or hot air, this can drastically reduce the life span of the components. For the installation of stacked Mychef ovens, please follow the instructions supplied with the stacking kit.
-
Page 12: Installation
Check that the voltage at the point where the oven is to be connected coincides with the operating voltage of the equipment. The following table indicates the electrical characteristics of each of the devices: Cable cross-section Voltage Power (kW) Current (A) QUICK 1T EU 230/L/50-60 2,50 QUICK 1T UK 230/L/50-60 2,50 Table 2. Electrical connection characteristics Before carrying out any electrical work, make sure that there is no electrical current at the connection point of the equipment. -
Page 13: Single-Phase Connection 230V L+N
Never connect a phase to neutral or earth. Check that the voltages of the installation correspond to those of the equipment. The following sub-chapters show the possible connection types for Mychef ovens. The voltage of each oven can be found on the oven identification sticker. - Page 14 Make sure you have performed a CoolDown completely to handle the plates. The catalytic filter is an accessory. Everything not required for installation is included in the filter installation kit. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
-
Page 15: Initial Configuration
6. INITIAL CONFIGURATION 6.1. Mychef QUICK 1T start up This short instruction is intended to explain the steps to follow to start the Mychef QUICK 1T oven for the first time. Switch on the oven. Then the main menu will appear where you can configure the device. -
Page 16: Mychef Quick 1T Configuration
This section describes the operations necessary for the correct configuration of the Mychef oven. Some of the functions have access rights, so it will only be possible to access them by entering a password. The oven configuration can always be modified from the main menu. -
Page 17: Date/Time
6.2.1. Date/Time To set the date and time, press or select the buttons and adjust. To exit, press the back arrow and the settings will be saved. Figure 8. Date/time settings PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 18: Language
To change the language, navigate between the available languages by pressing the arrows, and select the desired language. To exit, press the back arrow and the setting will be saved. Figure 9. Language settings PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 19: Sound
For example, the end of cooking or an alarm. The setting also allows the sound to be muted. Figure 10. Sound configuration PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 20: Temperatures
The temperature band option allows the oven to work within ±50º to speed up the preheating or cooling process of the chamber so that recipes with different temperatures can be compatible. The temperature band parameter can be modified in 10º increments from 0º-50º. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 21: System
In case the update has not been performed correctly, check that the file system of the USB is FAT32, that the downloaded file is the latest version that appears on the Mychef website, and that the USB is placed correctly. - Page 22 Figure 13. Update verification PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
-
Page 23: Restore Factory Defaults
6.2.6. Restore factory defaults To do this, click on the Restore values button. The restore will start automatically. Figure 14. Restore to factory defaults When restoring to the original settings, all saved recipes and settings are deleted. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 24: Usb
Figure 15. Upload/download USB files To perform data logging, insert a memory stick into the USB connector, located in the door. The access point is located at the bottom of the door. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... - Page 25 Figure 16. USB memory access The USB device system must always be FAT32. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
-
Page 26: Metric System
The oven configuration allows you to work in both the international system of measurements and the Anglo-Saxon system. By selecting one of the two options and pressing the back button, the configuration will be saved, and the system will be restored. Figure 17. Metric system configuration PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 27: Consumption
In this section it is possible to consult the data corresponding to the energy consumption of the oven and the hours of operation of the oven. Figure 18. Consumption data This option allows to consult data related to the user of the oven and the Technical Assistance Service. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 28: Errors And Alarms
Short-circuited chamber probe. Check probe and SHORTED wiring. 29.XXXX INVERTER ERROR Reserved Table 4. Errors, alarms and possible solutions Check whether the errors can be eliminated by your own means, or if not, contact your technical service. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 29: Use
7. USE This section will give an overview of the basic functions and all the information necessary for the correct use of the user interface of the Mychef QUICK 1T oven. 7.1. Switching on the equipment The equipment is switched on or off by pressing the circular button (START/STOP) for a few seconds. -
Page 30: Main Menu
To return to the initial menu, select the back key in the upper left corner and enter the user's password: 357. Figure 20. Main menu display Figure 21. Header functions Current date Current time Back. Return to the previous screen Drop-down menu PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 31: Cooking
If it is necessary to change the working temperature, select the arrow in the top left-hand corner to return to the temperature selection menu. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... - Page 32 In the recipes menu we can open a drop-down menu, in the top right-hand corner, where we can filter the recipes that the oven has: By temperature compatibility Time recipes Favorites Groups of recipes PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
- Page 33 Figure 24. Recipe filter PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
-
Page 34: Routine Scheduler
If the "Turn off time" is activated, a progress bar with a message to cancel the shutdown, or to turn it off, will appear two minutes earlier. If only "Turn on time" is activated, the oven will not perform any action. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 35: Save Recipes
7.2.3. Save Recipes The Mychef QUICK oven allows the user to store up to 1024 recipes. Figure 26. Recipes’ menu To create a recipe, the temperature, time, and fan speed parameters must be configured. We can also name the recipe and add an image which can be loaded from a USB stick (Section 6.2.7). - Page 36 The fan speed and temperature will always be the same within a MultiCook recipe and will be the same as those selected for the first food. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
- Page 37 There is also the possibility to create groups of recipes, so that the user can sort them by breakfast, lunch, or dinner recipes. Each group of recipes can be identified by a name of the user's choice and group up to 12 recipes. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
- Page 38 In the Counter section of the recipe menu, you can find a list with the number of times a recipe has been executed. To reset the values to zero, select the Reset option at the bottom of the screen. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
- Page 39 Figure 31. Recipe’s counter PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com...
-
Page 40: Cooking
Cooking ends when the cooking time has finished. At the end of a cooking cycle, the appliance indicates this status visually and acoustically. In particular: An acoustic signal is emitted. The cooking finished message appears on the display. Figure 32. Cooking process PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 41: Cooking Multicook Recipes
The system will notify the user via the display when each basket must be removed at the end of cooking. Cooking will stop when the door is opened. When closing the door, the process will resume. Figure 33. MultiCook cooking process PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 42: Recipe Information
7.3.3. Recipe information In the cooking menu, by clicking continuously on the image of each recipe, the recipe parameters are displayed, whether it is a simple recipe or a MultiCook recipe. Figure 34. Recipe information PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 43: Mycare
The MyCare will end when the oven chamber reaches a temperature of 50°. The chamber can then be cleaned or disassembled for further cleaning. Figure 35. MyCare PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 44: Maintenance
Door gasket Daily Equipment envelope Daily Removable inner plates Daily Table 5. Cleaning frequencies for Mychef QUICK 1T oven Before starting any cleaning programme, trays, racks, grids, or other accessories inside the chamber must be removed. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2... -
Page 45: Suction And Door Gasket
Next, the side plates (C) are removed from inside the chamber. First unscrew the screws (B) on both the right and left sides. Once removed, the plates are removed by sliding them outwards. Figure 37. Removal of screws and lateral plates PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 46: Door Gasket
The door gasket should not be removed from its contour for cleaning but should only be removed when it needs to be replaced. To remove the plate containing the weatherstrip, pull it upwards and then outwards so that it comes out of the guide. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 47: Outer Casing
The catalytic filter must not be put in the dishwasher under any circumstances, nor must any solvents, detergents, etc. be used. When all the parts have been cleaned, they must be dried completely and Mychef high speed oven protection liquid must be applied. -
Page 48: Control Panel
Never use the oven without the cooling filter in place. Cleaning the oven with a pressure washer is harmful to the equipment and could lead to breakage of the oven and will void the warranty of the equipment. PRODUCT MANUAL QUICK 1T DT.MP.Q1T.2202.2 mychefcooking.com... -
Page 49: Accessories
These periodic inspections must be carried out by an authorized service technician. The following table shows the operations to be carried out on Mychef ovens in each of the revisions. The table is circular, and after 20,000h of use or 10 years of use, the time would start to count again from the left of the table. - Page 50 Mychef maintenance programme 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 Firmware update Cleaning cooling fans Revision A Electronic cleaning Weatherstripping replacement and door adjustment Temperature calibration Revision B Adjustment of the inner bolts and nuts Engine change...
