P a g e
| 1

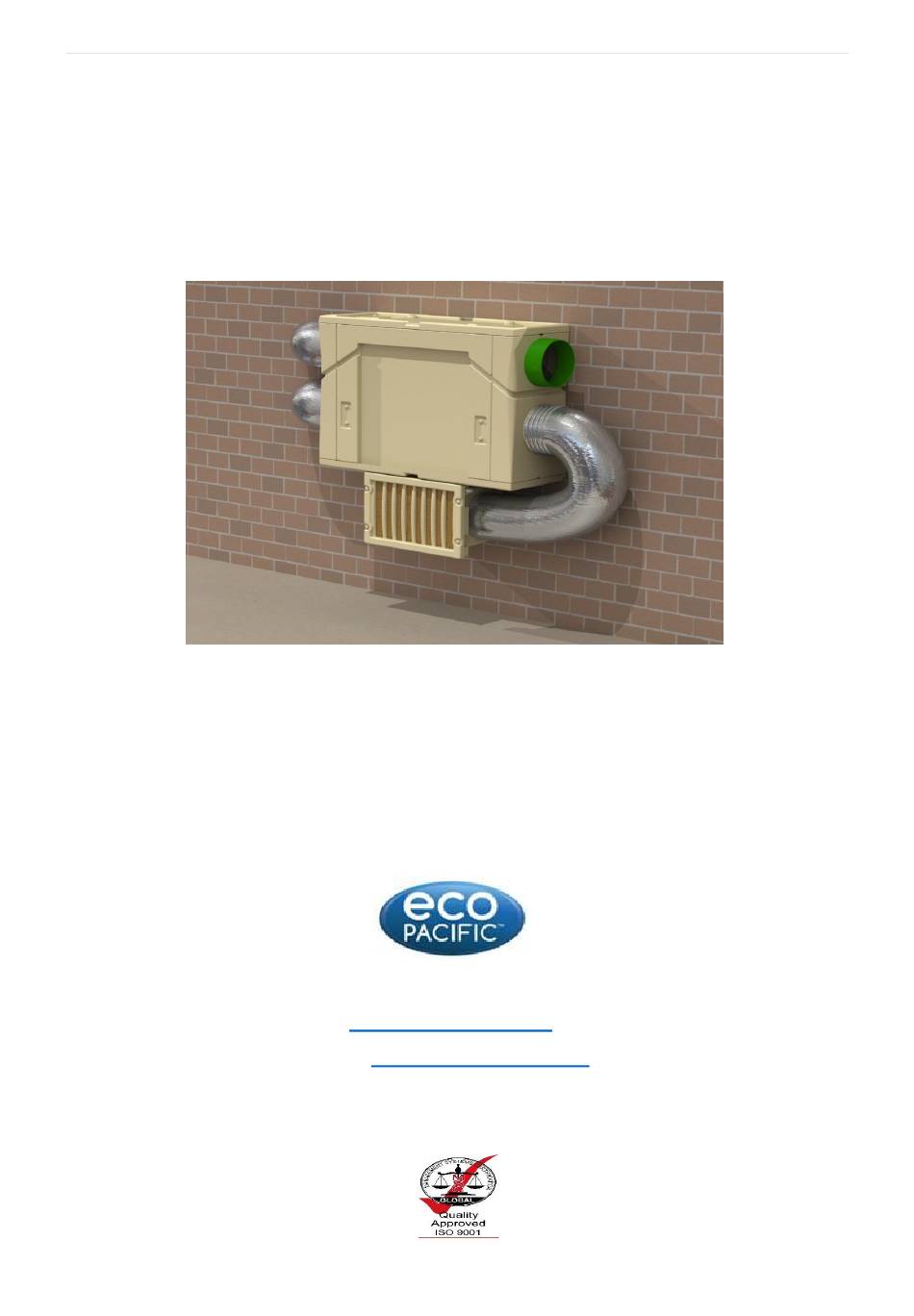

IOS MANUAL
Installation, Operation, and Service Instructions
Fresh Filtered Air Ventilators with Efficient Heat/Cool Recovery from Indoor Air
Models: AussiVent / EcoVent/ FreshVent
Please read these instructions prior to installation
Manufactured by Eco Pacific Pty. Ltd., Australia
www.ecopacific.com.au
Email:
sales@ecopacific.com.au
Tel: +61-3-9706 6228 or 1300ecopac
Version10- March 2017
Eco Pacific Pty Ltd
Advertisement
Table of Contents
Summary of Contents for Eco Pacific AussiVent
- Page 1 Installation, Operation, and Service Instructions Fresh Filtered Air Ventilators with Efficient Heat/Cool Recovery from Indoor Air Models: AussiVent / EcoVent/ FreshVent Please read these instructions prior to installation Manufactured by Eco Pacific Pty. Ltd., Australia www.ecopacific.com.au Email: sales@ecopacific.com.au Tel: +61-3-9706 6228 or 1300ecopac...
- Page 2 INTRODUCTION The purpose of this guide is to give the installer and service / maintenance personnel a quick reference to general information they must know when installing the ECO PACIFIC HRV. This publication is designed to help the installer. The guide consists of: •...
-
Page 3: Heat Exchanger
1.2 HEAT EXCHANGER The Eco Pacific Heat Exchanger has been tested to ASHRAE 84 standard for Air -To - Air Heat/ Energy Exchange, by Australia’s NATA accredited test lab, VIPAC Engineers and Scientists, for thermal performance and pressure drop (Report ref.30S-15-0158-TRP- 392476-1-2016). -
Page 4: Filter Box
40 - 50 Pa • Nominal thickness: 20 mm • Final Air resistance: 200 Pa • Maximum average temperature: 120 Deg C • Average dust arrestance: 90% to dust test #4. • Colour: White Version10- March 2017 Eco Pacific Pty Ltd... -
Page 5: Wall Controllers
AV120, EV120, and FV120 provide air flows of 120 l/s at 100 Pa ESP. Note the Filter Sensor is fitted to the standard switch to operate the AussiVent and FreshVent models, however the EcoVent is operated by an Optional Wall Controller. -
Page 6: Contractor's Responsibilities
LOCAL HEALTH AND SAFETY REGULATIONS • Local plumbing and drainage codes • Local wiring codes and rules for electrical connections (refer to HRV electrical wiring requirement shown on specification plate on the cabinet). Version10- March 2017 Eco Pacific Pty Ltd... - Page 7 Flexi/solid ducts are recommended for the Return Air from indoor to the unit. Inlet outlet collar sizes for ducting AussiVent and EcoVent models AV80, AV120, EV80, and EV120 are fitted with 6 inch collars for fresh air intake, fresh air supply, indoor air intake, and indoor air exhaust.
- Page 8 Use the M5 bolts 2 each side on the wall brackets Put the HRV on the bracket, slide it through and fasten it on to the brackets using two M5 bolts each side threading from the bottom into the nut-serts of the HRV. Version10- March 2017 Eco Pacific Pty Ltd...
-
Page 9: Service Clearances
The ducting should be connected with return to return and supply to supply of both- the HRV and the heating /cooling appliance. The installer has to make sure the ducts are harnessed tight onto the collars using duct tapes. Version10- March 2017 Eco Pacific Pty Ltd... - Page 10 FreshVent units. Refer to the separate Fresh Vent Installation, Start Up and Service Instruction Manual for more detailed information on the FreshVent HRV. Illustration 8: Typical Cold Room Installation of FreshVent HRV Version10- March 2017 Eco Pacific Pty Ltd...
-
Page 11: Direction Of Air Flow
The HRV is attached securely to the bracket, and the bracket is fastened to the hard floor, roof, or wall or on a hard stand. Make sure the filter is connected and all ducts are well harnessed on the collars with duct tape. Version10- March 2017 Eco Pacific Pty Ltd... - Page 12 P a g e | 12 Illustration 8: Wiring diagram for AussiVent and FreshVent models with AV fans Version10- March 2017 Eco Pacific Pty Ltd...
- Page 13 Model name • Model Number • Serial number • Installer’s full name • Installer’s mobile number • Dealer / Contractor company name address and telephone number • Installation date • Installer’s and Customers signatures Version10- March 2017 Eco Pacific Pty Ltd...
- Page 14 P a g e | 14 Illustration 9 wiring diagram for EcoVent with AV fans Version10- March 2017 Eco Pacific Pty Ltd...
-
Page 15: Troubleshooting
5. Wall Controller is not working WARRANTY • The Eco Pacific ventilator units are covered with a Parts Only Warranty for 12 months from the date of delivery to the customer. • The Parts Only Warranty covers defective components that include fan motors, and defective HRV and Filter Box. - Page 16 Lift the side panels slightly above the base and pull out this end panel gently. See the following view of the EcoVent with transformer and relays to separate 240 V from left side to 24 V in the right-hand side terminal block. The AussiVent and FreshVent models have a simple 240 V standard circuit.
- Page 17 | 17 Illustration 12: Filter side power and wall controller connections for motor, and the H/X Illustration 13: Base screws- 2 at each end to separate the side panels to service the motors Version10- March 2017 Eco Pacific Pty Ltd...
-
Page 18: Warranty
Warranty may not cover faults caused by a faulty installation or maintenance not in accordance with the recommended ECO PACIFIC maintenance schedule. Eco Pacific Pty Ltd reserves the right to void the Warranty where the agreed payment terms have not been met.
