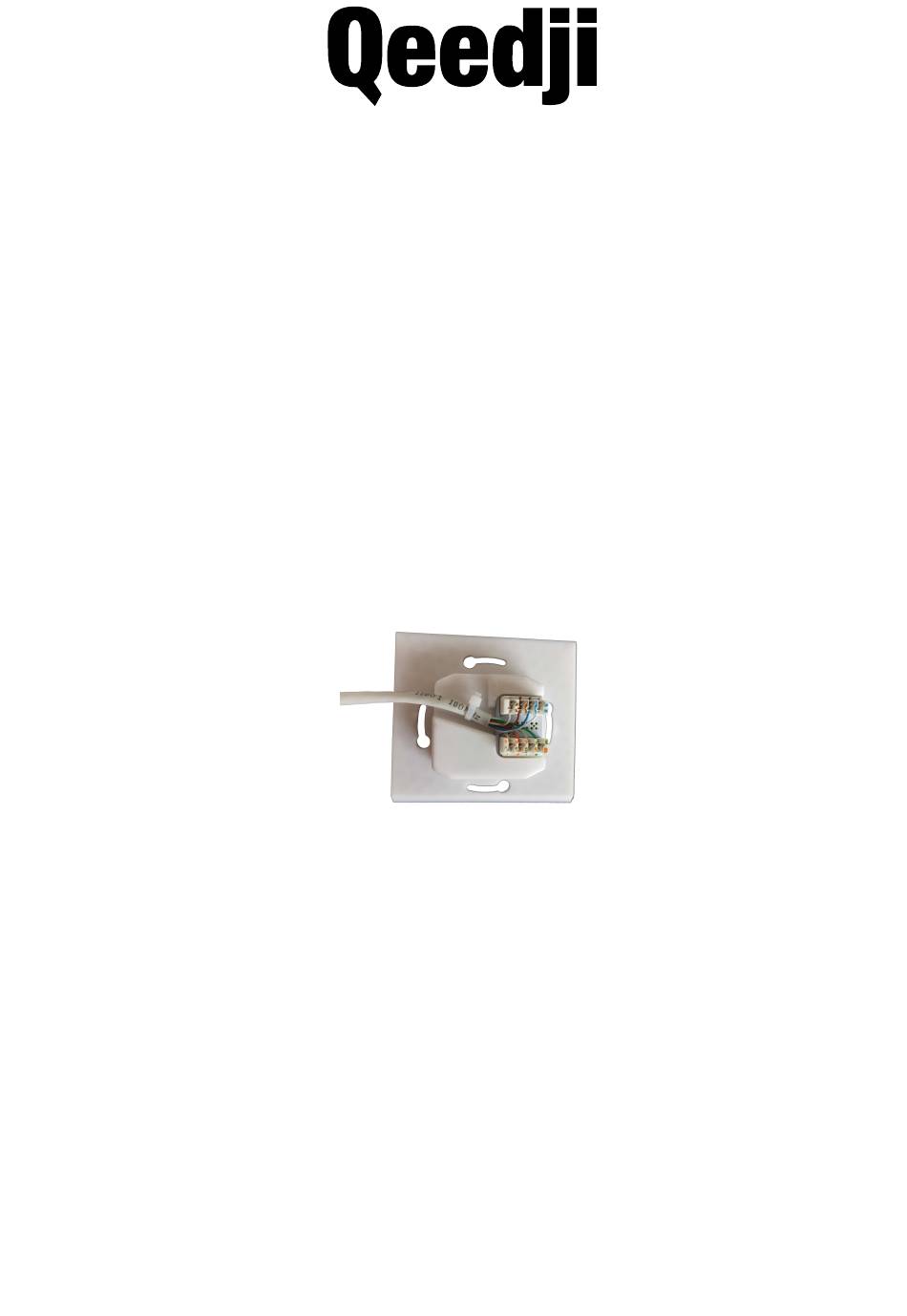

- Page 1 User manual NAPOE109kt 1.10.12 002B...
- Page 2 Product information Product design and specifications are subject to change at any time and `Qeedji` reserves the right to modify them without notice. This includes the hardware, the embedded software and this manual, which should be considered as a general guide to the product. The accessories supplied with the product may differ slightly from those described in this manual, depending on the developments of the various suppliers.
-
Page 3: Table Of Contents
Table of contents Part I : Description and installation Introduction Faces Device dimensions Labelling Connectors KRONE connector crimping Diagnostic test Device fixture Device uninstallation KRONE connector removing 1.10 KRONE connector insertion 1.11 Part II : Technical information Technical specifications Conformities Part III : Contacts Contacts Part IV : Appendix... -
Page 4: Part I : Description And Installation
Description and installation Part I... -
Page 5: Introduction
1.1 Introduction The NAPOE109kt device is a dual role data Ethernet to TAB10s adapter. Once connected to a Ethernet cable supporting PoE, it can provide power supply and IP network connectivity to a TAB10s device. The NAPOE109kt device is intended to be crimped through a KRONE connector, on an Ethernet multi-stranded cable supporting PoE IEEE802.3af (5E category minimum) then to be fixed inside a wall flush-mounted box. -
Page 6: Faces
POGO connector or on the USB-C connector, holes to host screws to lock the TAB10s device on the NAPOE109kt device, holes to fix the device on the wall flush-mounted box. - Page 7 bevelled support to hang the TAB10s device. removable KRONE connector , ring to tighten the Ethernet multi-stranded cable, Rear face with the KRONE connector: Rear face without the KRONE connector: ☛ The crimping procedure is explained in the chapter § KRONE connector crimping.
-
Page 8: Device Dimensions
1.3 Device dimensions... -
Page 9: Labelling
The model of the device, the power supply characteristics, the serial number (PSN) and the MAC address are written on a label stuck on the case. ☛ The QR code on the product label is corresponding to the product identification URL, for example: i.qeedji.tech?model=NAPOE109kt&sn=01400-00001&mac.lan1=00-1C-E6-02-52-64 ☛ FCC certification in pending. -
Page 10: Connectors
1.5 Connectors KRONE connector The KRONE connector needs to be crimped on a Ethernet multi-stranded cable. For further information, refer to the chapter § KRONE connector crimping. Dipswitch In the default factory configuration, the dipswitch is configured in mode nominal In the nominal mode, are supported over the electric pad of the POGO connector,... - Page 11 USB-C connector ☛ The USB-C connector is reserved for future use. POGO connector The electric pad of the POGO connector support data and power delivery. This is the POGO connector pinout. Information DATA- DATA+...
-
Page 12: Krone Connector Crimping
1.6 KRONE connector crimping The NAPOE109kt device is hosting a KRONE connector which has to be crimped by a qualified person on a Ethernet multi-stranded cable supporting PoE IEEE802.3af (5E category minimum). ☛ The NAPOE109kt device is delivered straight from factory with the KRONE connector already plugged on the device. - Page 13 The provided cable clamp needs to be tightened over the cable jacket using the ring on the top face. So before crimping the wires, ◬ ensure that the cable jacket extremity is as close as possible to the KRONE connector .
-
Page 14: Diagnostic Test
To test the power connectivity, set the dipswitch position to the left in the diagnostic mode activating the LED lightening. If the power red LED is ON and steady, The KRONE connector is properly crimped on a PoE RJ45 cable. Consequently and the NAPOE109kt device is powered properly. - Page 15 After power unplug/replug or immediately after the dipswitch is turned from right to left. Connectivity On for 250 ms then off The NAPOE109kt device is powered properly and crimped¹ on the PoE cable supporting test network data. Connectivity blinking Blinking²...
-
Page 16: Device Fixture
(130 - 9.2) = 120.8 cm (47,24 ") far from the floor. ☛ The wall flush-mounted box must have a sufficient volume to host the NAPOE109kt device. The distance between the screws must be 60 mm (2.362 "). - Page 17 ◬ Add the provided serrated washers to the screws of the wall flush-mounted box. Stand the NAPOE109kt device properly in front of the wall flush-mounted box. Tighten back now the left and right screw on the wall flush-mounted box. Once tightened, by using a levelling rod, double check that the upper edge of the NAPOE109kt device is strickly horizontal.
- Page 18 The TAB10s device can be then hung properly on the NAPOE109kt device. For further information, refer to the TAB10s user manual.
-
Page 19: Device Uninstallation
1.9 Device uninstallation For further information, refer to the chapter § KRONE connector removing. ☛ In case you had to install the device in another location, you have to uncrimp the current KRONE connector from the Ethernet multi-stranded cable. For further information, refer to the chapter § KRONE connector crimping. -
Page 20: Krone Connector Removing
1.10 KRONE connector removing To remove the KRONE connector: stand the device with the electric pads of the POGO connector facing the bottom like explained and hold the device with your hand, hold the KRONE connector with your other hand and remove it vertically... -
Page 21: Krone Connector Insertion
1.11 KRONE connector insertion To insert the KRONE connector: stand the device with the electric pads of the POGO connector to the bottom like explained and hold it with your hand, hold the KRONE connector with your other hand and turn it in the right sense (round corners turned towards the clamping ring and insert it vertically When it is properly installed, the KRONE connector is completely stuck on device case... -
Page 22: Part Ii : Technical Information
Technical information Part II... -
Page 23: Technical Specifications
2.1 Technical specifications Model Manufacturer NAPOE109kt Qeedji Power supply Information PoE IEEE802.3af POE power supply input: ES1 / PS2 (48 V DC – 0.27 A max) Network Other information KRONE connector 10/100/1000 Base T Data Information POGO connector USB 2.0... -
Page 24: Conformities
2.2 Conformities EUROPE In conformity with the following European directives: LVD 2014/35/EU EMC 2014/30/EU RED 2014/53/EU... -
Page 25: Contacts
Contacts Part III... - Page 26 3.1 Contacts For further information, please contact us: Technical support: support@qeedji.tech, Sales department: sales@qeedji.tech. Refer to the Web site for FAQ, application notes, and software downloads: https://www.qeedji.tech/ Qeedji Qeedji FRANCE INNES SA 5A rue Pierre Joseph Colin 35700 RENNES...
-
Page 27: Part Iv : Appendix
Appendix Part IV... -
Page 28: Appendix: Type B Or Type A Rj45 Cable Pin Out
4.1 Appendix: Type B or type A RJ45 cable PIN out Type B (T568B) RJ45 connector PIN out: wire color white + orange orange white + green blue white + blue green white + brown brown Type A (T568A) RJ45 connector PIN out: wire color white + green green...
