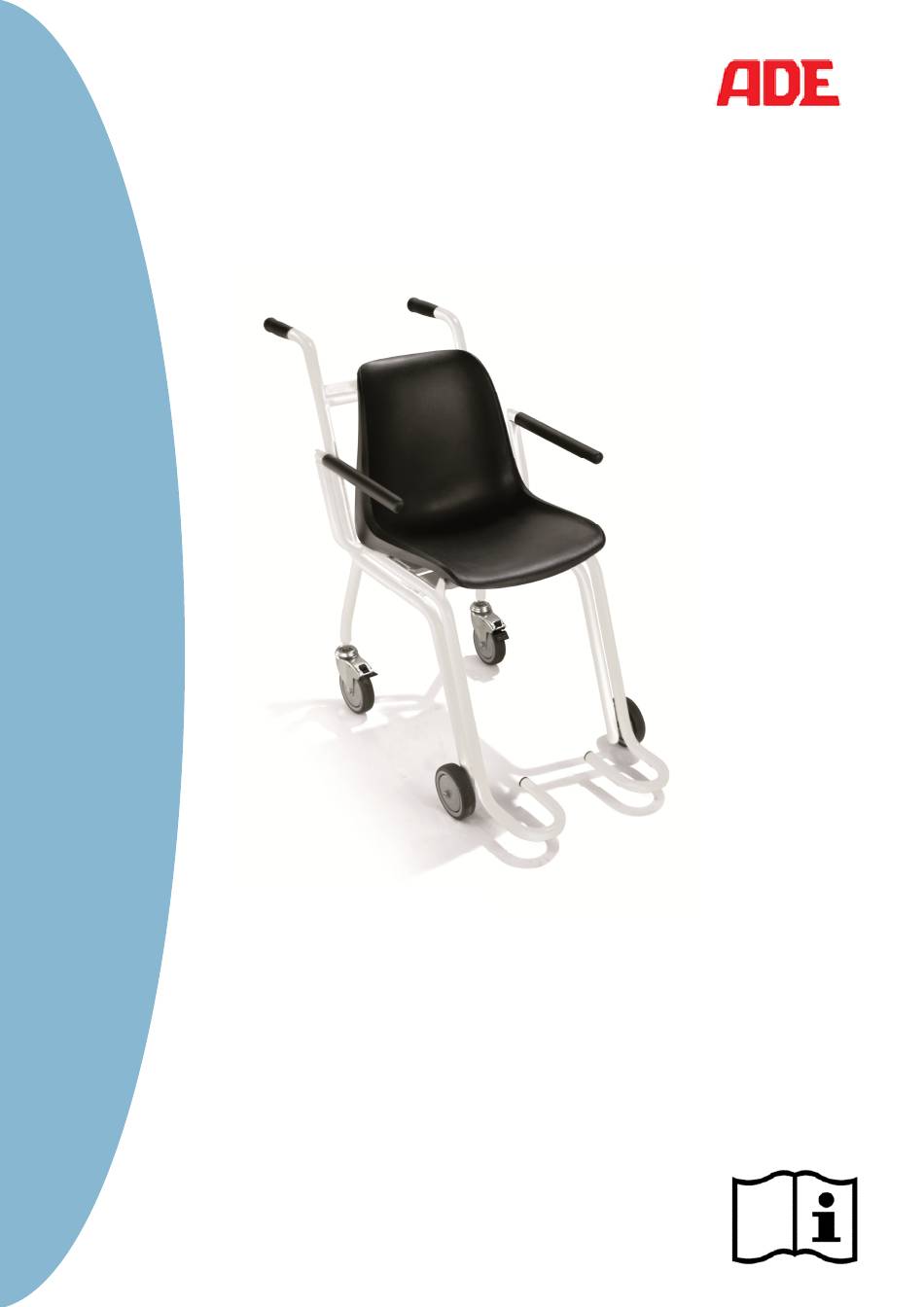

- Page 1 Operating Manual International Range Electronic Chair Scales M400660 M400660-120516-Rev002-UM-e M400660-210326-Rev005-UM-de...
-
Page 2: Table Of Contents
Error Messages ........................8 Cleaning and Maintenance ........................9 Cleaning ..........................9 Storage and Transport ......................9 Warranty – Liability ......................9 Technical data ............................10 CE-marking and Declaration of Conformity ................... 11 Declaration of CE Conformity ................... 11 M400660-210326-Rev005-UM-e... -
Page 3: Introduction
Your ADE electronic chair-scale is a quality, sturdy and durable product manufactured in accordance with national regulations in Germany. ADE instruction manuals have been prepared to provide the user with all the necessary knowledge about the safe use of ADE scales and their related accessory equipment. -
Page 4: Assembly And Set Up
ADE or official appointed dealers. Assembly and set up The ADE chair scale is already been delivered in a fully assembled condition. Please insure that your scale is being placed free of any vibration and at a dry place. -
Page 5: Replacing The Rechargeable Battery
2) Remove the battery cables carefully from the housing, connect the wires and insert the battery into the housing. 3) Close the battery compartment again. Only use original rechargeable batteries and charger units from ADE. The warranty does not cover any damage caused by using other types of batteries or charger units. Display... -
Page 6: Key Pad
During operation this key is being used to switch between the displayed figures. In BMI mode use this key to switch between the numbers downwards. In BMI mode use this key to switch between the numbers upwards. Enter button to confirm the value. M400660-210326-Rev005-UM-e... -
Page 7: Operation
Enter the tare button again to get of the tare mode. The tare value is likewise erased by the scale until pressing the tare button or being switched off. M400660-210326-Rev005-UM-e... -
Page 8: Weighing With Preset Tare Values
The patient is slightly overweighed to pre-obese. A reduction of weight is indicated or, is necessary if the state of health is already affected (e.g. diabetes, high end blood pressure, heart diseases). BMI over 30 Reduction of weight is imperative. To visit a doctor is highly recommended. M400660-210326-Rev005-UM-e... -
Page 9: Connecting Additional Devices
Connecting additional devices Connection of printer, PC or remote-display will be done with the RS-232 interface. For connection of additional devices kindly ask your local representative or authorized ADE dealer for further instructions. Print out a record The scales must be at standstill. The standstill status symbol must appear at the screen. -
Page 10: Cleaning And Maintenance
Disconnect all cables before transport and avoid unnecessary damages. Warranty – Liability ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts –... -
Page 11: Technical Data
Working temperature: -10°C to 40°C Storage temperature: -20°C to 70°C Humidity: 10 to 90% RH without condensation Voltage: 5Vdc Max. Current: 60mA (can power 4-350 ohm bridge, take care the limitation when USB is power supply) Serial port: Full-duplex RS232 M400660-210326-Rev005-UM-e... -
Page 12: Ce-Marking And Declaration Of Conformity
CE-marking and Declaration of Conformity ADE products are manufactured as per the standards applicable of the actual European norms and directives to produce and offer world-wide products at the latest technical standard and with a long lifetime. Declaration of CE Conformity Declaration of conformity by the manufacturer These scales have been manufactured in accordance with the harmonised European standards. - Page 13 M400660-210326-Rev005-UM-e...
- Page 14 M400660-210326-Rev005-UM-e...
- Page 15 M400660-210326-Rev005-UM-e...
- Page 16 Dealer: M400660-210326-Rev005-UM-e...
