Summary of Contents for Presidential Billiards PIERCE

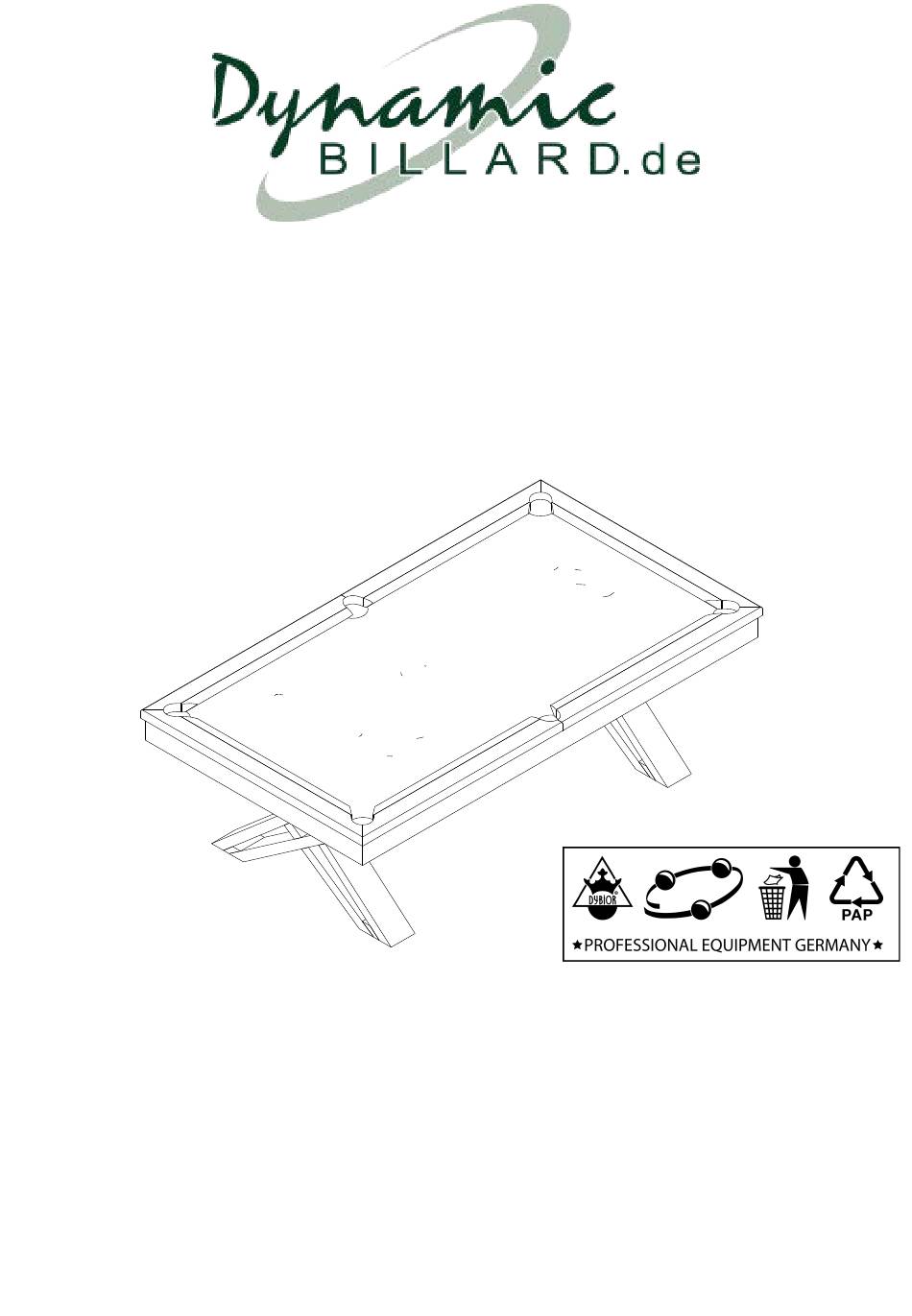

- Page 1 PIERCE PIERCE TABLE ASSEMBLY INSTRUCTIONS AUFBAUANLEITUNG...
- Page 2 PIERCE HARDWARE ITEM# SAMPLE DESCRIPTION QTY. PACKAGE HEX HEAD CROSS BOLT 3/8" 1-3/8"(M10X35mm) FLAT WASHER 3/8" I.D. HEX HEAD CROSS BOLT 5/16" 3-1/8"(M8X80mm) FLAT WASHER 5/16" I.D. FLAT HEAD SCREW 1/4" X 2"(M6X50mm) STUD BOLT 5/16" X 5-1/2"( M8X140mm STUD BOLT 5/16"...
- Page 3 PIERCE COMPONENT PARTS QTY. PACKAGE ITEM# SAMPLE DESCRIPTION CABINET LONG WOODEN BLOCK SHORT WOODEN BLOCK SIDE APRON END APRON APRON JOINT CORNER BLOCK TOP RAIL LEFT SIDE TOP RAIL RIGHT SIDE TOP RAIL END SIDE POCKET CORNER POCKET SLATE (LEFT)
- Page 4 PIERCE COMPONENT PARTS QTY. PACKAGE ITEM# SAMPLE DESCRIPTION WOOD JOINT Page 3...
- Page 5 FIG.1 FIG.2 Page 4...
- Page 6 FIG.3 FIG.4 Install the rails according to WOOD JOINT the numbers printed on backside of rails. Page 5...
- Page 7 FIG.5 CLOTH * GLUE THE CLOTH TO THE SLATE Finish Page 6...
